Payment & Shipping Terms:
|Product Name:||Movable Partition Wall||Drawing:||Free|
|Warranty:||3-5 Years||Thiackness:||65 Mm|

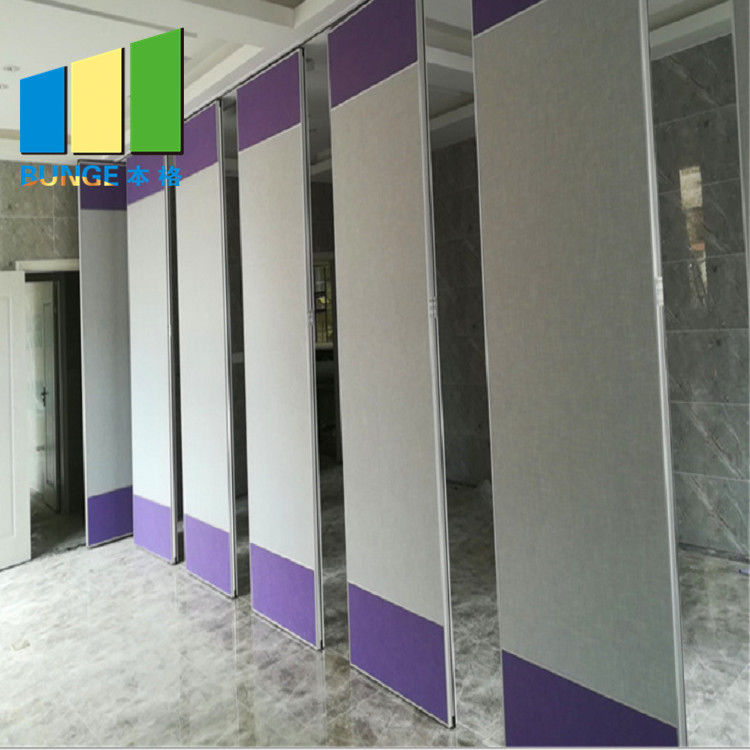

With Retractable Seal Wood Insulated Room Dividers Movable Partition Walls
Movable and operable soundproof partition system for modern living spaces Rooms of different types and usage can be divided, reduced in size, enlarged, have their proportions modified and thus be adapted on demand to the different number of people using them. From the small conference room to the large exhibition hall. This flexibility generates a special atmosphere, characterized by creative aesthetics and enhanced by a wide range of surface materials and finishes.
movable and operable partition system
Tiange movable and operable partition system thickness is 65mm, it can be double or single piece, and can be designed U shape or Lshape door. every panel can board 225kgs weight. The top and bottom flex range is 22.5mm.
movable and operable partition system usage range
1) Movable and operable partition system is modernized decoration style. It can separate the space speedly and conveniently. And it has sound insulation and heat insulation and fireproof function.
2) Movable and operable partition system is made from high density frame, special made rubber, excellent sound insulation cotton and finish board etc. the finish board is flat and hard.
3) The finish board is inserted in the aluminum track, assembled with multi direction wheels; the board can be stored in may different ways on movable and operable partition system.
4) It doesn’t need track on the floor, we only hang the track on the ceilings and it can be at the same plane with the ceiling decoration. It won’t affect the whole decoration style on movable and operable partition system.
5) Around the board ,there is sound insulation rubber, it can help to insulate the sound entering.
6) We can add single or double doors on the board for convenience on movable and operable partition system
7) We have many different finish to meet customer different requirement and get different decoration effect.
The soecial point processing on movable and operable partition system
The principle of double skin construction on movable and operable partition system is applied consistently in the seal area in order to ensure maximum sound insulation. A spindle mechanism presses extendable, spring loaded, double seals against the fl oor and the ceiling track. Any irregularities in the fl ooring are offset by spring-loaded double chamber seals. The contact force of the sealing strips does not place excessive strain on screed fl oors, but does ensure that the movable wall system is sufficiently stable to prevent the panels moving, even in the event of an attempted forced entry.
|Panel suspension||Top hung only||Top hung only||Top hung only|
|Panel width||500-1200 mm||500-1200 mm||500-1200 mm|
|Face material||9mm||9mm||12 mm|
|Passdoors||Single door or Double door|
|Sound insulation||28-38dB Rw||28-42dB Rw||32-50dB Rw|
|Finish Material||Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc.(Customized)|
