America Operable Sliding Movable Partitions Acoustic Partition Walls For Banquet Hall
Product Details:
| Place of Origin: | Guangzhou, China |
| Brand Name: | EBUNGE |
| Certification: | ISO 9001 |
| Model Number: | 85 mm acoustic partition walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | No MOQ, small quantity welcome |
|---|---|
| Price: | $82-98 per square meter. |
| Packaging Details: | Paper carton, outside with wooden box. |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50000 square meters per month |
|
Detail Information |
|||
| Product Name: | Acoustic Partition Walls | Application: | Banquet Hall Partitions |
|---|---|---|---|
| Material: | MDF + Aluminum | Based Board: | MDF Or Plywood |
| Warranty: | 5 Years | Color: | Optional |
| High Light: | acoustic operable wall,movable acoustic partition walls |
||
Product Description

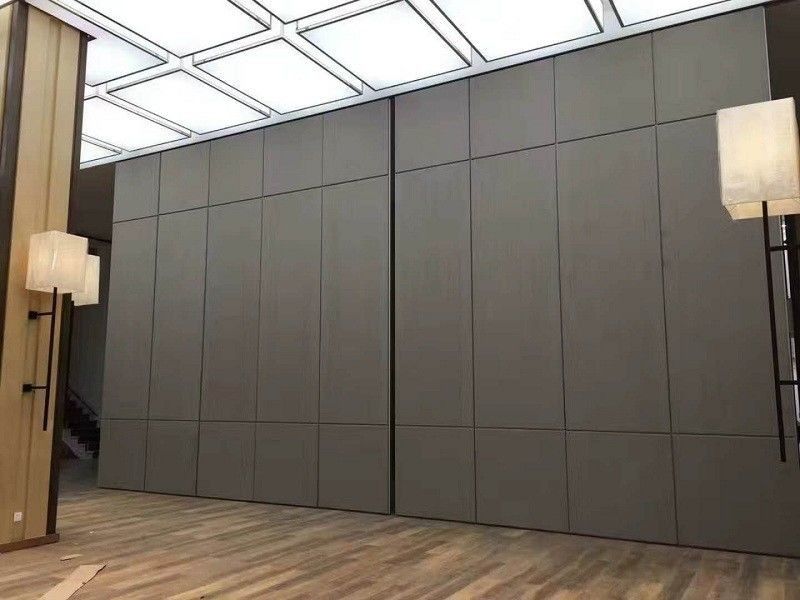

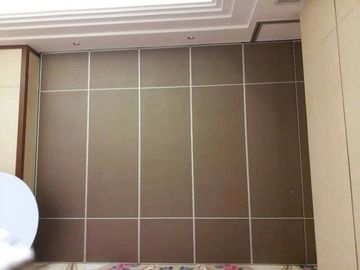

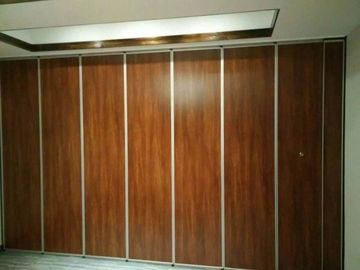

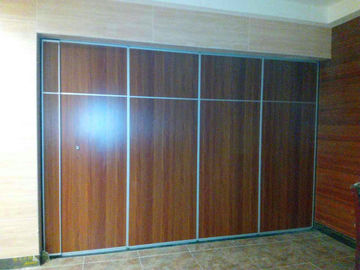

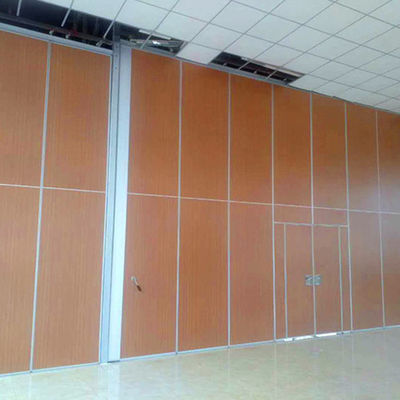

America Operable Sliding Movable Partitions Acoustic Partition Walls for Banquet Hall
Acoustic partition walls details
Acoustic partition walls, the flexible space configuration, with little effort rooms can be partitioned, made smaller or larger to suit individual requirements, from conference rooms, school classrooms to large exhibition halls.
Options include single or double inset pass doors, glazing panels, virtually unlimited track arrangements and surface finishes, with melamine probably being the most popular.
The best door for maximum acoustic performance, with variable options on sound reduction from 32 dB (Rw) to 53 dB(Rw).
Also available with 30 and 60 minute fire resistance.
The acoustic partition wall is of manual operstaed system.
Technical information
| Model | BG65 | BG85 | BG100 |
| Suspension System | Hanging System, with ceiling rails | ||
| Basic Thickness | 65mm | 85mm | 100mm |
| Max Height | Max 3800mm | Max 6000mm | Max 8000mm |
| Width | 800 -1230mm | ||
| Floor/ceiling Sealing strength |
Telescopic aluminum tube with rubber strip | ||
| Side Walls Sealing Strength |
Double seal tape | ||
| Base Board Thickness | 9 mm | 9 mm | 12 mm |
| Vertical Profiles | Aluminum anodised with sealing profiles | ||
| Retractable Seals | Aluminum black with double rubber seals | ||
| Operation | Manual System, with supplied operating handle | ||
| Pass Doors | Single or Double Pass Through Door Available | ||
| Weight | Approx 22-35 kg/m² | Approx 25-40 kg/m² | Approx30-48 kg/m² |
| Finish Options | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) | ||
Acoustic partition walls features
1. No need floor suspension: There is no track on the floor, just install the track on the ceiling;
2. Stable and safe: The acoustic partition wall is stable and reliable after being cut off, and it is not easy to swing;
3. Soundproof and environmental protection: Sound insulation effect is good, the maximum sound insulation coefficient can reach 53 dB;
4. Insulation and energy conservation: Excellent insulation performance, according to different seating rates, the large space is divided into small spaces to reduce the air conditioning power consumption;
5.High-efficiency fire prevention: The use of high-efficiency fireproof materials, good fireproof performance;
6. Convenient collection: When closing, the acoustic partition walls can be hidden in a dedicated storage cabinet, which does not affect the overall appearance.
