Banquet Hall Partition Movable Walls Sliding Folding Acoustic Partition Walls
Product Details:
| Place of Origin: | Guangzhou, China |
| Brand Name: | EBUNGE |
| Certification: | ISO 9001 |
| Model Number: | 85 mm acoustic partition walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | No MOQ, small quantity welcome |
|---|---|
| Price: | $82-98 per square meter. |
| Packaging Details: | Paper carton, outside with wooden box. |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50000 square meters per month |
|
Detail Information |
|||
| Product Name: | Acoustic Partition Walls | Application: | Banquet Hall Partitions |
|---|---|---|---|
| Service: | OEM Or ODM | Finishing: | Melamine,fabric,leather |
| Size: | Partition Walls Customized | Function: | Sliding Folding Partitions |
| High Light: | acoustic operable partitions,movable acoustic partition walls |
||
Product Description
Banquet Hall Partition Movable Walls Sliding Folding Acoustic Partition Walls
Acoustic partition walls details
Acoustic partition wall also is also called movable acoustic wall. It can separate the space into several small spaces or turn several small spaces into big space according to your different need. Moreover, it’s flexible sliding combination bring you a special experience.
Panels:The acoustic partition walls panels will be made from 12mm MDF boards and shall be 100mm thick and 1230mm maximum width, made to the appropriate acoustic rating and structural backing and mounted in full perimeter extruded aluminium frames with interlocking corner construction .The acoustic partition walls panel faces shall be finished with selected material.
Seals: vinyl seal of butane rubber will be used as top and bottom and as well as closure seals for the operable wall system. Retractable seal drop will be 23mm.
Technical information
| Model | BG65 | BG85 | BG100 |
| Suspension System | Hanging System, with ceiling rails | ||
| Basic Thickness | 65mm | 85mm | 100mm |
| Max Height | Max 3800mm | Max 6000mm | Max 8000mm |
| Width | 800 -1230mm | ||
| Floor/ceiling Sealing strength | Telescopic aluminum tube with rubber strip | ||
| Side Walls Sealing Strength | Double seal tape | ||
| Base Board Thickness | 9 mm | 9 mm | 12 mm |
| Vertical Profiles | Aluminum anodised with sealing profiles | ||
| Retractable Seals | Aluminum black with double rubber seals | ||
| Operation | Manual System, with supplied operating handle | ||
| Pass Doors | Single or Double Pass Through Door Available | ||
| Weight | Approx 22-35 kg/m² | Approx 25-40 kg/m² | Approx30-48 kg/m² |
| Finish Options | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) | ||
Packaging and delivery
Packing details is Carton package, MDF batten on four section sides ,foam board on both front face.For special surface, like glass partition wall we can get wooden boxes packing for you.
Sea transport is a common mode of transportation.In an emergency, can be air freight.
Application:

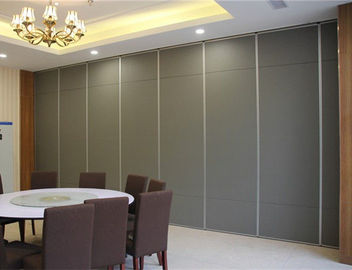

Acoustic partition walls systems are designed to suit the modern, working world’s demands for flexibility and versatility. Banquet hall acoustic partition walls are used to create flexible working space in many industry areas including, offices, hotels, theaters, schools, churches, conference centers and many other buildings and environments.
