|Product Name:||Sliding Partition Walls||Application:||Function Room Partitions|
|Size:||Partition Walls Customized||Color:||Accept Customized|

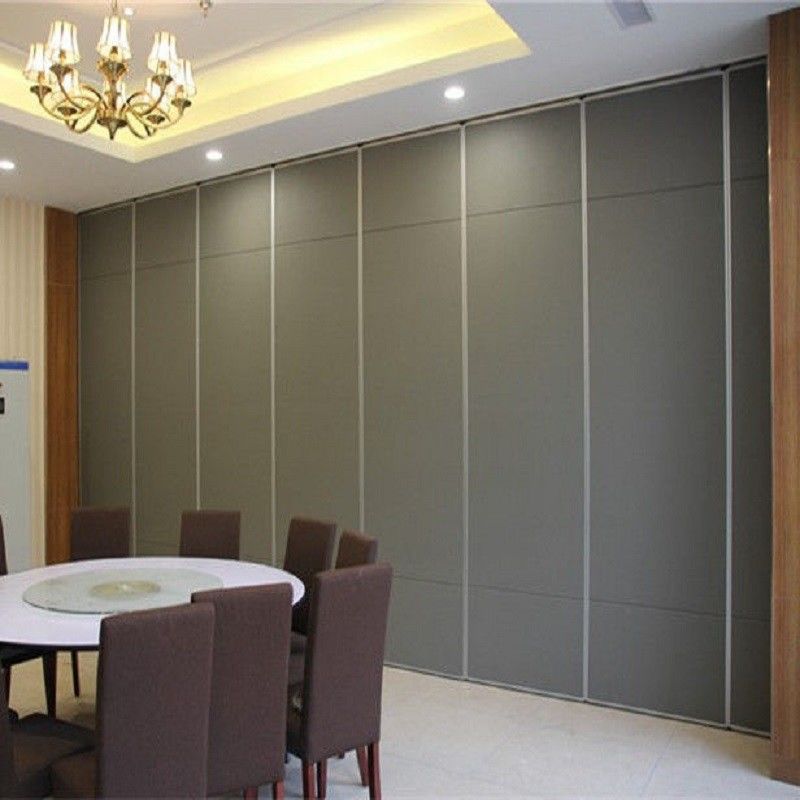

Aluminum Frame Banquet Hall Sliding Partition Walls for Soundproof Movable Walls
Sliding partition walls details
Sliding partition wall is our top of the range operable walls. The system offers several layouts and stacking arrangements to create many useful areas within the working space.
Sliding partition walls are solid acoustic sliding partitions available in three varying thicknesses and laboratory tested sound rating up to Rw 53dB. This system is top hung. Each panel is individually supported by a track system mounted on the ceiling. No floor track is required.
To create the seal, each sliding partition walls panel has interlocking vertical profiles and retractable rubber seals. A handle inserted into the vertical edge of each panel operates the retractable seals. One half turn of the handle operates a mechanism inside the panel that moves the seal against the floor and against the track.
In most cases the last panel has a telescopic leading edge with a rubber seal operated with a handle inserted into the face of the panel. This sliding partition walls panel will close and seal the whole system. An option is also available for semi electric seal operation.
Face finishes available as standard are a wide choice of plain or wood grain melamine, real wood veneers, vinyl’s or spray painted. Doors can be inset into all sliding partition walls and can meet Disabled Door Access regulations if required. Glazing can also be incorporated into the panels.
Sliding partition walls advantages
The sliding partition walls system is relatively simple to install, can be reused multiple times, and is easy to disassemble. The office cubicle is often a kind of green environmental protection material, and will not bring waste to the environment. In the long run, compartment materials are often more environmentally friendly, cheaper, and more cost-effective.
The interior of the sliding partition walls compartment material can be arranged with wires and cables, which makes maintenance and replacement of the wires easier, and strong and weak electrical separation. The dismantling of materials in offices and other compartments is easy to disassemble and reduce the cost of disassemble and assembly. The materials are often relatively smooth, and the cleaning is relatively simple and not easy to dirty.
3. Function diversification
In the internal removal of materials, glass, color plate, metal can achieve the function of fireproof and fireproof. sealing strips inside the inner frame guarantee good sound insulation. If a low-level sealing strip is installed, it can achieve quite good sealing and sound insulation.
4.A variety of materials
Can choose colorful steel plate, gypsum board, fire board, cloth velvet, melamine board, glass, stainless steel, wood and so on. Multiple materials have multiple benefits and can also be combined with each other. A variety of materials are available in a wide range of colors, which can be combined with different materials and colors to reflect both functions and artistic atmosphere.
Various compartment door locks can be installed in the middle to facilitate the use of stainless steel door locks often need to install the upper or bottom, inconvenient to use. Partition installation is quiet, does not affect people's working life, and has little noise. The partition compartment is elegant, concise, sophisticated and entertaining.
|Panel suspension||Top hung only||Top hung only||Top hung only|
|Panel thickness||65 mm||85 mm||100 mm|
|Max height||4000 mm||6000 mm||18000 mm|
|Panel width||500-1200 mm||500-1200 mm||500-1200 mm|
|Face material||9 mm||9 mm||12 mm|
|Pass doors||Single door or Double door|
|Sound insulation||20-32dB Rw||28-36dB Rw||32-50dB Rw|
|Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized)|
