Aluminum Alloy Folding Acoustic Movable Partition Walls For Restaurant , Hotel , Banquet Hall
Product Details:
| Place of Origin: | Guangzhou, China |
| Brand Name: | EBUNGE |
| Certification: | ISO 9001 |
| Model Number: | 65 mm movable partition walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | No MOQ, small quantity welcome |
|---|---|
| Price: | $82-98 per square meter. |
| Packaging Details: | Paper carton, outside with wooden box. |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50000 square meters per month |
|
Detail Information |
|||
| Product Name: | Movable Partition Walls | Application: | Hotel Partition Walls |
|---|---|---|---|
| Material: | MDF + Aluminum | Style: | Sliding And Folding |
| Size: | Partition Walls Customized | Color: | Optional |
| High Light: | movable walls on wheels,acoustic movable walls |
||
Product Description

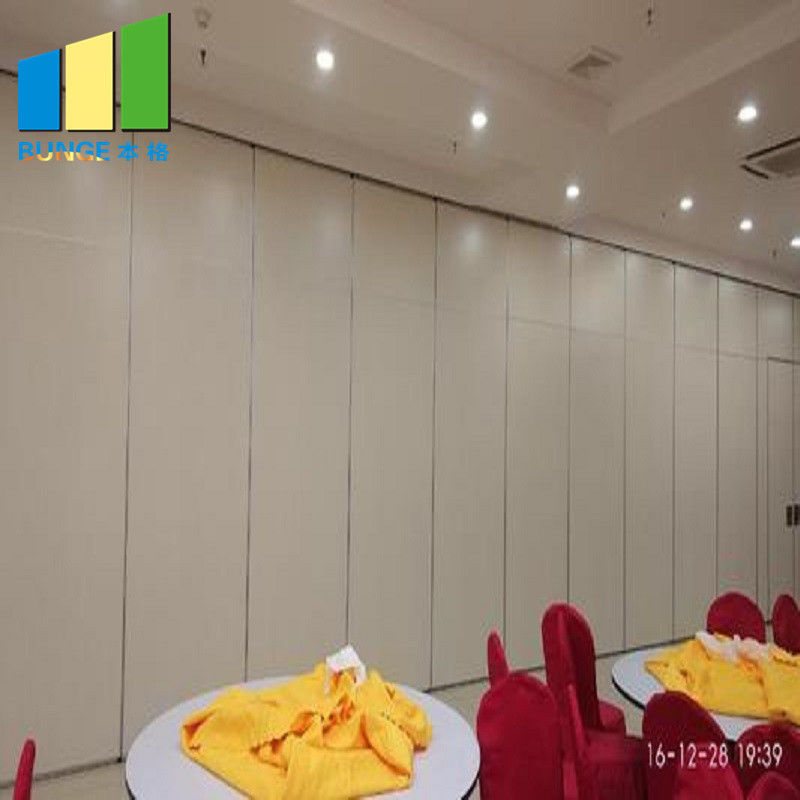

Aluminum Alloy Folding Acoustic Movable Partition Walls for Restaurant, Hotel, Banquet Hall
Movable partition walls details
Movable Partition Walls, the flexible space configuration, with little effort rooms can be partitioned, made smaller or larger to suit individual requirements, from conference rooms, school classrooms to large exhibition halls.
Options include single or double inset pass doors, glazing panels, virtually unlimited track arrangements and surface finishes, with melamine probably being the most popular.
The best door for maximum acoustic performance, with variable options on sound reduction from 32 dB (Rw) to 53 dB(Rw).
The surfaces are also available with 30 and 60 minute fire resistance.
Manual operation with a handle.
Movable partition walls features
1.The movable partition wall is very convenient to be able to expand or reduce it according to different needs.
2.Preservation and storage are appropriate and convenient.
3.The sound insulation is good, not only the sound insulation, but also the heat insulation.
4.The usual movable partition walls, its design is relatively fashionable. So, be able to put it anywhere. Can also play a certain beautification role.
5.The stability of the movable partition walls is strong. It is not easy to offset the position.
Technical information
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65mm | 80mm / 85mm | 100mm |
| Panel height | Up to 4000mm | Up to 6000mm | Up to 18000mm |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
| Frame construction | Aluminum frame | Aluminum frame | Aluminum frame |
| Face material | 9mm | 9mm / 12mm | 12mm |
| Fire safety | Optional Class I or O | Optional Class I or O | Optional Class I or O |
| Vertical profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles |
| Retractable seals | Aluminum black with double rubber seals |
Aluminum black with double rubber seals | Aluminum black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle |
Manual, with supplied operating handle | Manual, with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass doors | Single open in panel or double open in two panel |
Single open in panel or double open in two panel | Single open in panel or double open in two panel |
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx30-48kg/sq M |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) | ||
Movable partition walls application
Ease of operation, acoustic performance and pleasing aesthetics are combined in it to create movable partition walls that maximize spatial versatility in offices, conference and meeting rooms, training areas, educational establishments, hotels and banqueting suites.
