Customized Office Aluminum Soundproof Removable Wood Folding Partition Wall Board
Product Details:
| Place of Origin: | China |
| Brand Name: | Bunge |
| Model Number: | 65 mm Movable Partition |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Square Meters |
|---|---|
| Price: | USD 75-95/ Square Meter |
| Packaging Details: | Carton package , Paper package |
| Delivery Time: | 10 working days after received your down payment |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 5,000 Square Meters per Month |
|
Detail Information |
|||
| Product Name: | Movable Partition Wall | Advantage: | Sliding ,movable |
|---|---|---|---|
| Height: | Up To 4000 Mm | Material: | Wooden |
| Sample: | Free | Surface: | Melamine,mdf,fabric,leather |
| High Light: | movable walls on wheels,acoustic movable walls |
||
Product Description
Customized Office Aluminum Soundproof Removable Wood Folding Partition Wall Board

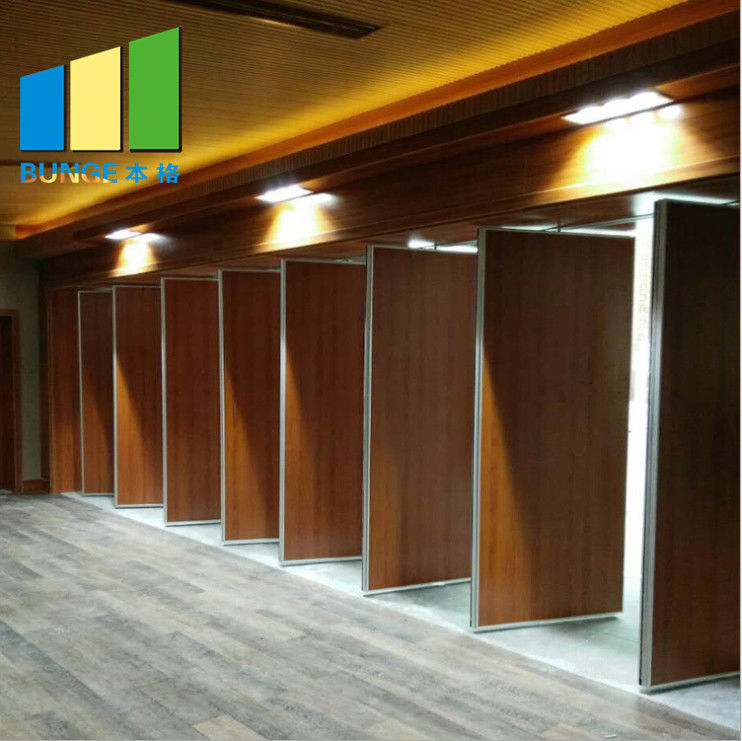

Sliding Partition Wall is aluminum frame wall panel with soundproof material and inner transmission mechanism filling,used for space division for different space reqirement. It is top hung system without the track on floor.
Different face is available like Wooden Veneer,Woven Fabric,Acoustic Fiber and Vinyl,Etc. We can also custom-made the face as your design.
The operable wall series is the highest specification range of fully operable ,individual – panel partition system .Acoustic insulation of up to 55 db noise reduction is achieved with a combination of operable top and bottom seals, high performance multiple infills and a panelassembly design that allows an acoustic break between the frame and outer layer ,The vertical channels of each panel incorporate polymer inserts that facilitate an acoustic seal when the panels are set out as a wall. Panels are produced in four thiknesses ,65mm.85mm,100mm,125mm,depending on acoustic rating (from 32db – 55db )
Feature and benefits
- Movable, top hung system without the need for a floor track
- Retractable top and bottom seals ensure effortless movement of panels
- Combines elegance with robust construction
- Concealed or exposed panel edge profiles
- Numerous panel stacking options for complete flexibility
- Sealed for life roller assemblies provide smooth and silent movement
- Various levels of sound reduction
| Series | BG 65 | BG 85 | BG100 |
| Panel supension | Top hung only | Top hung only | Top hung only |
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Max height | 4000 mm | 6000 mm | 8000 mm |
| Panel width | 600-1230 mm | 600-1230 mm | 600-1230 mm |
| Face material | 9 mm | 9 mm | 9 mm |
| Pass doors | Single Door or Double Door | ||
| Sound insulation | 20 – 32 db | 28 – 36 db | 32 – 50 db |
| Finish Material | Plywood / MDF /Laminate / Melamine / Gypsum | ||
| Board / Fabric / Insulation / Fireproof /Wall Paper /Vinyl /Painting /etc,(Customized) | |||
We offer:
- A full professional design service as your shop drawings
- Using top quality materials and components
- Survey and installation guide
- A rich experienced work team
- Maintenance contracts- to ensure your valuable asset remains in good condition
Our Advantage
Our easy lock-up set.
Retractable pressure seals on top and bottom are extended and retracted by a single 180°turn removable operating handle.
Telescopic sleeve panel.
Final closure of the wall is achieved by extending a telescopic sleeve on the last panel. The sweep strip simultaneously extends the top and bottom. The rubber sealing strip on the side edge of telescopic panelcan seal the wall tightly to reach acoustic integrity.
