New Design Banquet Hall Soundproof MDF Material Room Divider Folding Movable Partition Walls
Product Details:
| Place of Origin: | China (mainland) |
| Brand Name: | EBUNGE |
| Model Number: | 65 mm movable partition wall |
Payment & Shipping Terms:
| Minimum Order Quantity: | No MOQ |
|---|---|
| Price: | US$82-118 per square meter |
| Packaging Details: | Carton package, MDF batten on four section sides, foam board on both front face. |
| Delivery Time: | 10-20 days |
| Supply Ability: | T/T, L/C, D/A, D/P |
|
Detail Information |
|||
| Product Name: | Movable Partition Wall | Material: | Aluminium Frame And Wood |
|---|---|---|---|
| Color: | Customized | Size: | Customized |
| Thickness: | 65MM | Application: | Space Divider |
| Height: | Max 4 Meter | Feature: | Space Saving,Water-proof&air-proof&sound Isolation&heat Isolation |
| Service: | ODM & OEM | Finish: | MDF Melamine,fabric,pu Leather,wallpaper |
| High Light: | movable partitions systems,acoustic movable walls |
||
Product Description

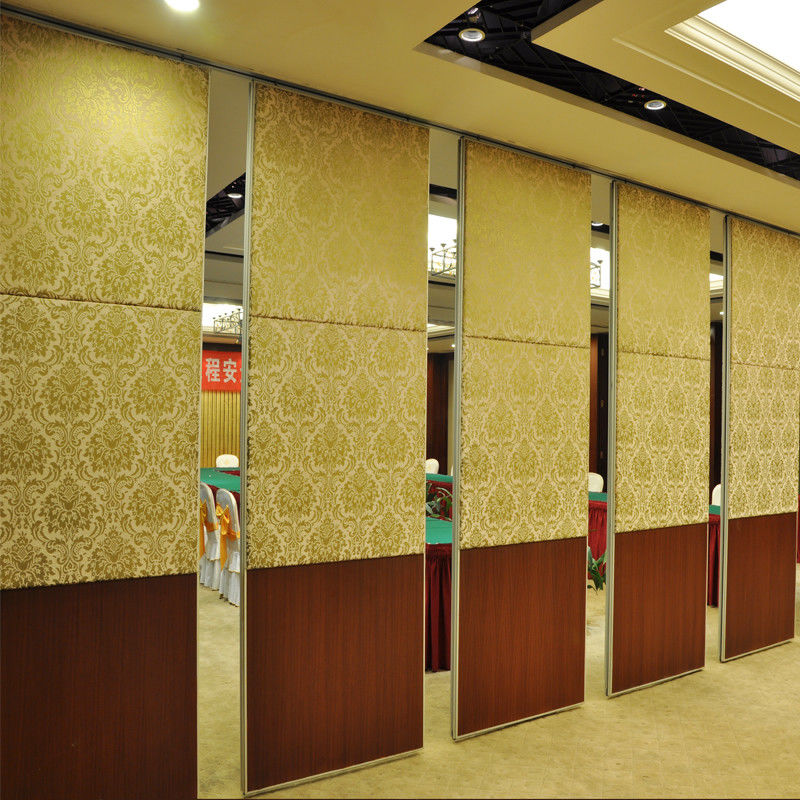

Dinning Hall Hotel Restaurant Soundproof Folding movable partition wall
Product Description
Now people are getting more and more detailed about the division of space. Different areas of the house have different functions. At this time, it is necessary to separate and divide different spaces. The traditional way of dividing is to use partition walls. Now many families are flexible in space. The requirements are higher, so the moving partition wall came into being.
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | ||
| Panel thickness | 65mm | 85mm | 100mm |
| Max height | 4000mm | 6000mm | 8000mm |
| Panel width | 600-1230mm | ||
| Face material | 9mm | 9mm | 12mm |
| Sound insulation | 20-32db RW | 30-38db RW | 35-45db RW |
| Weight | 20-30 kg/sq M | 22-35kg/sq M | 28-40kg/sq M |
| Track system | Single or two point | ||
| Frame construction | Aluminum frame | ||
| Finish materials | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) |
||
| Modernized Soundproof Movable partition features | |
| 1.Hanging on ceiling | The floor without a track, just put the rail mounted on the ceiling |
| 2.Excellent Quality | Each pieces of partition can turn around 360 degree. |
| 3.Stable and secure | After partition is stable and reliable, and is not easy to swing |
| 4.Energy efficient | The large space divided into a small space, in order to reduce air conditioning power consumption; |
| 5.Heatproof&fireproof | Good heat insulation performance, Adopt effective fire prevention materials |
| 6.Elegant appearance | Surface any adornment, can unite with indoor adornment effect |
| 7.Easy to collect | Can be hidden in the special coffer, does not affect the overall appearance |
| 8.Various applications | Hotels, exhibition halls, restaurants, multi-functional rooms etc. |
Components of Office Partition Walls:
Tracks: Made of good quality anodized aluminium 6063-T5 materials,hanging the office partition walls with wheels.
Wheels/Rollers: It is the carrier for the office partition walls ,let panels move more flexibly.Pulley bearing is more than 1600 KGS.
Connectors: Made of anodized aluminium 6063-T5 aluminum tracks,"L", "T", "+"types are available.
Rubber/vinyl seal: Made of Nitrile Butadiene Rubber(NBR+PVC),durable and perfect for sound insulation,wear-resistant.
Rock Wool: Density of 60kg/m3,help us reduce the noise and heat.
Handle: Operate the retractable being up and down.
Retractable mechanism: Control the movement of the top and bottom seal to form a excellent sound insulation performance.
Magnetic Strip: Ferrite plastic magnetic material will be used in between aluminum profiles to enhance acoustic performance of the office partition walls.
MDF board: 9 mm thickness,density of 760kg/m3,absorbent thickness expansion rate is less than 15%.Formaldehyde emission is 34mg/100g
