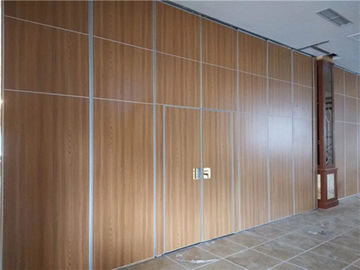

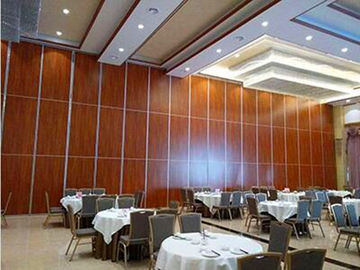

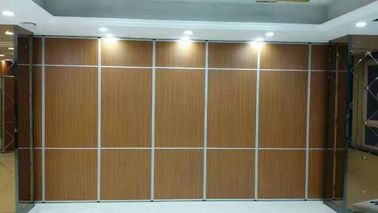

Panel Thickness 65 mm Sliding Aluminium Track Wooden Folding Partition Walls For Classroom
Product Details:
| Place of Origin: | China,Guangzhou |
| Brand Name: | BUNGE |
| Certification: | ISO9001 |
| Model Number: | Series 65 mm folding wall partition |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 square meters |
|---|---|
| Price: | 82 / 138 dollar per square meter |
| Packaging Details: | Carton package, MDF batten on four section sides ,foam board on both front face. |
| Delivery Time: | Shipped in 10 days after payment, based on the quantity. |
| Payment Terms: | D/A, D/P, L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 square meters per month |
|
Detail Information |
|||
| Product Name: | Folding Partition Wall | Panel Thickness: | 65 Mm |
|---|---|---|---|
| Panel Height: | Less Than 4 M | Width: | 800-1300 Mm |
| Finished: | Pu Leather,fabric,plywood,bare Finish | Application: | Classroom,office,conference Hall |
| Warranty: | 5-10 Years | Service: | OEM Service |
| Material: | MDF Board +aluminum Frame | ||
| High Light: | acoustic folding partition,soundproof folding partition |
||
Product Description
Thickness 65 mm Sliding Aluminium Track Wooden Folding Partition Wall for Classroom
Specification:
Folding wall partition is a kind of facility with very good sound insulation, because the number can indicate how good its sound insulation is, that is, its sound insulation coefficient can reach 53 dB. Not only that, but it also has very good environmental effects. We are now paying attention to environmental protection. Our environment needs everyone to protect it. Therefore, most people will choose and trust environmentally friendly products because they are not environmentally friendly. This is also very good for our body.
On the other hand it is that our partitions have a very good thermal insulation effect, which gives us the same effect as a solid wall. We can enjoy this product with great confidence, and it can make our life very convenient. The main purpose of the active partition is to divide a large space into a lot of small spaces, or to turn a small space into a large space. So it is just like an activity wall, it has a role of multi-purpose.
Feature:
Easy To move and soundproof
Thanks to the exclusive system: Polymer coated , self-lubricating, wear-resistant ball bearing trolleys.
Technical reliability
In its versions, range has undergone the most stringent endurance and mechanical resistance tests in laboratories or in own Test Center. 3-years warranty for parts and labour.
Quick to install
Tool locking of top and bottom rubber seals thanks to a manual system in each panel.
Surface
Melamine,plywood,acoustic fabric and leather.

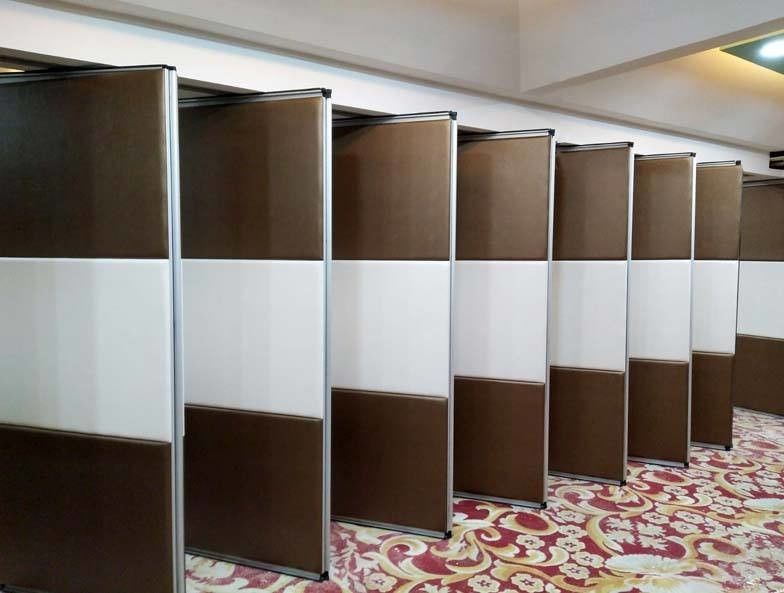

Folding partition wall operation:
When moving a wall panel there is a 22.5-25 mm gap between the top of the panel and the underside of the head track, there is a similar gap between the bottom of the panel and the floor.
Once a panel is positioned, acoustic integrity is maintained along the top and bottom of the panel by extending pressure seals.
The pressure seals are extended and retracted by a single 180°turn of a removable operating handle.
Final closure of the wall is achieved by extending a telescopic sleeve on the last panel. This action simultaneously extends the top and bottom seals.
Technical information:
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65mm | 80mm / 85mm | 100mm |
| Panel height | Up to 4000mm | Up to 6000mm | Up to 18000mm |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
| Frame construction | Aluminum frame | Aluminum frame | Aluminum frame |
| Face material | 9mm | 9mm / 12mm | 12mm |
| Fire safety | Optional Class I or O | Optional Class I or O | Optional Class I or O |
| Vertical profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles |
| Retractable seals | Aluminum black with double rubber seals |
Aluminum black with double rubber seals | Aluminum black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle |
Manual, with supplied operating handle | Manual, with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass doors | Single open in panel or double open in two panel |
Single open in panel or double open in two panel | Single open in panel or double open in two panel |
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx30-48kg/sq M |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) | ||
