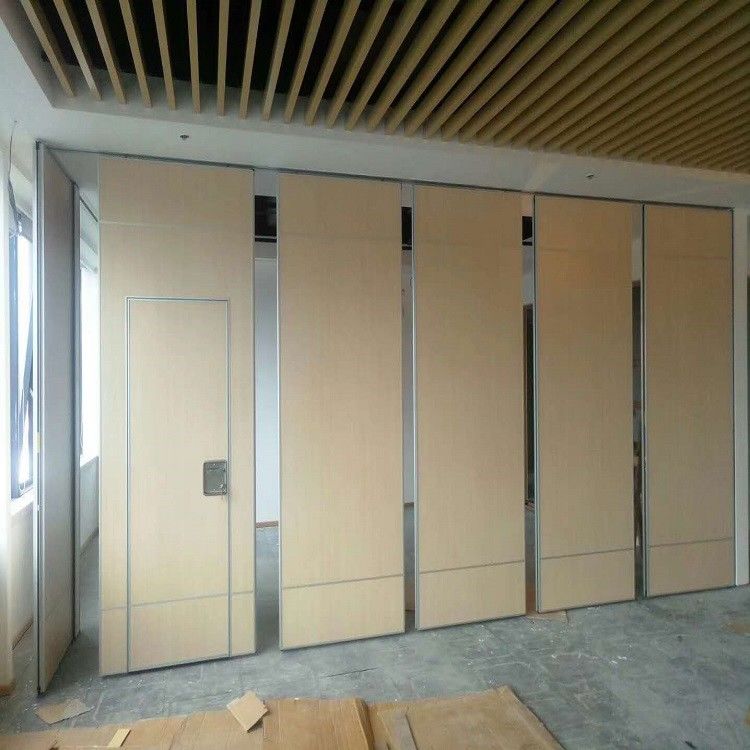

Hotel Folding Wooden Restaurant Soundproof Movable Partitions Walls

Hotel Folding Wooden Restaurant Soundproof Movable Partitions Walls

Product Details:

Place of Origin: China
Brand Name: Bunge
Model Number: 65 mm Movable Partition

Payment & Shipping Terms:

Minimum Order Quantity: 1 Square Meters
Price: USD 75-95/ Square Meter
Packaging Details: Carton package , Paper package
Delivery Time: 10 working days after received your down payment
Payment Terms: T/T, L/C, Western Union
Supply Ability: 5,000 Square Meters per Month
Get Best Price Contact Now

Detail Information

Product Name: Movable Partition Wall Color: Customized
Material: Wooden Size: Customized
Advantage: Movable ,sliding Application: Office ,hotel
High Light:

movable walls on wheels

,

acoustic movable walls

Product Description

Hotel Folding Wooden Restaurant Soundproof Movable Partitions Wall



Operation :

Partitions shall be top supported, manually operated panels stacked in an area nominated in the plans.When closed, the operable wall shall provide a complete sound retardant barrier.No floor track shall be used.


Track :

The tracks are made from extruded 6063 - T6 anodized aluminum .The track housing shall utilize grooves and interlocking steel pins for positive alignment of adjacent track sections , and shall be reinforced overhead by drop rod brackets .Aluminum track housing shall include an integral nut slot to accept a hardened square nut for attaching each drop rod bracket to the top of the track .


Trolley :

BUNGE Centre / Side / Remote stacking system with a Two wheeled nylon trolley made with the base Material of POM 45 tempered steel shall be used as per approved stacking method .



Aluminum trim :

The panel trims will be standard series with exposed Aluminum trims of 15mm thickness finished in 6063 - T6 Anodized Aluminum shall be used .


Panels :

The Panels will be made from 9mm MDF boards and shall be 65mm thick and 1230mm maximum width, made to the appropriate acoustic rating and structural backing and mounted in full perimeter extruded aluminum frames with interlocking corner construction .The panel faces shall be finished with selected material .
· Basic Panels shall be equal in module.
· Approx.Weight kg/ square meter : 22 kg
· Maximum height : 4000mm.


Panel Surface Finish :

The panel surface will be as per the clients requirement finished either in BUNGE factory - China or by others.The basic panels will be raw MDF (the finish materials such as laminate, veneer, melamine or fabric etc.)



Hotel Folding Wooden Restaurant Soundproof Movable Partitions Walls 0


Retractable mechanism :

The top and bottom rail of each panel shall incorporate an extruded aluminum box section mechanical seal manually operated by a handle inserted in the panel stile , turning the handle through 45 degrees shall simultaneously extend or retract the top and bottom seals through an steel and spring mechanism which shall firmly hold the seals in the retracted or extended mode .Single crank type mechanisms shall activate floor and head seals .


Seals :

Vinyl seal of butane rubber will be used as top and bottom and as well as closure seals for the operable wall system.Retractable seal drop will be 23mm.


Acoustic insulation Material :

Rockwool sound absorption glass fiber shall be used.


Magnetic Strip :

Ferrite plastic magnetic material will be used in between aluminum profiles to enhance acoustic performance of the wall.


Stacking :

The panels will be stacked as per the agreed method and in accordance with the architetural plan.Centre stacking arrangement will be utilized for the subject project.


Applications :

Our products (Movable Partitions) are widely used in the hotel banquet halls , meeting rooms , exhibition halls , conference rooms , International Convention Centers , KTVs , upscale restaurants , office buildings , schools , hospitals and others .



Hotel Folding Wooden Restaurant Soundproof Movable Partitions Walls 1


Series BG 65 BG 85 BG100
Panel supension Top hung only Top hung only Top hung only
Panel thickness 65 mm 85 mm 100 mm
Max height 4000 mm 6000 mm 8000 mm
Panel width 600-1230 mm 600-1230 mm 600-1230 mm
Face material 9 mm 9 mm 9 mm
Pass doors Single Door or Double Door
Sound insulation 20 – 32 db 28 – 36 db 32 – 50 db
Finish Material Plywood / MDF /Laminate / Melamine / Gypsum
Board / Fabric / Insulation / Fireproof /Wall Paper /Vinyl /Painting /etc,(Customized)
