Ballroom Operable Walls Cost Acoustic Partition Walls Sound Proof Movable Partitions
Product Details:
| Place of Origin: | Guangzhou, China |
| Brand Name: | EBUNGE |
| Certification: | ISO 9001 |
| Model Number: | 85 mm acoustic partition walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | No MOQ, small quantity welcome |
|---|---|
| Price: | $82-98 per square meter. |
| Packaging Details: | Paper carton, outside with wooden box. |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50000 square meters per month |
|
Detail Information |
|||
| Product Name: | Acoustic Partition Walls | Application: | Ballroom Partition Walls |
|---|---|---|---|
| Frame Material: | Aluminum Alloy | Sample: | Free |
| Color: | Optional | Warranty: | 5 Years |
| High Light: | acoustic operable wall,movable acoustic partition walls |
||
Product Description
Ballroom Operable Walls Cost Acoustic Partition Walls Sound Proof Movable Partitions
Acoustic partition walls details
The acoustic partition wall series is the most popular specification range of fully operational single-panel sliding partition systems. The noise reduction of up to 50dB noise is achieved with a combination of operable top and bottom seals, high performance multiple sound absorbing material in acoustic partition walls and panel assembly design which allows noise reduction between the frame and the outer layer.
The vertical channel of each acoustic partition wall panel contains a polymer insert that is acoustic sealed when the panels are placed as a wall. The sound insulation acoustic partition walls are available in three thicknesses, 65mm, 80mm and 100mm, depending on the acoustic rating (from 30dB to 50dB).
When the operable seal is retracted, the panel slide easily along a unique aluminum overhead rail system (no floor rails are required). The telescopic end panel allows the walls to be locked off to complete the acoustic seal. The rail and carrier systems make sure acoustical partition wall is easy to operate and change direction, allowing panel stacking in countless configurations.
For aesthetic appeal, it is possible to provide almost any decorative finish, including veneer, laminates, walls, carpets, whiteboards and decorative lacquers.
Technical information
| Product name | moveable partition wall |
| Color | Customized |
| Material of Frame | Aluminum Frame |
| Material of Soundproofing | Glass Wool, Steel Plate, Wooden Board |
| Application | restaurant |
| Style | Modern Banquet Hall Folding Partitions |
| Size | Customizied |
| Feature | Assemble |
| Service | OEM ODM Trial |
| Finish | veneer,melamine, fabric or customized |
| Product Keywords | partition wall,acoustic wall partition,kitchen acoustic wall |
| Panel Suspension: | Top hunge system without the need for a floor track. |
| Panel Width: | Each panel 600mm-1200mm. |
| Track: | Aluminum OR Steel Track |
| Roller on panel: | Single or double roller. |
| Panel Frames: | Heavy-duty steel-gusseted aluminum inner frames reinforced with full height. |
| Top&bottm seals: | Top and bottom pressure retractable seals ensure effortless moved and locked. |
| Module: | 700mm - 1200mm maximum. |
| Panel stacking: | Numerous panel stacking options for complete flexibility. |
| Panel face: | MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc. |
| Finishes: | Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard |
Acoustic partition walls features
High sound insulation
Meet the noise standard of five-star hotel, the sound insulation effect can reach up to 55db, which is more than 30% stronger than ordinary indoor wall sound insulation;
High quality
Using green materials, the formaldehyde emission is in line with the national standard <1.5mg/L>, and the material has the characteristics of firmness, durability, anti-deformation, fireproof and flameproof, anti-aging, no fading, abrasion resistance and scratch resistance;
Wide range of applications
The acoustic partition wall is mainly used for the venues where the star-sized hotel banquet hall, multi-purpose hall, conference room, exhibition hall, restaurant, office and other large spaces need to be divided;
Customized on demand
Acoustic partition walls can be customized according to different customer requirements, such as partition models, surface decoration and collection methods, to meet different site decoration styles.

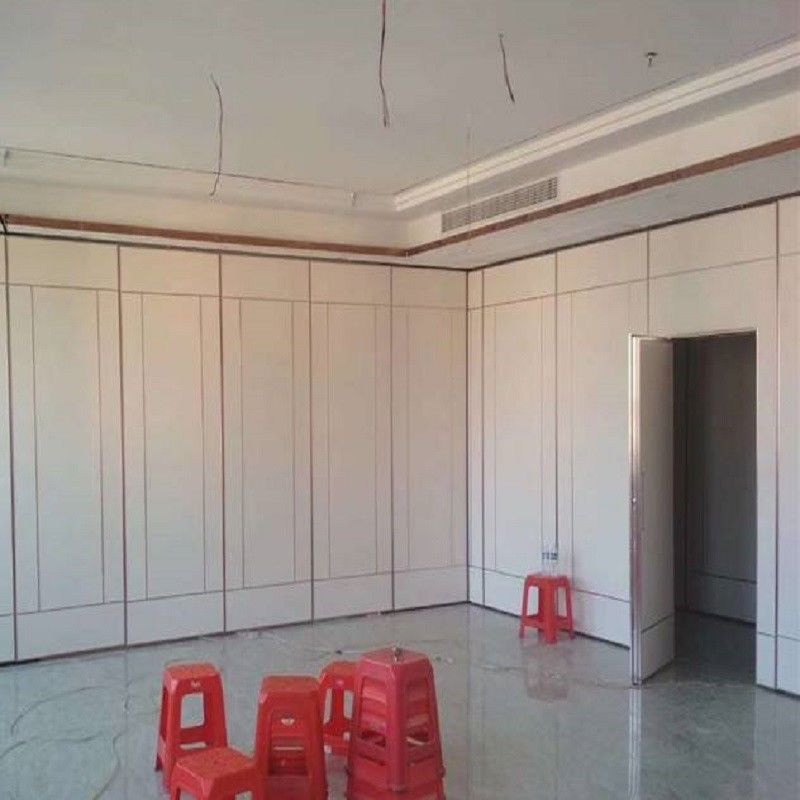

Finished project
Thanks for the trust from the client who comes from India.
This banquet hall operable partition walls project finished and delivered in March,2018.
Totally 4 sets of walls. Height:3.76 meters. 185 square meters.
Our technician also went to project to supervise the installation. After installing the tracks system well, our technician came back and the client need us to do the pocket door for him.
Finish: Melamine Surface. Color Chart: CS-3061F.
