Mobile Sliding Office Partition Wall Decorated Acoustic Room Dividers Partitions
Product Details:
| Place of Origin: | Guangzhou, China |
| Brand Name: | EBUNGE |
| Certification: | ISO 9001 |
| Model Number: | 85 mm acoustic room dividers |
Payment & Shipping Terms:
| Minimum Order Quantity: | No MOQ, small quantity welcome |
|---|---|
| Price: | $82-98 per square meter. |
| Packaging Details: | Paper carton, outside with wooden box. |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50000 square meters per month |
|
Detail Information |
|||
| Product Name: | Acoustic Room Dividers | Application: | Hotel Partitions |
|---|---|---|---|
| Finish: | Melamine, Laminate | Sample: | Free |
| Color: | Optional | Size: | Accept Customized |
| High Light: | sound proof room divider,banquet hall room dividers |
||
Product Description
Mobile Sliding Office Partition Wall Decorated Acoustic Room Dividers Partitions

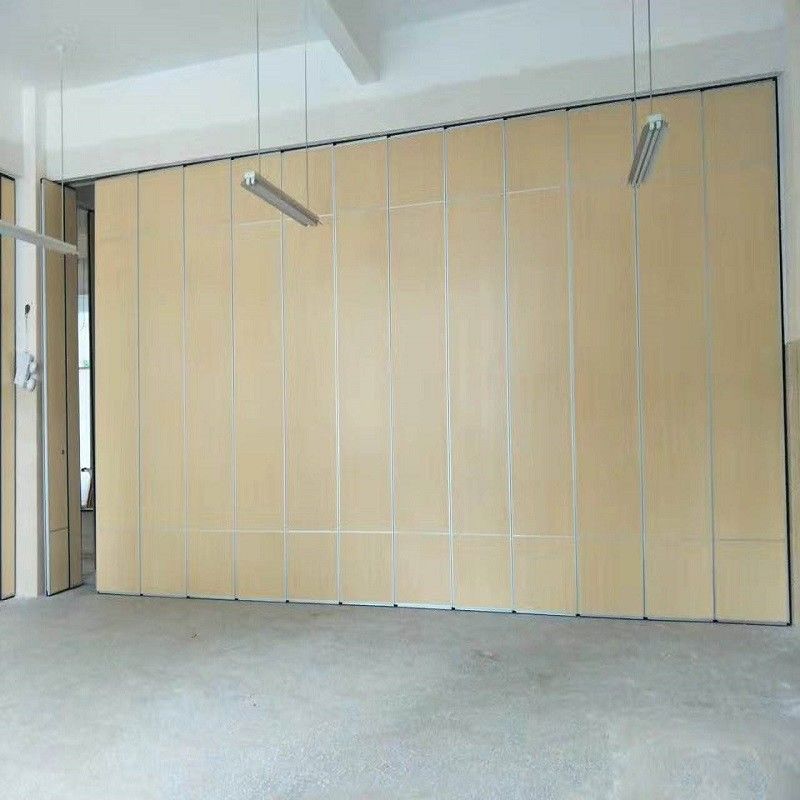

Finished project
Thanks for the trust from the client who comes from India.

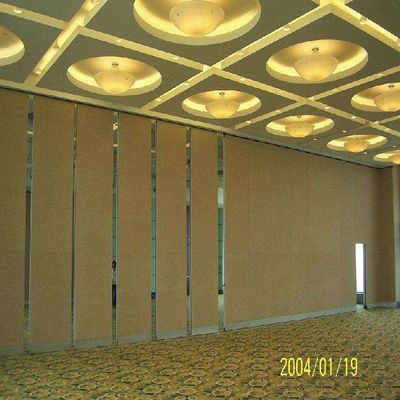

This banquet hall operable partition walls project finished and delivered in March,2018.
Totally 4 sets of walls. Height:3.76 meters. 185 square meters.
Our technician also went to project to supervise the installation. After installing the tracks system well, our technician came back and the client need us to do the pocket door for him.
Finish: Melamine Surface. Color Chart: CS-3061F.
Acoustic room dividers features
1. The acoustic room divider is a hanging system, which have the ceiling rails, but have no floor reails. So it will not damage the floor or carpet at the project site.
2. All of the acoustic room dividers can be customized, such as the size, the colors and the surfaces.
3. The acoustic room dividers can help you divide a big space into 2 or more smaller rooms. When you do not use them, they can be parked to the parking zone conveniently and quickly.
4. The operation is very easy, 1 person can finish the whole operation.
5. More than 60 kinds of colors to choose.
6. Different surfaces also available. Such as the MDF, Plywood, Melamine, Veneer, Fabric and Leather surface.
7. Single or Double Pass Door also available, which can help you come in and out easily.
Technical information
| TYPE | BG 65 | BG 85 | BG 100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65mm | 88mm | 100mm |
| Panel height | Up to 4000mm,Heights greater than 3000mm refer to our Technical Dept | Up to 6000mm,Heights greater than 6000mm refer to our Technical Dept.inset Pass doors above 2400mm.Full Height pass door up to 3000mm high Document 'M'disabled doors-optional | |
| Max height | 4000mm with heavy duty track | 6000mm with heavy duty track | 18000mm with heavy duty track or steel track |
| Panel width | 600-1200mm | 600-1200mm | 600-1200mm |
| Frame construction | Aluminium/steel | Aluminium/steel | Aluminium/steel |
| Face material | 12mm | 12/15/18mm | 12/15/18mm |
| Fire safety | optional Class I or O | optional Class I or O | optional Class I or O |
| Vertical profiles | Aluminium,anodised with sealing profiles,painted-optional | Aluminium,anodised with sealing profiles,painted-optional | Aluminium,anodised with sealing profiles,painted-optional |
| Retractable seals | Aluminium,black with double rubber seals | Aluminium,black with double rubber seals | Aluminium,black with double rubber seals |
| Operation of seals | Manual,with supplied operating handle | Manual,with supplied operating handle | Manual,with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass Doors | Single open in oanel or double open in two panel | Single open in oanel or double open in two panel | Single open in oanel or double open in two panel |
| Sound insulation | 40,44,47,50dB Rw | 40,44,47,50,53dB Rw | 40,44,47,50,53,58dB Rw |
| Weight | Approx 33-40kg/sq M | Approx 43-50kg/sq M | Approx 63-70kg/sq M |
Related products
1. Movable partition walls, operable walls, movable doors, acoustic room dividers, sound proof partitions.
2. Office furniture: office workstations, office chairs, conference chairs, stackable conference tables.
3. Glass partitions: movable glass partitions or fixed glass partitions for office or conference room also available.
4. Partition walls accessories: partition walls tracks and wheels.
