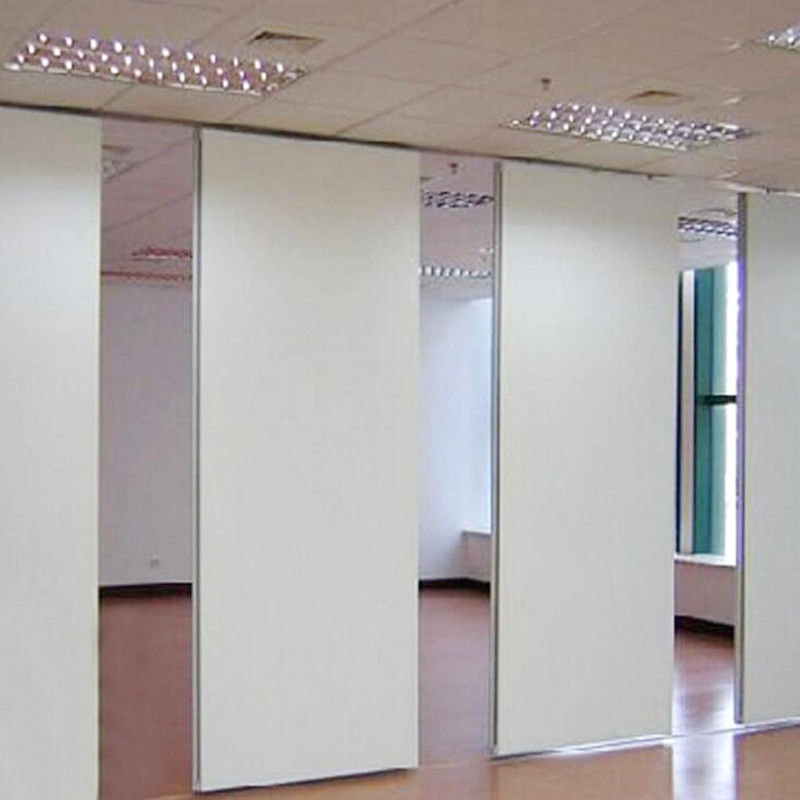

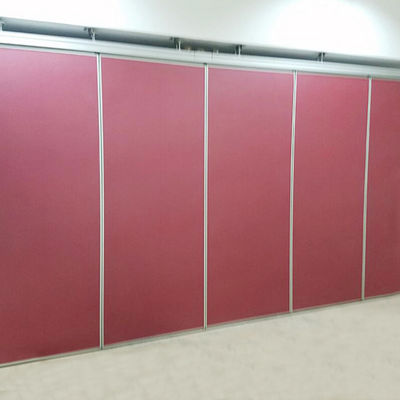

Mobile Wood Folding Sliding Modular Operable Soundproof Movable Partition Walls
Product Details:
| Place of Origin: | China |
| Brand Name: | Bunge |
| Model Number: | 65 mm Movable Partition |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Square Meters |
|---|---|
| Price: | USD 75-95/ Square Meter |
| Packaging Details: | Carton package , Paper package |
| Delivery Time: | 10 working days after received your down payment |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 5,000 Square Meters per Month |
|
Detail Information |
|||
| Product Name: | Movable Partition Walls | Style: | Customized |
|---|---|---|---|
| Advantage: | Movable And Sliding | Usage: | Office ,banquet Hall |
| Sample: | Free | Type: | 65 Series |
| High Light: | movable partitions systems,acoustic movable walls |
||
Product Description
Mobile Wood Folding Sliding Modular Operable Soundproof Movable Partitions
Description:
The operable wall panel construction and finish materials shall consist of Class A rated materials in accordance with BUNGE Standards.
Operation:
Partitions shall be top supported, manually operated panels stacked in an area nominated in the plans. When closed, the operable wall shall provide a complete sound retardant barrier. No floor track shall be used.
Track:
The tracks are made from extruded 6063 – T6 anodized aluminum. The track housing shall utilize grooves and interlocking steel pins for positive alignment of adjacent track sections, and shall be reinforced overhead by drop rod brackets. Aluminum track housing shall include an integral nut slot to accept a hardened square nut for attaching each drop rod bracket to the top of the track.
Seals:
Vinyl seal of butane rubber will be used as top and bottom and as well as closure seals for the operable wall system. Retractable seal drop will be 23mm.
Acoustic insulation Material: Rockwool sound absorption glass fiber shall be used.
Magnetic Strip: Ferrite plastic magnetic material will be used in between aluminum profiles to enhance acoustic performance of the wall.
Stacking:
The panels will be stacked as per the agreed method and in accordance with the architetural plan. Centre stacking arrangement will be utilized for the subject project.
Technical Description Feature
1. Change the room space freely.
2. Heavy Track loading capacity make sure the safety of Partition .
3. Precise welding between separate rail can eliminate repairing and maintenance rate .
4. Partition retract and push easily for one people to handle the operating work .
5. Wide application: can be used in Office place , commercial place , exhibition place, Hospital place.
| Series | BG 65 | BG 85 | BG100 |
| Panel supension | Top hung only | Top hung only | Top hung only |
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Max height | 400 mm | 600 mm | 800 mm |
| Panel width | 600-1230 mm | 600-1230 mm | 600-1230 mm |
| Face material | 9 mm | 9 mm | 9 mm |
| Pass doors | Single Door or Double Door | ||
| Sound insulation | 20 – 32 db | 28 – 36 db | 32 – 50 db |
| Finish Material | Plywood / MDF /Laminate / Melamine / Gypsum | ||
| Board / Fabric / Insulation / Fireproof /Wall Paper /Vinyl /Painting /etc,(Customized) | |||
FAQ
1:What you should you do on site?
A beam (truss)should built on site for track installation.The minimum distance leaving for track installation from false ceiling to top ceiling is 180mm.
2:How to install?
We will provide the installation manual and video guiding the installation job.We can also dispatch the installation engineer supervising the installation as request.
3:What is lead time ?
The lead time is 7 days to 10days.
4:How to transport?
Sea transport is a common mode of transportation.In an emergency,can be air freight .
5:How do the goods packing?
Carton paper package ,MDF batten cover all around cotner.
