|Product Name:||Movable Partition Walls||Weight:||25 KG/square Meters|

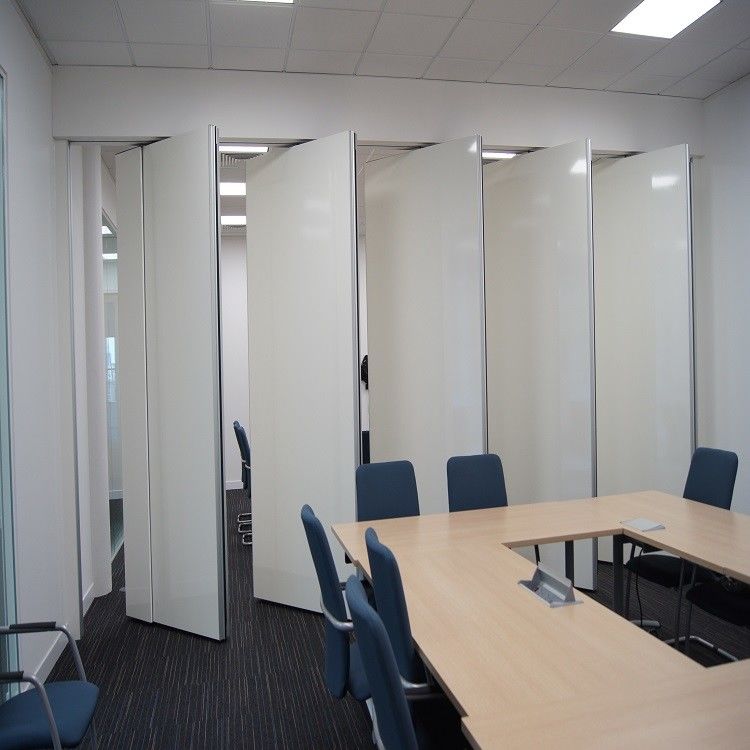

Conference room Acoustic Internal Folding Decorative Acoustic Panel Partition Wall
Partition wall description
The movable partition is an active wall that divides a large space into small spaces or connects small ones into a large space and has a general wall function as needed.
Has the following characteristics:
1. No rail suspension: the floor has no track, just install the track on the ceiling;
2. Stable and safe: stable and reliable after partitioning, not easy to swing;
3. Soundproof environmental protection: the effect of the compartment is good, the maximum sound insulation coefficient can reach 50db;
4. Insulation and energy saving: excellent thermal insulation performance, according to different occupancy rates, divide the large rating into small space to reduce air conditioning power consumption;
5. Efficient fire prevention: It is made of high-efficiency fireproof material and has good fireproof performance;
6. Beautiful and generous: the surface is arbitrarily decorated, which can be combined with the interior decoration effect;
7. Retractable and flexible: the partition is freely retractable and flexible, and one person can complete the whole process of partitioning;
8. Convenient collection: When closing the board, the partition can be hidden in the special storage cabinet, which does not affect the overall appearance;
9. Wide range of applications: can be used in conference halls, exhibition halls, restaurants, hotels, high clean factories and offices;
|Series||BG 65||BG 85||BG100|
|Panel supension||Top hung only||Top hung only||Top hung only|
|Panel thickness||65 mm||85 mm||100 mm|
|Max height||4000 mm||6000 mm||8000 mm|
|Panel width||600-1230 mm||600-1230 mm||600-1230 mm|
|Face material||9 mm||9 mm||9 mm|
|Pass doors||Single Door or Double Door|
|Sound insulation||20 – 32 db||28 – 36 db||32 – 50 db|
|Finish Material||Plywood / MDF /Laminate / Melamine / Gypsum|
|Board / Fabric / Insulation / Fireproof /Wall Paper /Vinyl /Painting /etc,(Customized)|
We can supply any surface material according to customer's requirement, including melamine board, decorative panel, MDF (density board) plywood, wallpaper, fabric, leather, fireproof board and decorative paint, etc
1:What you should you do on site?
A beam (truss)should built on site for track installation.The minimum distance leaving for track installation from false ceiling to top ceiling is 180mm.
2:How to install?
We will provide the installation manual and video guiding the installation job.We can also dispatch the installation engineer supervising the installation as request.
3:What is lead time ?
The lead time is 7 days to 10days.
4:How to transport?
Sea transport is a common mode of transportation.In an emergency,can be air freight .
5:How do the goods packing?
Carton paper package ,MDF batten cover all around cotner.
