Acoustic High Sliding Folding Aluminum Movable Partition Wall Profile
Product Details:
| Place of Origin: | China |
| Brand Name: | Bunge |
| Model Number: | 65 mm Movable Partition |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Square Meters |
|---|---|
| Price: | USD 75-95/ Square Meter |
| Packaging Details: | Carton package , Paper package |
| Delivery Time: | 10 working days after received your down payment |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 5,000 Square Meters per Month |
|
Detail Information |
|||
| Product Name: | Movable Partition Walls | Drawing: | Free |
|---|---|---|---|
| Size: | Customized | Style: | Customized |
| Type: | Decoration Building Material | Material: | Wooden |
| High Light: | movable partitions systems,acoustic movable walls |
||
Product Description

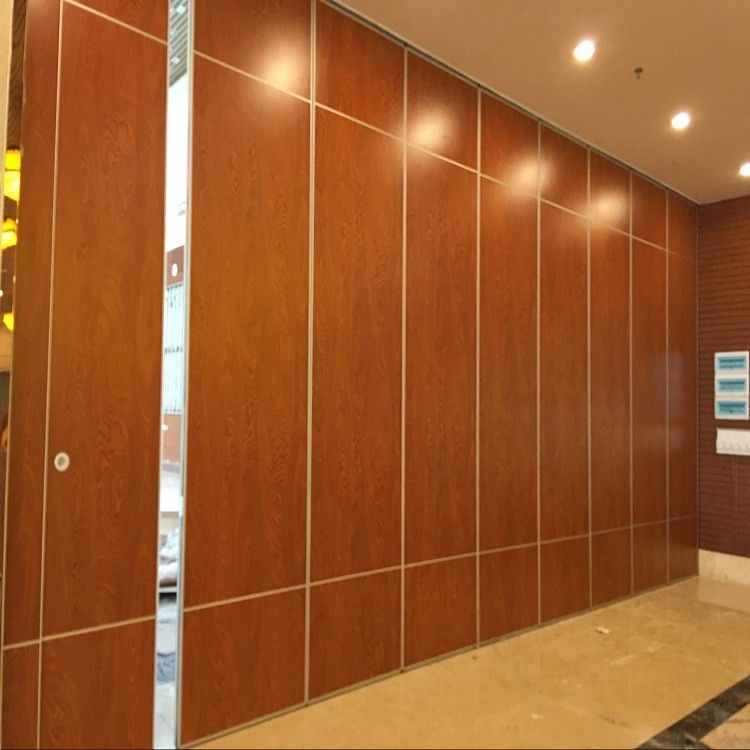

Ready Made Materials Used Building Movable Partition Walls Door For Hotel
Partitions wall Design
The operable wall series is the highest specification range of fully operable ,individual – panel partition system .Acoustic insulation of up to 55 db noise reduction is achieved with a combination of operable top and bottom seals, high performance multiple infills and a panelassembly design that allows an acoustic break between the frame and outer layer ,The vertical channels of each panel incorporate polymer inserts that facilitate an acoustic seal when the panels are set out as a wall. Panels are produced in four thiknesses ,65mm.85mm,100mm,125mm,depending on acoustic rating (from 32db – 55db )
Technical Details
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Panel thickness | 65mm | 85mm | 100mm |
| Max height | 4000mm | 6000mm | 8000mm |
| Panel width | 500-1200 mm | 500-1200 mm | 500-1200 mm |
| Face material | 9mm | 9mm | 12 mm |
| Passdoors | Single door or Double door | ||
| Sound insulation | 28-38dB Rw | 28-42dB Rw | 32-50dB Rw |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc.(Customized) | ||
Advantages of Partitions wall
1: No floor track
Need not laid ground course, do not destroy whole to decorate the effect
2: Stable and firm
Each partition can be fixed independently, stable and reliable, not easy to swing
3: Sound insulation and environmental protection
Sound insulation effect is good, sound insulation coefficient can reach 50 db above
4: Heat insulation and energy saving
Excellent heat insulation performance, different seating rate pattern, the large space divided into small space
5: Efficient fire prevention
Adopt efficient fireproof material, good fireproof performance
6: Convenient collection
Close board when, partition wall can be concealed in special store ark, do not affect integral and beautiful
Partition wall detail analysis
1: Anti-skid groove is added in the single-wheel track, so that the lifting wheel can still slide smoothly under the condition of side deviation
2: Double wheel bearing 300KG
3: Rail multi-angle bevel cutting surface, no cracking using German imports inch industrial grade aluminum cutting machine cutting.45 90 180 bevel section, seamless joint using low-frequency modulation pulse MIG welding technology, no cracking.
4: Imported bearing, high speed, stable and smooth
FAQ:
1:Can I ask a sample before place a order?
Yes, Sample are available ,if necessary.
2:If I order small quantity ,will you treat me ?
Yes, the minute once you contact with us, you become our precious customer.
3:Can I visit to your factory?
Very welcome to visit our factory at any time.
4:How does a quantity control?
We have professional QC team to inspect the products, packing ,each part details before delivery.
5:Do you have showroom?
Yes, We have showroom in factory .
6:Do you offer customized product service?
Yes, customized product is available in our factory .We have our own technological and design team to study the new item .Send your design drawing or idea to us ,let us know your requirement.
