Aluminum Automatic Sliding Conference Room Mobile Doors Partition Wall
Product Details:
Place of Origin: | China |
Brand Name: | Bunge |
Model Number: | 65 mm Movable Partition |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 Square Meters |
---|---|
Price: | USD 75-95/ Square Meter |
Packaging Details: | Carton package , Paper package |
Delivery Time: | 10 working days after received your down payment |
Payment Terms: | T/T, L/C, Western Union |
Supply Ability: | 5,000 Square Meters per Month |
Detail Information |
|||
Product Name: | Movable Partition Wall | Surface: | MDF,Melamine |
---|---|---|---|
Application: | Banquet Hall | Characteristics: | Movable Sliding |
Material: | Wooden | Color: | Customized |
High Light: | movable partitions systems,acoustic movable walls |
Product Description

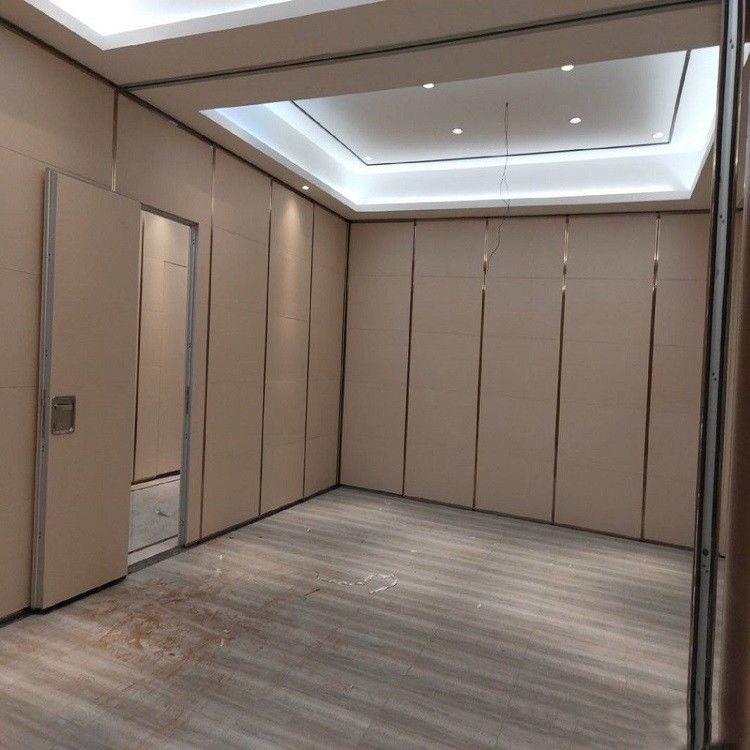

Aluminum Automatic Sliding Conference Room Mobile Doors Partition Wall
We provide best and comfortable arrangement of acoustic sliding panels suspended from ceiling track to sub-divide wide open areas which is flexible for functions like weddings, conferencing, meetings simultaneously in single big hall. This modern technical facility is known as sliding Folding partition or Movable Wall. All types of partitions are acoustically treated and aesthetically very elegant for interior. We are committed to make your space comfortable and offer a comprehensive range of sliding folding partition systems to exactly fit your requirement.
During the initial consultation we determine various issues like, Level of sound reduction (acoustic performance), whether the system should be top hung or floor supported and also what finishes are available.
Movable walls can be applied in hotels, Multi-functions halls, Meeting Room, Convention Center, Residential area, College and School, Banquet hall, Training rooms etc. We provide quality and reliable services at very cost effective prices all over the world.
The partitions shall be top-supported, manually operated panels stacked in an area nominated in the plans. When closed, the operable wall shall provide a complete sound retardant barrier. No floor track shall be used. The tracks are made from extruded anodized aluminum. The track housing shall utilize grooves and interlocking steel pins for better alignment of adjacent track section, and shall be reinforced overhead by drop rod brackets.
The vertical channels for each panel incorporate vinyl seal(polymer) inserts that facilitate an acoustic seal when the panels are set out as a wall. We provide Panels in three categories or thickness, 65mm, 85mm and 100mm, depending on acoustic rating (from 30dB–55dB).
Series | BG 65 | BG 85 | BG100 |
Panel supension | Top hung only | Top hung only | Top hung only |
Panel thickness | 65 mm | 85 mm | 100 mm |
Max height | 400 mm | 600 mm | 800 mm |
Panel width | 600-1230 mm | 600-1230 mm | 600-1230 mm |
Face material | 9 mm | 9 mm | 9 mm |
Pass doors | Single Door or Double Door | ||
Sound insulation | 20 – 32 db | 28 – 36 db | 32 – 50 db |
Finish Material | Plywood / MDF /Laminate / Melamine / Gypsum | ||
Board / Fabric / Insulation / Fireproof /Wall Paper /Vinyl /Painting /etc,(Customized) |
