School Operable Movable Doors Sliding Folding Wood Partitions Wall On Wheels With Storage
Product Details:
| Place of Origin: | China |
| Brand Name: | Bunge |
| Model Number: | 65mm Movable Partition |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Square Meters |
|---|---|
| Price: | USD 75-95/ Square Meter |
| Packaging Details: | Carton package , Paper package |
| Delivery Time: | 10 working days after received your down payment |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 5,000 Square Meters per Month |
|
Detail Information |
|||
| Product Name: | Movable Partition Wall | Finish: | Fabric ,leather |
|---|---|---|---|
| Type: | 65 Series | Sample: | Free |
| Drawing: | Free | Thickness: | 65 Mm |
| High Light: | movable walls on wheels,movable partitions systems |
||
Product Description

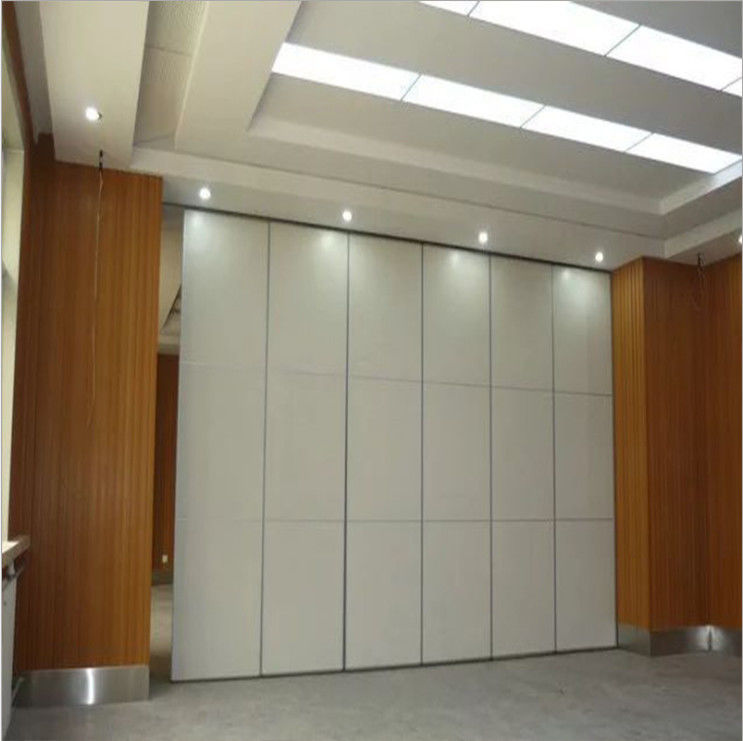

School Operable Movable Doors Sliding Folding Wood Partitions Wall On Wheels With Storage
The BUNGE Moveable wall system is the product with infinite possibilities. Folding wall systems let you make the most of your office space. Meeting rooms even though essential for most companies, are often only used for a small percentage of the working day. So having a folding wall system, lets you use this valuable space when no meetings are in progress.
Frame construction
A specially developed aluminium frames and free-hanging exterior panels make the walls extremely sturdy and provide excellent sound insulation. The panel connections consist of vertical aluminium panel side profiles,anodised. When the wall is closed, there are no visible aluminium profiles, a 4mm shadow gap is between the closed panels. The vertical aluminium profiles can also be colour coated as an option.
Optional cover panels finish
These cover panels are suspended on the rubber profiles of the frame.
Due to the unique suspended construction, the cover panels can easily be replaced.
If required, MDF exterior panels can also be used.
| Series | BG 65 | BG 85 | BG100 |
| Panel supension | Top hung only | Top hung only | Top hung only |
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Max height | 400 mm | 600 mm | 800 mm |
| Panel width | 600-1230 mm | 600-1230 mm | 600-1230 mm |
| Face material | 9 mm | 9 mm | 9 mm |
| Pass doors | Single Door or Double Door | ||
| Sound insulation | 20 – 32 db | 28 – 36 db | 32 – 50 db |
| Finish Material | Plywood / MDF /Laminate / Melamine / Gypsum | ||
| Board / Fabric / Insulation / Fireproof /Wall Paper /Vinyl /Painting /etc,(Customized) | |||
Running gear
Bearing rollers with high-quality roller technology have been specially developed for the Multiwal moveable walls. Combined with an ingenious aluminium track system, the panels can be easily moved.
Panel height adjustment
The panel height is fully adjustable without dismantling the main assembly. Disturbing the ceiling finish is not necessary to fine tune the panels.
Vertical interface
Concave/convex aluminium profiles guarantee that the seal is effective and insulates properly. The solid and precise connection between the panels is achieved by means of strong, full height sound sealing strips located on the inner face.
Control
bunge handle is equipped with a manual control.
Horizontal closing
To obtain the best soundproofing effect, the wall must fit tightly against the floor and ceiling. To achieve this, the movable walls have a manual system used to extend the pressure seals, which have flexible rubber pads. The pressure seals naturally compensate for possible unevenness in the floor.
Pressure seals
Each panel is fitted with black anodised pressure seals at the top and bottom.
Panel thickness:65,85, 100 mm
Soundproofing: 30-50 db,
Soundproofing
DIN EN 10140-2 / 20140-3, laboratory values
Surface weight25 - 40 kg/m2, depending on the sound insulation
