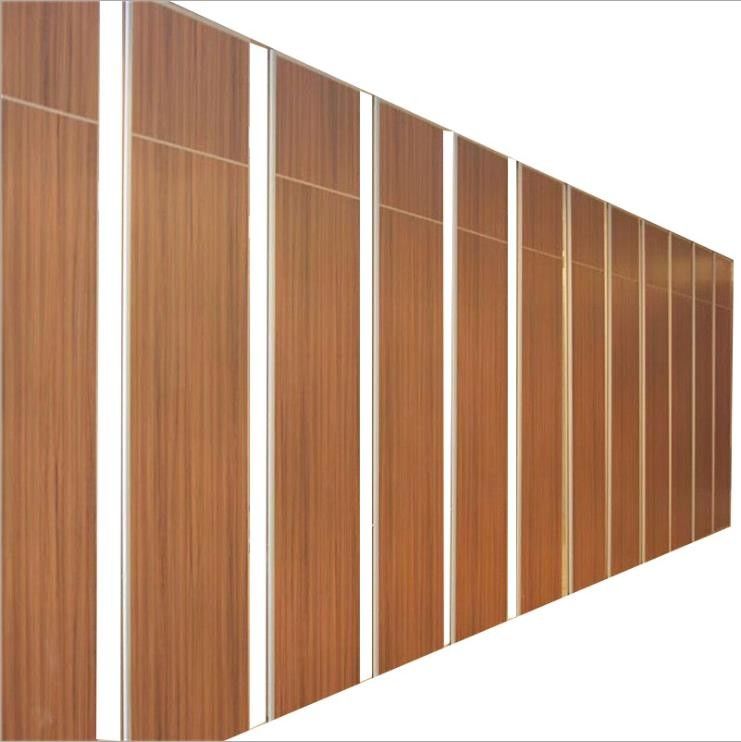

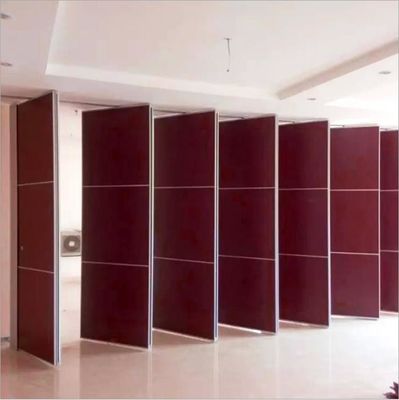

Banquet Hall Classroom Movable Wall Divider On Wheels For Art Gallery
Product Details:
| Place of Origin: | China |
| Brand Name: | Bunge |
| Model Number: | 65mm Movable Partition |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Square Meters |
|---|---|
| Price: | USD 75-95/ Square Meter |
| Packaging Details: | Carton package , Paper package |
| Delivery Time: | 10 working days after received your down payment |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 5,000 Square Meters per Month |
|
Detail Information |
|||
| Product Name: | Movable Partition Wall | Finish: | Fabric ,leather |
|---|---|---|---|
| Color: | Customized | Material: | Wooden |
| Type: | 65 Series | ||
| High Light: | movable partitions systems,acoustic movable walls |
||
Product Description
Banquet Hall Classroom Movable Wall Divider On Wheels For Art Gallery
Product Description
1.Track installation:Suspension fixed way is at the top of the partition board install the hanging wheel, and connected to the track suspension. The track and hanging wheel should be chosen according to the partition size and load weight.
2.Partition panel installation: according to the design drawing, draw on each partition panel to mark the line wheel, fix the wheel with screws on the partition board top; Then the panel be put into track, let each panel in the perpendicular to the ground; Test and push-pull flexible rotation, and finally to fixed connection.
3.Debugging: movable panel need to discretion, sealing and so on debugging after installed. Then cleaning up the panel, complete the installation work
Technical Details
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Panel thickness | 65mm | 85mm | 100mm |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 500-1200 mm | 500-1200 mm | 500-1200 mm |
| Face material | 9mm | 9mm | 12 mm |
| Passdoors | Single door or Double door | ||
| Sound insulation | 28-38dB Rw | 28-42dB Rw | 32-50dB Rw |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc.(Customized) | ||
Advantages
1. Without ground track: No need ground track, keep floor intact, Only need top hanger system.
2. Stable and safe: After with upper and lower telescopic pressure device, make the partition stable and secure and not easy to swing.
3. Sound insulation: the soundproof is good performance, the best sound insulation rate can reach 55db.
4. Energy-saving insulation: excellent thermal insulation properties, according to the different attendance rate, the large is divided into a small space to reduce air conditioning power consumption.
5. High-effcient fire prevetion: Use highly efficient fireproof material, good fireproof performance.
6. Elegant appearance: many seletion of surface decoration, can make a unified indoor decoration.
7. Retractable and flexible: partition panel can easy to control, only one person can finish the whole process of fix up partition.
8. Easy storage: When not need the partitions, panels can beHidden in a dedicated srorage cabinet, does not affect the overallappearance.
9. Wide spread use: Very widely use, suitable to Conference room, Exhibition hall, Restaurant, High purity plant, Office and similar facilities.
How do the movable partition wall work?
The continuously hinged panels are pulled from their parked position to 'close' (or extend) the wall and pushed back to the parked position to 'open' (or fold)the wall. Final flat alignment of wall panels is assisted pneumatically by a gas piston located in the top track. A lever or recess handle is fitted to the lead panel and this combined with a vertical rebated profile provides the system with its pass door. The door is available with or without a lock cylinder.
Our easy lock-up set.
Retractable pressure seals on top and bottom are extended and retracted by a single 180°turn removable operating handle.
Retractable Pressure Seals.
Once the panel is positioned, they are sealed in place with retractable pressure seals
Telescopic sleeve panel.
Final closure of the wall is achieved by extending a telescopic sleeve on the last panel. The sweep strip simultaneously extends the top and bottom. The rubber sealing strip on the side edge of telescopic panelcan seal the wall tightly to reach acoustic integrity.
