Sliding Aluminium Track Acoustic Movable Partition Walls Operable Walls

Sliding Aluminium Track Acoustic Movable Partition Walls Operable Walls

Product Details:

Place of Origin: China,Guangzhou
Brand Name: BUNGE
Certification: ISO9001
Model Number: Series 65 mm movable partition wall

Payment & Shipping Terms:

Minimum Order Quantity: 10 square meters
Price: 87 / 136 dollar per square meter
Packaging Details: Carton package, MDF batten on four section sides ,foam board on both front face.
Delivery Time: Shipped in 10 days after payment, based on the quantity.
Payment Terms: D/A, D/P, L/C, T/T, Western Union, MoneyGram
Supply Ability: 5000 square meters per month
Get Best Price Contact Now

Detail Information

Thickness: 65 Mm Product Name: Movable Partition Wall
Panel Height: Less Than 4 M Application: Hotel,banquet Hall,restaurant
Surface: Melamine,fabric,leather Function: Divide Space
Warranty: 5-10 Years Color: Multi Color
Service: OEM Service
High Light:

movable partitions systems

,

acoustic movable walls

Product Description

Sliding Aluminium Track Acoustic Movable Partition Walls Operable Walls Price



Description:


1. Poduction: 5000 squre meter per month;



2. All products are customized;



3. Three series for different choice:


    65mm—up to 4ms H, 85mm—up to 6ms H, 100mm—up to 13ms H;



4. Panels width: 600mm to 1200mm, also can 2ms width for special request;



5. Panels height: up to 13ms height.



6. Panels thickness: 65mm—(2 9/16)”, 85mm—(3 3/8)”, 100mm—(3 15/16)”,



7. Sound proof: from 20db to 53db.



Bunge's reputation for quality and reliable products, clever designs and an insistence on excellent service is the reason why architects, engineers and contractors routinely insist on Bunge partition walls for their building projects.


Feature:


1. No need floor suspension: There is no track on the floor, just install the track on the ceiling;


2. Stable and safe: It is stable and reliable after being cut off, and it is not easy to swing;


3. Soundproof and environmental protection: sound insulation effect is good, the maximum sound insulation coefficient can reach 53 dB;


4. Insulation and energy conservation: excellent insulation performance, according to different seating rates, the large space is divided into small spaces to reduce the air conditioning power consumption;


5.High-efficiency fire prevention: The use of high-efficiency fireproof materials, good fireproof performance;

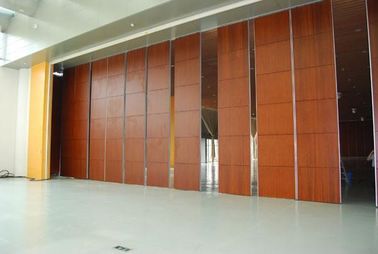

Sliding Aluminium Track Acoustic Movable Partition Walls Operable Walls 0


Technical information:



Panel Suspension Top hanging system without the need for a floor track.
Panel Width Each panel 600mm-1200mm.
Track Aluminum Or Steel Track
Roller on panel Single or Double Roller
Panel Frames Heavy-duty steel-gusseted aluminum inner frames reinforced with full height.
Top and bottom seals Top and bottom pressure retractable seals ensure effortless moved and locked.
Module 700mm - 1200mm maximum.
Panel stacking Numerous panel stacking options for complete flexibility.
Panel Surface MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc.
Finishes Satin anodized or polyester powder coating to all exposed aluminium components available in a wide range of colour as standard.



Advantage:



Hinged pair panels for quick and easy operation.



Robust aluminum frame construction for demanding environments.



Room divider wide range of surface finishes.



Partial and fully operating panels available.



Partition divider just only top hung supported without floor track.

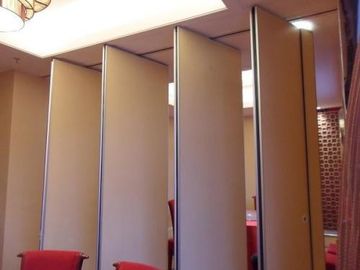

Sliding Aluminium Track Acoustic Movable Partition Walls Operable Walls 1



We can offer sample :



We can also provide sliding aluminium profile samples for client.Such as sliding aluminium track,roller,connector,aluminium frame,top and bottom seal rubber,retractable mechanism and etc.

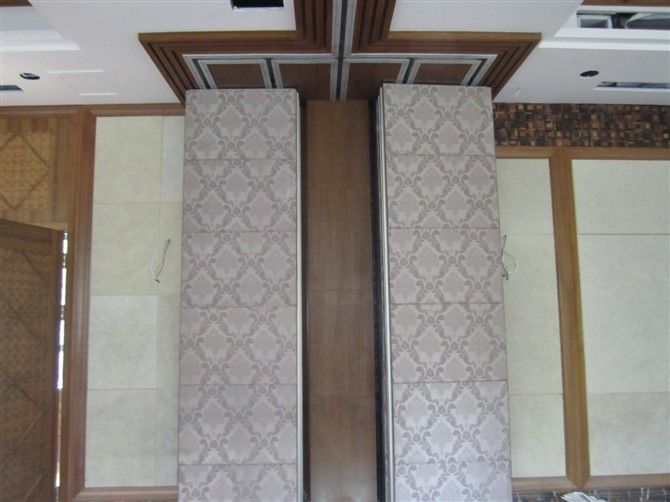

Sliding Aluminium Track Acoustic Movable Partition Walls Operable Walls 2



Our service:



We design and manufacture value for money products with a one year warranty on all the outstanding ranges illustrated in this brochure.

We offer a complete service package covering site surveys, CAD technical drawings, and quotation presentation. Emphasis is placed on quality assurance backed by a comprehensive after sales service.
