ISO9001 Acoustic Partition Walls / Function Room Operable Folding Partition Doors
Product Details:
| Place of Origin: | Guangzhou, China |
| Brand Name: | EBUNGE |
| Certification: | ISO9001 |
| Model Number: | 85 mm acoustic partition walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | No MOQ, small quantity welcomed |
|---|---|
| Price: | US $85-102 per square meter |
| Packaging Details: | Paper carton, outside with wooden boxes |
| Delivery Time: | 12-20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000 square meters per month |
|
Detail Information |
|||
| Product Name: | Acoustic Partition Walls | Application: | Function Room Partitions |
|---|---|---|---|
| Size: | Partition Walls Customized | Left And Right Telescoping: | 140 Mm |
| Style: | Sliding Folding Doors | Sample: | Free |
| High Light: | acoustic operable partitions,movable acoustic partition walls |
||
Product Description

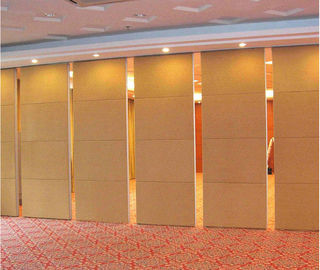

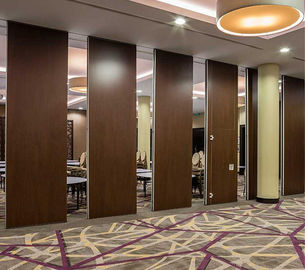

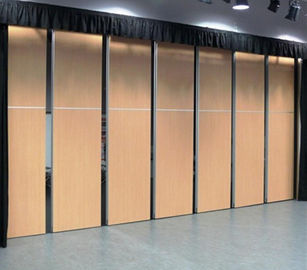

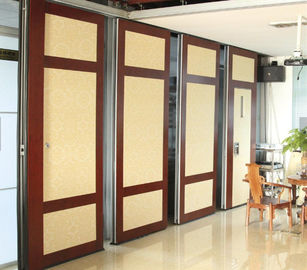

Function Room Operable Walls Folding Partition Doors Soundproof Acoustic Partition Walls
Finished project
Thanks for the trust from the client. We finished the packing and shipped to agent's warehouse on March 4th,2019.
This is a project in Lebanon, using the steal materials,including the steel tracks,the steel rollers and the steel haging clips. 8 meters height partitions, 30 meters width, totally 2 sets of walls, around 480 square meters. We just delivered the accessories by air, and we have sent our engineer(Mr. Zeng) to Lebanon to supervise the installation.
Actually our steel system can support 900 KG materials,so that is enough to support the panels for this project.
Do you still worry about the installtion? Please feel free to contact us for more details, our professional team can help you about that.
|
|
Acoustic partition walls accessories
Tracks:Made of good quality anodized aluminium 6063-T5 materials,hanging the acoustic partitions walls panels with wheels.
Wheels/Rollers:It is the carrier for the acoustic partitions walls,let the panels move more flexibly.Pulley bearing is more than 1600 KGS.
Connectors:Made of anodized aluminium 6063-T5 aluminum tracks,“L”, “T”, “＋”types are available.
Rubber/vinyl seal:Made of Nitrile Butadiene Rubber(NBR+PVC),durable and perfect for sound insulation,wear-resistant.
Rock Wool:Density of 60kg/m3,help us reduce the noise and heat.
Handle:Operate the retractable being up and down.
Retractable mechanism:Control the movement of the top and bottom seal to form a excellent sound insulation performance.
Magnetic Strip:Ferrite plastic magnetic material will be used in between aluminum profiles to enhance acoustic performance of the acoustic partition walls.
MDF board:9 mm thickness,density of 760kg/m3,absorbent thickness expansion rate is less than 15%.Formaldehyde emission is 34mg/100g.
Acoustic partition walls technical details
| Model | BG65 | BG85 | BG100 |
| Suspension system | Aluminum hanging | Aluminum hanging | Aluminum hanging |
| Basic thickness | 65mm | 85mm | 100mm |
| Total thickness | 65/75/85/95mm | 80/90/100/110mm | 100/120/130mm |
| Max height | Up to 3800mm | Up to 6000mm | Up to 8000mm |
| Width | 600-1230mm | 600-1230mm | 800-1230mm |
|
Floor/ceiling sealing strength |
Telescopic aluminum tube with rubber strip | ||
|
Side walls sealing strength |
Double seal tape | ||
| Sound insulation level | 26dB-30dB | 28dB-34dB | 32-40dB |
We Offer:
A full professional design service.
Survey and installation guide.
Using top quality materials and components.
A fully experienced work team.
Maintenance contracts to ensure your valuable asset remains in full work order.
