Conference Hall Soundproof Wooden Folding Movable Acoustic Partition Walls for Office
Product Details:
Place of Origin: | Guangzhou, China |
Brand Name: | EBUNGE |
Certification: | ISO9001 |
Model Number: | 85 mm movable partition walls |
Payment & Shipping Terms:
Minimum Order Quantity: | No MOQ, small quantity welcomed |
---|---|
Price: | US $85-102 per square meter |
Packaging Details: | Paper carton, outside with wooden boxes |
Delivery Time: | 12-20 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 50000 square meters per month |
Detail Information |
|||
Product Name: | Movable Partition Walls | Application: | Banquet Hall Partitions |
---|---|---|---|
Size: | Partition Walls Customized | Height: | 2 - 4 Meters |
Thickness: | 85 Mm(3 1/4 Inch) | Frame: | Aluminum Frame |
High Light: | movable walls on wheels,movable partitions systems |
Product Description

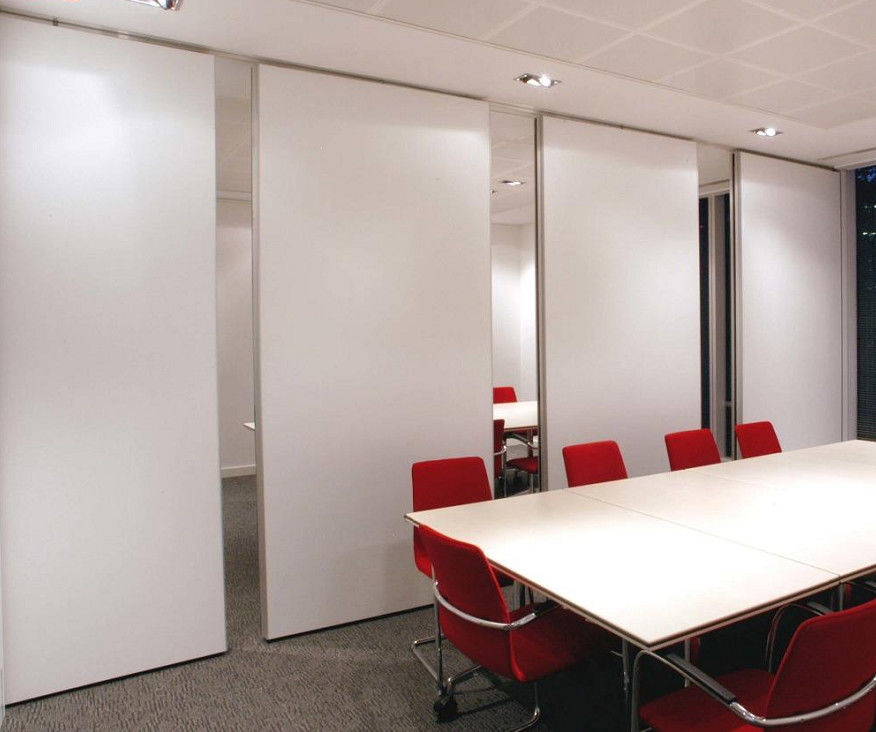

Conference Hall Soundproof Wooden Folding Movable Acoustic Partition Walls for Office
Finished project
Thanks for the trust from the client. We finished the packing and shipped to agent's warehouse on March 4th,2019.
This is a project in Lebanon, using the steal materials,including the steel tracks,the steel rollers and the steel haging clips. 8 meters height partitions, 30 meters width, totally 2 sets of walls, around 480 square meters. We just delivered the accessories by air, and we have sent our engineer(Mr. Zeng) to Lebanon to supervise the installation.
Actually our steel system can support 900 KG materials,so that is enough to support the panels for this project.
Do you still worry about the installtion? Please feel free to contact us for more details, our professional team can help you about that.
Movable partition walls technical details
Series | BG65 | BG85 | BG100 |
Panel suspension | Top hung only | Top hung only | Top hung only |
Track system | Single or twin point | Single or twin point | Single or twin point |
Panel thickness | 65mm | 80mm / 85mm | 100mm |
Panel height | Up to 4000mm | Up to 6000mm | Up to 18000mm |
Max height | 4000mm | 6000mm | 18000mm |
Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
Frame construction | Aluminum frame | Aluminum frame | Aluminum frame |
Face material | 9mm | 9mm / 12mm | 12mm |
Fire safety | Optional Class I or O | Optional Class I or O | Optional Class I or O |
Vertical profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles |
Retractable seals | Aluminum black with double rubber seals |
Aluminum black with double rubber seals | Aluminum black with double rubber seals |
Operation of seals | Manual, with supplied operating handle |
Manual, with supplied operating handle | Manual, with supplied operating handle |
Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
Pass doors | Single open in panel or double open in two panel |
Single open in panel or double open in two panel | Single open in panel or double open in two panel |
Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx30-48kg/sq M |
Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) |
Movable partition walls features
1. The movable partition walls are a hanging system,can be hidden upon drop ceiling, won't see any tracks on the finish floor.
2. Easy to collect,all of the movable partition walls can be collected in a certain cabinet by one person quickly and conveniently, when a large space need to be recovered.
3. The surface of the movable partition walls can be customized, can match the decoration style of the whole space.
4. Numerous panel stacking options for complete flexibility
5. The movable partition walls are sound proofing,can up to various levels of sound reduction.
6. The movable partition walls are made of high quality 6063-T5 aluminum materials,all of them are strong and wear resistant.
We Offer:
A full professional design service.
Survey and installation guide.
Using top quality materials and components.
A fully experienced work team.
Maintenance contracts to ensure your valuable asset remains in full work order.
