Partition Walls Foam Board With Ceiling And Floor Track For Room Movable Partition Malaysia
Product Details:
| Place of Origin: | China |
| Brand Name: | Bunge |
| Model Number: | 65 mm Movable Partition |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Square Meters |
|---|---|
| Price: | USD 75-95/ Square Meter |
| Packaging Details: | Carton package , Paper package |
| Delivery Time: | 10 working days after received your down payment |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 5,000 Square Meters per Month |
|
Detail Information |
|||
| Product Name: | Movable Partition Wall | Surface: | MDF,Melamine ,Fabric ,Leather |
|---|---|---|---|
| Thickness: | 65 Mm | Color: | Customized |
| Sample: | Free | Advantage: | Sliding ,no Floor Track |
| High Light: | movable partitions systems,acoustic movable walls |
||
Product Description
Partition Walls Foam Board With Ceiling And Floor Track For Room Movable Partition Malaysia
Banquet partition not just has a good sound-absorbing effect; the visual effect is also very good and can match the banquet hall wall decoration.
1. Hanging on Ceiling: No track on the floor. The track is installed on the ceiling.
2. Easy to collect: Banquet room partitions can be hidden in a corner, not affecting the overall appearance.
3. Excellent Quality: Each movable partition piece can be rotated 360 degrees.
4. Secure and Stable: The folding door partition for banquet hall is stable and reliable.
5. Heat Insulation: With glass wool inside, banquet hall partition has good heat insulation performance.
6. Energy efficient: When large space is divided into small space, it reduce air conditioning power consumption.
7. Elegant appearance: Various finishes are available for soundproof room divider, so you can match the effect of interior decoration
8. Various application: Hotels, exhibition halls, restaurants, multi-purpose hall and so on
Partition wall detail analysis
1: Anti-skid groove is added in the single-wheel track, so that the lifting wheel can still slide smoothly under the condition of side deviation
2: Double wheel bearing 300KG
3:Rail multi-angle bevel cutting surface, no cracking using German imports inch industrial grade aluminum cutting machine cutting.45 90 180 bevel section, seamless joint using low-frequency modulation pulse MIG welding technology, no cracking.
4: Imported bearing, high speed, stable and smooth

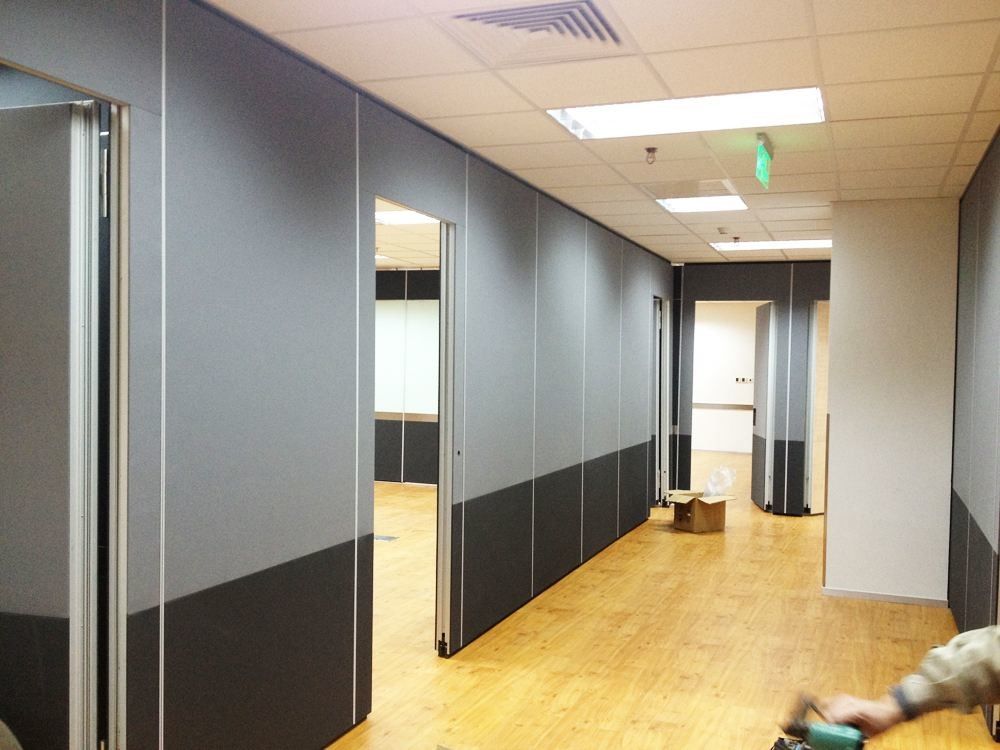

Installation site of partition wall
1: Installation track
Track is the base, is the priority among priorities of all links, through percussion drilling expansion screws, welding Angle iron and other steel materials fixed up.
2: Insert the door panel
The moving door panels are suspended in the rails without any support on the ground.
3: Installation and debugging
Free and flexible, move the door panels according to whatever you need to change the layout
4: Close against the wall
Convenient collection, save space
| Series | BG 65 | BG 85 | BG100 |
| Panel supension | Top hung only | Top hung only | Top hung only |
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Max height | 400 mm | 600 mm | 800 mm |
| Panel width | 600-1230 mm | 600-1230 mm | 600-1230 mm |
| Face material | 9 mm | 9 mm | 9 mm |
| Pass doors | Single Door or Double Door | ||
| Sound insulation | 20 – 32 db | 28 – 36 db | 32 – 50 db |
| Finish Material | Plywood / MDF /Laminate / Melamine / Gypsum | ||
| Board / Fabric / Insulation / Fireproof /Wall Paper /Vinyl /Painting /etc,(Customized) | |||
Cooperation steps
Step 1: send us an inquiry.
Step 2: send us detailed engineering drawings or dimensions.
Step 3: we offer solutions and quotes.
Step 4: negotiate and discuss details.
Step 5: place the order and arrange the deposit.
Step 6: make detailed construction drawings and review before production.
Step 7: determine the construction drawing and arrange production.
Step 8: quality control and inspection.(production pictures are provided for verification)
Step 9: arrange shipment after receiving the balance.
Step 10: provide installation drawings
Step 11: after sales service
