Hotel Operable Soundproof PVC Partition Wall Flexible Aluminium Frame

Hotel Operable Soundproof PVC Partition Wall Flexible Aluminium Frame

Product Details:

Place of Origin: China
Brand Name: Bunge
Model Number: 65 mm Movable Partition

Payment & Shipping Terms:

Minimum Order Quantity: 1 Square Meters
Price: USD 75-95/ Square Meter
Packaging Details: Carton package , Paper package
Delivery Time: 10 working days after received your down payment
Payment Terms: T/T, L/C, Western Union
Supply Ability: 5,000 Square Meters per Month
Get Best Price Contact Now

Detail Information

Product Name: Movable Partition Wall Surface: MDF,MEelamine
Drawing: Free Sample: Free
Thickness: 65 Mm Usage: Banquet Hall And Office
High Light:

movable walls on wheels

,

movable partitions systems

Product Description

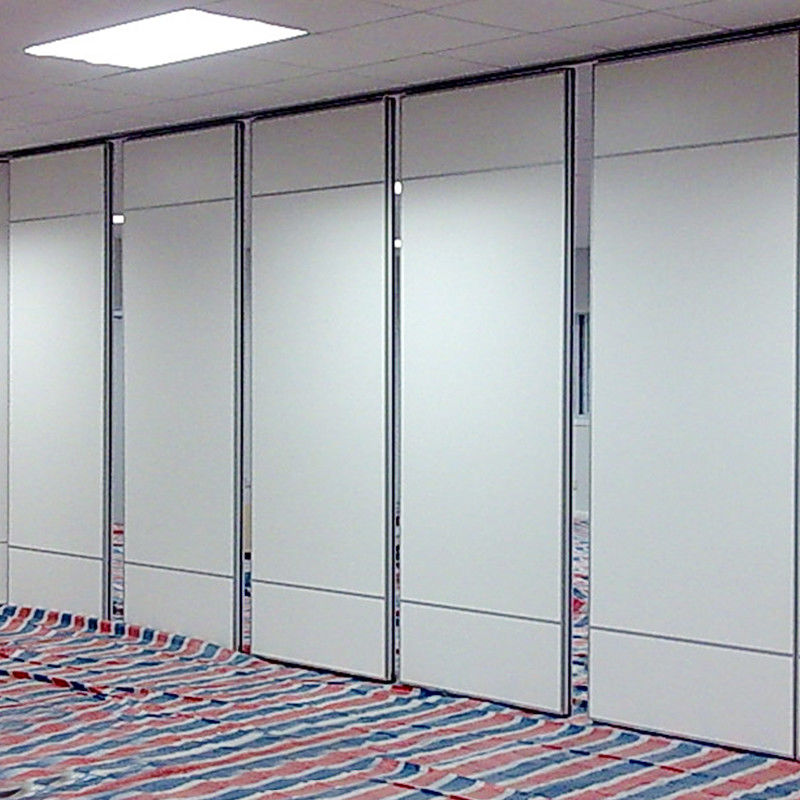

Hotel Flexible Aluminium Frame Operable Soundproof PVC Partition Wall



Acoustic Partition Walls Details



1. Acoustic partition wall is modernized decoration style. It can separate the space speedly and conveniently. And it has sound insulation and heat insulation function.


2. We can add single or double doors on the board for convenience.


3. The acoustic partition walls board is made from high density frame, special made rubber, excellent sound insulation cotton and finish board etc.


4. The finish board is inserted in the aluminum track, assembled with multi direction wheels; the board can be stored in may different ways.


5. Around the acoustic partition walls board,there is sound insulation rubber, it can help to insulate the sound entering.


6. Acoustic partition walls doesn’t need track on the floor, we only hang the track on the ceilings and it can be at the same plane with the false ceiling decoration.


7. The operation way is much easier, it’s better than the old ways which was use spring before.


8. We have many different finishes to meet customer different requirement and get different decoration effect.



Hotel Operable Soundproof PVC Partition Wall Flexible Aluminium Frame 0





Acoustic Partition Walls Advantages



1.Change the room space flexibly.
2. Heavy Track loading capacity make sure the safety of Partition.
3. Precise welding between separate rail can avoid repairing and maintenances in high probability.
4. Acoustic partition walls retract and push easily, only one person can handle the moving job.
5. Wide application: can be used in Office place, commercial place, exhibition place, Hospital place, etc.


How to install the acoustic partition walls



1. After the acoustic partition walls rail is transported to the construction site, the construction personnel should first understand the general decoration style of the site, including the ceiling shape, the ground shape, whether there is a skirt line on the wall, etc., timely communicate with the on-site woodworker, and then release the line to determine the track installation. position;



2. After the horizontal line is placed, the construction side will determine the layout direction of the air-conditioning duct fire-fighting pipe, and it is convenient to determine the steel structure installation form, whether it is a straight pull or a diagonal support or a U-slot fix. These are responsible installation teams. Do the preparation before the construction, otherwise work and do things, when the impact on the site construction layout, but also to rework, seriously affect the construction progress, will also bring unnecessary trouble to Party A;



3. After the acoustic partition walls track is installed, the track level will be self-checked again, and finally the steel structure will be rust-proofed, and then Party A will be notified and the position of the track movable port will be clearly stated. When the ceiling is clearly indicated, it cannot be fixed with the track. Otherwise, loading and unloading The door panel will likely damage the integrity of the ceiling.



Hotel Operable Soundproof PVC Partition Wall Flexible Aluminium Frame 1





Series BG 65 BG 85 BG100
Panel supension Top hung only Top hung only Top hung only
Panel thickness 65 mm 85 mm 100 mm
Max height 400 mm 600 mm 800 mm
Panel width 600-1230 mm 600-1230 mm 600-1230 mm
Face material 9 mm 9 mm 9 mm
Pass doors Single Door or Double Door
Sound insulation 20 – 32 db 28 – 36 db 32 – 50 db
Finish Material Plywood / MDF /Laminate / Melamine / Gypsum
Board / Fabric / Insulation / Fireproof /Wall Paper /Vinyl /Painting /etc,(Customized)



Hotel Operable Soundproof PVC Partition Wall Flexible Aluminium Frame 2
