Modern Top Hung Sound Proof Movable Partition Walls Panel Width 500-1200 mm
Product Details:
| Place of Origin: | China |
| Brand Name: | Bunge |
| Model Number: | 100 mm Movable Partition |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Square Meters |
|---|---|
| Price: | USD 75-95/ Square Meter |
| Packaging Details: | Carton package , Paper package |
| Delivery Time: | 10 working days after received your down payment |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 5,000 Square Meters per Month |
|
Detail Information |
|||
| Product Name: | Movable Partition Wall | Surface: | MDF,melamine,fabric,leather,wall Paper |
|---|---|---|---|
| Application: | Hotel Classroom ,banquet Hall | Drawing: | Free |
| Sample: | Free | Color: | Customized |
| High Light: | movable partitions systems,acoustic movable walls |
||
Product Description

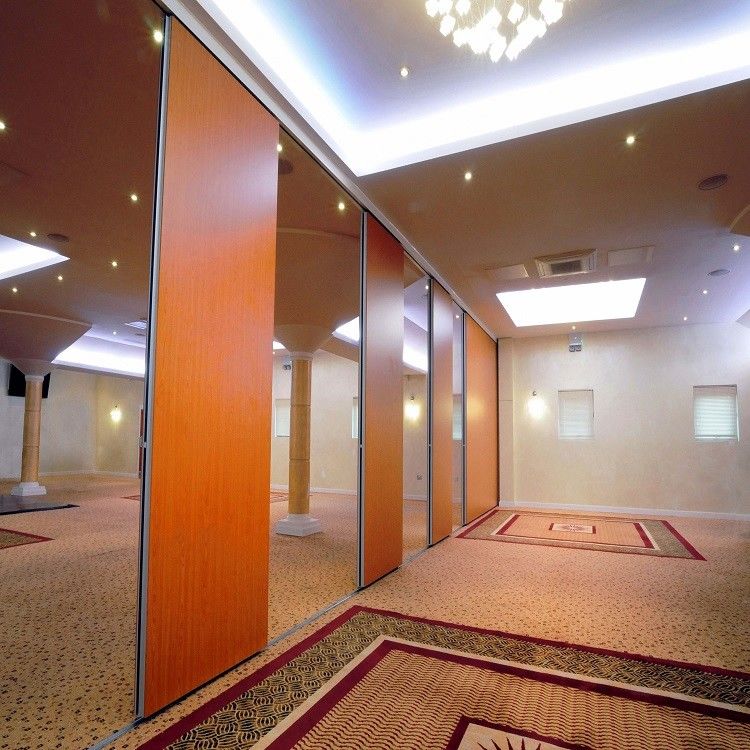

Acoustic Sliding Walls Movable Door Partition Walls For Hotel Conference Room
How to select the suitable movable wall for your site?
We have 3 types of movable wall , 65type , 85type , 100type . You can choose the right
movable wall upon the Height and Soundproof requirement as following,
65 type— Max height 3.5m, soundproof: 28dB to38dB
85 type— Max height:5.5m,Soundproof: 28dB to 42dB
100 type— Max height:7m,Soundproof: 32dB to 50dB
Technical Details
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Panel thickness | 65mm | 85mm | 100mm |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 500-1200 mm | 500-1200 mm | 500-1200 mm |
| Face material | 9mm | 9mm | 12 mm |
| Passdoors | Single door or Double door | ||
| Sound insulation | 28-38dB Rw | 28-42dB Rw | 32-50dB Rw |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc.(Customized) | ||
What you should do on site ?
A beam(truss) should built on site for track installation . The min distance leaving for track installation from false
ceiling to top ceiling is 180mm .
How to install ?
We will provide the installation manual and video guiding the installation job . We can also dispatch the installation
engineer supervising the installation as request .
What is lead time ?
The lead time is 7 days to 10 days .
How to transport ?
Sea transport is a common mode of transportation. In an emergency, can be air freight.
How do the goods packing ?
Partition board paper packaging, and finally packed in wooden carton.
The movable wall panel and track, fittings will be packed separately .
What is Procurement procedure ?
Firstly , send us the shop drawings(if the shop drawings is not available , you can tell us the height from false ceiling
to finished floor and width from wall to wall)
Secondly , we offer you the movable wall layout drawings for your confirmation
Thirdly , we quote the movable wall in accordance with confirmed drawings .
BUNGE partition movable freely, easy installation, good acoustic effect, nice surface treatment, anti corrosion.
Technical Description Feature
1. Change the room space flexibly.
2. Heavy Track loading capacity make sure the safety of Partition.
3. Precise welding between separate rail can avoid repairing and maintenances in high probability.
4. Partition retract and push easily, only one person can handle the moving job.
5. Wide application: can be used in Office place, commercial place, exhibition place, Hospital place, etc.
