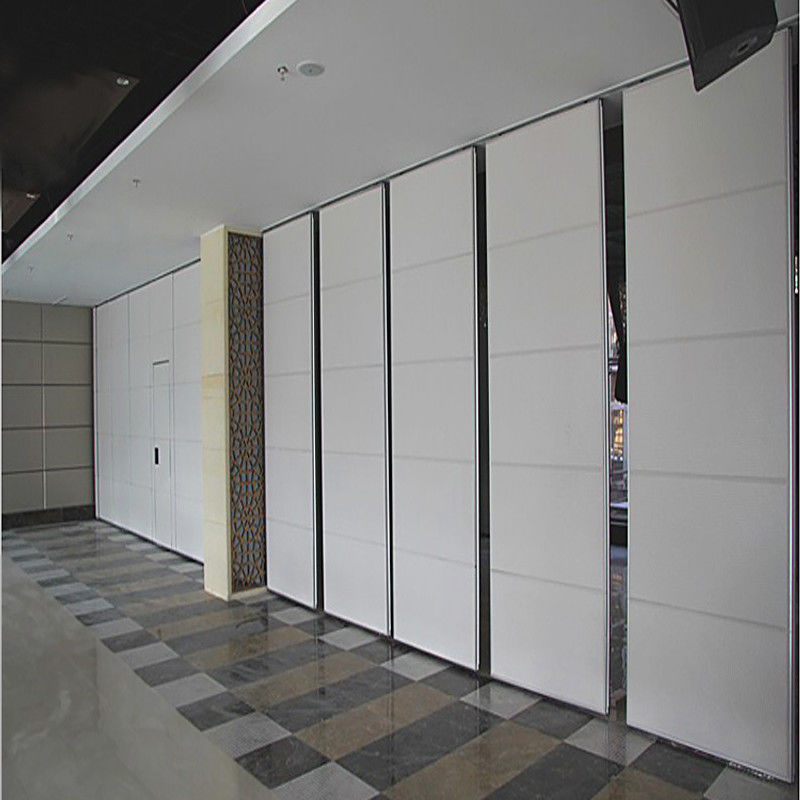

Five Star Hotel Movable Wall Operable Soundproof Folding Partition Wall For Banquet Hall
Our movable and operable partition system accessories are custom for each client and project,and they are also made of superior material.Track system for right-angled configurations with cross- roller carriers for element weights up to 500 kg. Support rollers in the junctions guarantee easy operation when sliding the elements across intersections .
Besides the high sound absorbing test,we have passed the Eco-protection test and Fireproof test,to ensure you to get the top quality product, and enjoy a safe , comfortable and low carbon emission way of life on movable and operable partition system.
Environmental protection and light material.
Top hung system without the need for a floor track.
Retractable top and bottom seals ensure effortless movement of panels.
Concealed or exposed panel edge profiles.
Numerous panel stacking options for complete flexibility.
Extensive range of surface finishes available, easy construction and transportation.
The system offers various levels of sound reduction.
Combines elegance with robust construction.
Improved sound insulation with a reduced wall thickness.
Space savings in the parking area.
Low specific weights with obvious structural advantages.
|Series||BG 65||BG 85||BG100|
|Panel supension||Top hung only||Top hung only||Top hung only|
|Panel thickness||65 mm||85 mm||100 mm|
|Max height||400 mm||600 mm||800 mm|
|Panel width||600-1230 mm||600-1230 mm||600-1230 mm|
|Face material||9 mm||9 mm||9 mm|
|Pass doors||Single Door or Double Door|
|Sound insulation||20 – 32 db||28 – 36 db||32 – 50 db|
|Finish Material||Plywood / MDF /Laminate / Melamine / Gypsum|
|Board / Fabric / Insulation / Fireproof /Wall Paper /Vinyl /Painting /etc,(Customized)|
Long-term use: with more economy and higher decorative, beautiful and safe, will not scratch the skin.
Cost savings: installation does not affect the construction of smallpox and the ground.
Various forms: optional with a variety of occasions partition wall, can be customized according to customer requirements.
Easy combination: in the re-assembly can make full use of building materials.
Material environmental protection: selection of high-quality melamine particleboard, sound insulation and sealing a good variety of accessories a variety of options.
Track: The tracks are made from extruded 6063 - T5 anodized aluminium. The track housing shall utilize grooves and interlocking steel pins for positive alignment of adjacent track sections, and shall be reinforced overhead by drop rod brackets. Aluminum track housing shall include an integral nut slot to accept a hardened square nut for attaching each drop rod bracket to the top of the track.
Panels:The Panels will be made from 12mm MDF boards and shall be 100mm thick and 1230mm maximum width, made to the appropriate acoustic rating and structural backing and mounted in full perimeter extruded aluminium frames with interlocking corner construction .The panel faces shall be finished with selected material.
Panel Surface Finish:The panel surface will be as per the clients requirement finished either in Sliwal factory – China or by others . The normal finish such as:laminate,veneer,melamine,fabric etc.
Seals: vinyl seal of butane rubber will be used as top and bottom and as well as closure seals for the operable wall system.Retractable seal drop will be 23mm.
