|Product Name:||Movable Partition Wall||Finish:||MDF,melamine,fabric,leather,wall Paper|
|Application:||Hotel Classroom ,banquet Hall||Sample:||Free|

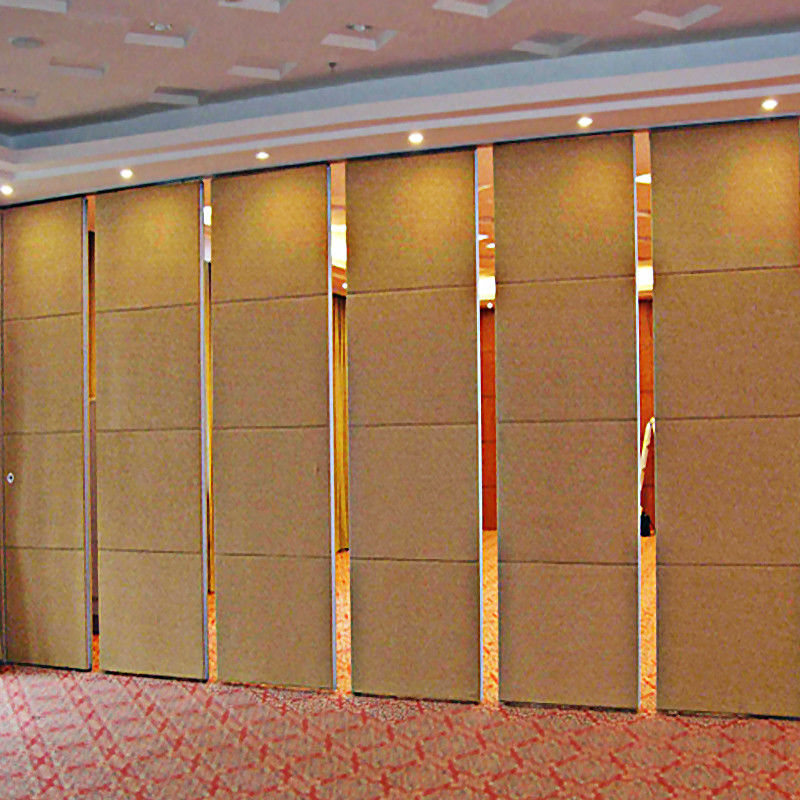

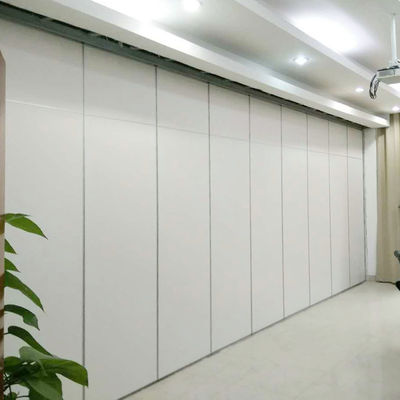

Moving Wall Acoustic Sliding Soundproofing Partition Wall For Conference Room
BUNGE Partition Wall Description
Our movable and operable partition system accessories are custom for each client and project,and they are also made of superior material.Track system for right-angled configurations with cross- roller carriers for element weights up to 500 kg. Support rollers in the junctions guarantee easy operation when sliding the elements across intersections.
Besides the high sound absorbing test,we have passed the Eco-protection test and Fireproof test,to ensure you to get the top quality product, and enjoy a safe , comfortable and low carbon emission way of life on movable and operable partition system.
(1)Size of wall: all panels should be installed in accordance with the manufacturers recommendations.
(2)Cutting: all necessary hardware and accessories for a complete job installation are to be furnished by the contractor.
(3)Install the acoustic panels: the installation of acoustic panels should be carried out in a sequence from the left to the right, from upside to downside, the panels are cut to fit on site, traditional woodworking tools are suitable for cutting the panels, if panels are cut using a fine tooth table saw the panels should be cut face up to avoid scratching and at a much slower speed to avoid any tearout or chipping.
(4)Fix on keel:
Wooden keel fixing using nails, staples or screws into prefixed timber battens on the walls via the tongue and groove joint.It also can fixing by: light steel keel.
Track: The tracks are made from extruded 6063 - T5 anodized aluminium. The track housing shall utilize grooves and interlocking steel pins for positive alignment of adjacent track sections, and shall be reinforced overhead by drop rod brackets. Aluminum track housing shall include an integral nut slot to accept a hardened square nut for attaching each drop rod bracket to the top of the track.
Panels:The Panels will be made from 12mm MDF boards and shall be 100mm thick and 1230mm maximum width, made to the appropriate acoustic rating and structural backing and mounted in full perimeter extruded aluminium frames with interlocking corner construction .The panel faces shall be finished with selected material.
Panel Surface Finish:The panel surface will be as per the clients requirement finished either in Sliwal factory China or by others . The normal finish such as:laminate,veneer,melamine,fabric etc.
Seals: vinyl seal of butane rubber will be used as top and bottom and as well as closure seals for the operable wall system.Retractable seal drop will be 23mm.
We can offer:
A full professional design service.
Survey and installation guide.
Using top quality materials and components.
A fully experienced work team.
Maintenance contracts to ensure your valuable asset remains in full work order.
|Series||BG 65||BG 85||BG100|
|Panel supension||Top hung only||Top hung only||Top hung only|
|Panel thickness||65 mm||85 mm||100 mm|
|Max height||400 mm||600 mm||800 mm|
|Panel width||600-1230 mm||600-1230 mm||600-1230 mm|
|Face material||9 mm||9 mm||9 mm|
|Pass doors||Single Door or Double Door|
|Sound insulation||20 – 32 db||28 – 36 db||32 – 50 db|
|Finish Material||Plywood / MDF /Laminate / Melamine / Gypsum|
|Board / Fabric / Insulation / Fireproof /Wall Paper /Vinyl /Painting /etc,(Customized)|
