Hanging System Movable Folding Partition Doors / Foldable Wall Panels
Product Details:
| Place of Origin: | Guangzhou, China |
| Brand Name: | EBUNGE |
| Certification: | ISO9001 |
| Model Number: | 85 mm movable partition walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | No MOQ, small quantity welcomed |
|---|---|
| Price: | US $78-95 per square meter |
| Packaging Details: | Paper carton, outside with wooden boxes |
| Delivery Time: | 12-20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000 square meters per month |
|
Detail Information |
|||
| Product Name: | Movable Partition Walls | System: | Hanging System |
|---|---|---|---|
| Color: | Accept Customized | Application: | Hotel Banquet Hall Partitions |
| Pass Door: | Single Or Double | Advantages: | No Floor Tracks |
| High Light: | movable walls on wheels,acoustic movable walls |
||
Product Description

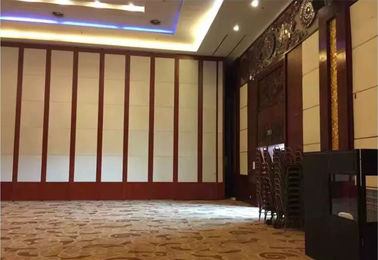

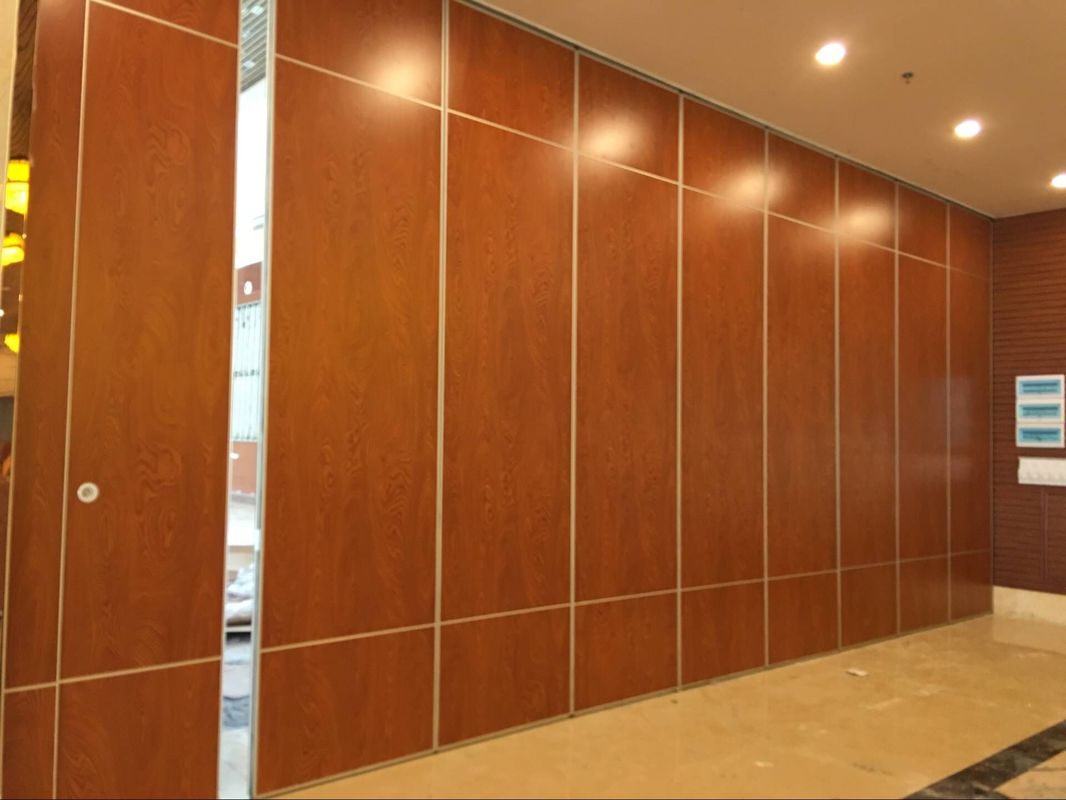

Acoustic Foldable Wall Panels Movable Folding Partition Doors for Hotel Banquet Hall
Movable partition walls features
◆The banquet hall movable partition walls are a hanging system,can be hidden upon drop ceiling, won’t see any tracks on the finish floor.
◆Easy to collect,all of the movable partition walls panels can be collected in a certain cabinet by one person quickly and conveniently, when a large space need to be recovered.
◆ The surface of the banquet hall movable partition walls can be customized, can match the decoration style of the whole space.
◆Numerous panel stacking options for complete flexibility
◆The banquet hall movable partition walls are sound proofing,can up to various levels of sound reduction.
◆The banquet hall movable partition walls are made of high quality 6063-T5 aluminum materials,all of them are strong and wear resistant.
Movable partition walls accessories
Tracks:Made of good quality anodized aluminium 6063-T5 materials,hanging the movable panels with wheels.
Wheels/Rollers:It is the carrier for the movable partition walls,let the panels move more flexibly.Pulley bearing is more than 1600 KGS.
Connectors:Made of anodized aluminium 6063-T5 aluminum tracks,“L”, “T”, “＋”types are available.
Rubber/vinyl seal:Made of Nitrile Butadiene Rubber(NBR+PVC),durable and perfect for sound insulation,wear-resistant.
Rock Wool:Density of 60kg/m3,help us reduce the noise and heat.
Handle:Operate the retractable being up and down.
Retractable mechanism:Control the movement of the top and bottom seal to form a excellent sound insulation performance.
Magnetic Strip:Ferrite plastic magnetic material will be used in between aluminum profiles to enhance acoustic performance of the movable partition walls.
MDF board:9 mm thickness,density of 760kg/m3,absorbent thickness expansion rate is less than 15%.Formaldehyde emission is 34mg/100g.
Movable partition walls technical information
| Model | BG65 | BG85 | BG100 |
| Suspension system | Aluminum hanging | Aluminum hanging | Aluminum hanging |
| Basic thickness | 65mm | 85mm | 100mm |
| Total thickness | 65/75/85/95mm | 80/90/100/110mm | 100/120/130mm |
| Max height | Up to 3800mm | Up to 6000mm | Up to 8000mm |
| Width | 600-1230mm | 600-1230mm | 800-1230mm |
|
Floor/ceiling sealing strength |
Telescopic aluminum tube with rubber strip | ||
|
Side walls sealing strength |
Double seal tape | ||
| Sound insulation level | 26dB-30dB | 28dB-34dB | 32-40dB |
Movable partition walls applications
Banquet hall moavble partition wall is a range of acoustically high-performance creating the most flexible space in offices, meeting room, schools, colleges, churches, hotel meetings, restaurants, shops, hotels, inspection centers, multi-function rooms, stations, clubs, art centers, stadiums, sports centers, art museums, the court, convention centers, golf clubs, and functional suites.
With high levels of sound attenuation and custom parking, movable partition wall provides a range of solutions for even the most complex requirements.
