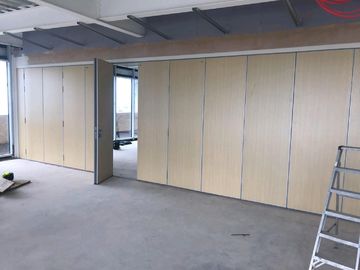

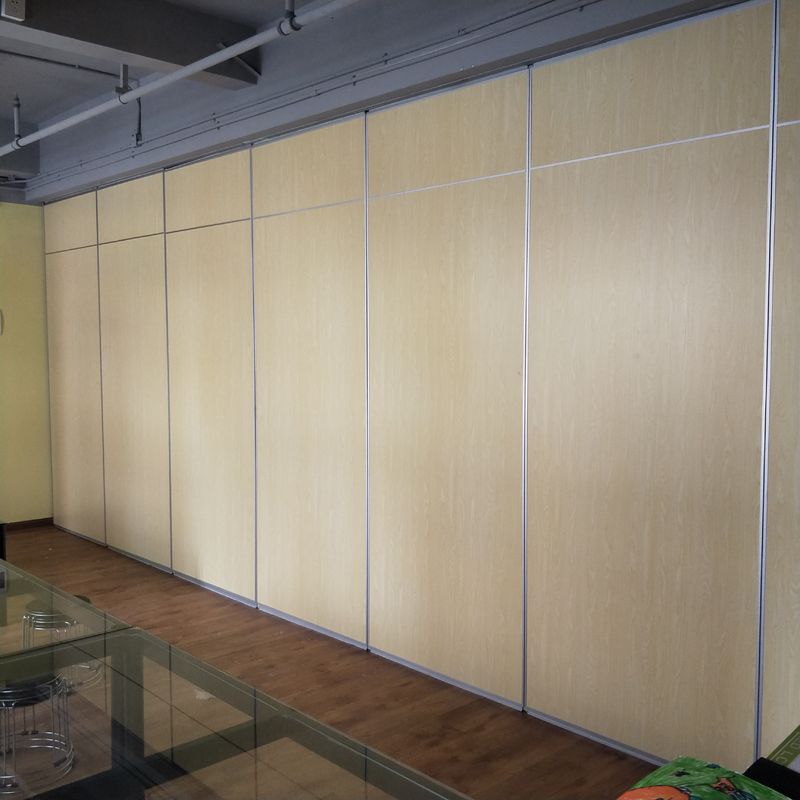

Modern Design Sliding Folding Partitions Acoustic Movable Partition Walls
Product Details:
| Place of Origin: | Guangzhou, China |
| Brand Name: | EBUNGE |
| Certification: | ISO9001 |
| Model Number: | 85 mm movable partition walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | No MOQ, small quantity welcomed |
|---|---|
| Price: | US $78-95 per square meter |
| Packaging Details: | Paper carton, outside with wooden boxes |
| Delivery Time: | 12-20 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000 square meters per month |
|
Detail Information |
|||
| Product Name: | Movable Partition Walls | Finish: | Laminate |
|---|---|---|---|
| Color: | Accept Customized | Inner Material: | Sound Insulation Cotton |
| Pass Door: | Single Or Double | Open Style: | Sliding |
| High Light: | movable partitions systems,acoustic movable walls |
||
Product Description
Modern Design Sliding Folding Partitions Acoustic Movable Partition Walls
Movable partition walls accessories
Tracks:Made of good quality anodized aluminium 6063-T5 materials,hanging the movable panels with wheels.
Wheels/Rollers:It is the carrier for the movable partition walls,let the panels move more flexibly.Pulley bearing is more than 1600 KGS.
Connectors:Made of anodized aluminium 6063-T5 aluminum tracks,“L”, “T”, “＋”types are available.
Rubber/vinyl seal:Made of Nitrile Butadiene Rubber(NBR+PVC),durable and perfect for sound insulation,wear-resistant.
Rock Wool:Density of 60kg/m3,help us reduce the noise and heat.
Handle:Operate the retractable being up and down.
Retractable mechanism:Control the movement of the top and bottom seal to form a excellent sound insulation performance.
Magnetic Strip:Ferrite plastic magnetic material will be used in between aluminum profiles to enhance acoustic performance of the movable partition walls.
MDF board:9 mm thickness,density of 760kg/m3,absorbent thickness expansion rate is less than 15%.Formaldehyde emission is 34mg/100g.
Movable partition walls technical information
| Model | BG65 | BG85 | BG100 |
| Suspension system | Aluminum hanging | Aluminum hanging | Aluminum hanging |
| Basic thickness | 65mm | 85mm | 100mm |
| Total thickness | 65/75/85/95mm | 80/90/100/110mm | 100/120/130mm |
| Max height | Up to 3800mm | Up to 6000mm | Up to 8000mm |
| Width | 600-1230mm | 600-1230mm | 800-1230mm |
|
Floor/ceiling sealing strength |
Telescopic aluminum tube with rubber strip | ||
|
Side walls sealing strength |
Double seal tape | ||
| Sound insulation level | 26dB-30dB | 28dB-34dB | 32-40dB |
Movable partition walls features
◆Junction of movable partition walls modules meet requirements for corner, three or four way abutments.
◆The movable partition wall is a hanging system.Top hung without track at floor level.
◆ Retractable acoustic seals at top and bottom, operated either by quick release handle or semi-automatically with electronic controls.
◆Movable partition walls panel finishes include vinyl, veneer, melamine laminate, a magnetic dry wipe enamelled writing surface or paint.
◆Single or two point suspension for centre or remote parking options.
◆The movable partition walls are made of high quality 6063-T5 aluminum materials,all of them are strong and wear resistant.
Movable partition walls applications
The movable partitions consist of a series of concave/convex profile interlocking flat panels and the fast set retractable top and bottom seals ,its provide excellent acoustic insulation property of from STC-32 to 53 in laboratory setting.
Its high performance per dollar value and the easiest in-field operation makes it very suitable for all of the public places.
The movable acoustic partition walls are widely used in hotel,auditorium,Gym,office,meeting rooms,exhibition halls,conference rooms,international convention centers,KTV,upscale restaurants,classroom,schools,hospitals,multi-purpose hall and other public places .
