|Product Name:||Movable Partition Wall||Surface:||MDF|
|Usage:||Hotel Classroom ,banquet Hall||Drawing:||Free|

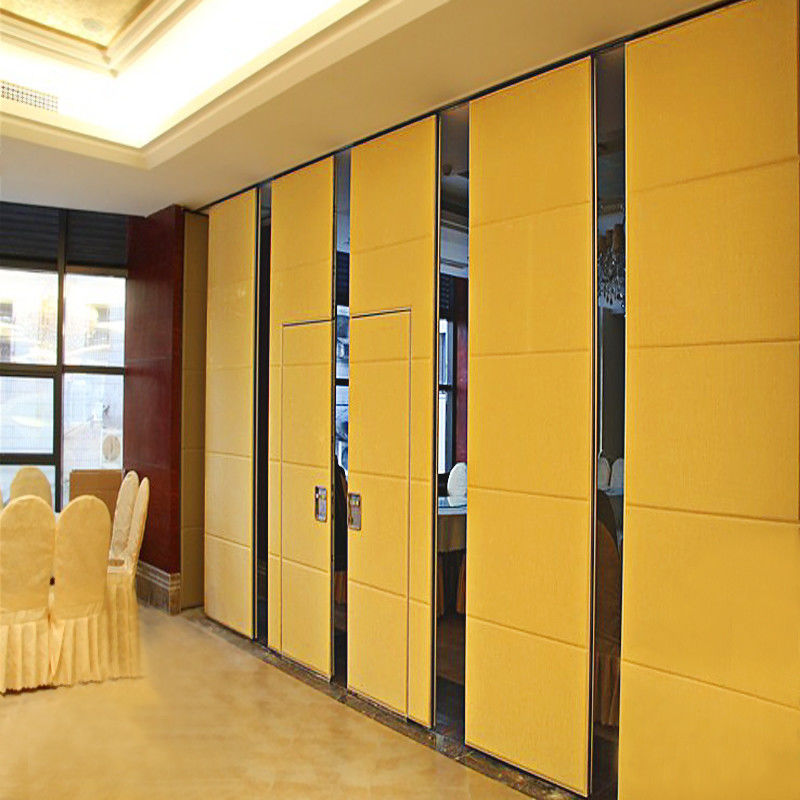

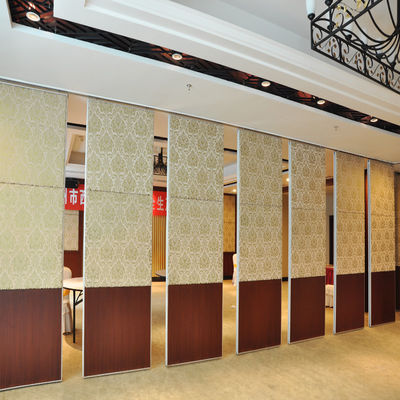

Hotel Classroom Folding Partition Acoustic Movable Partition Wall Panel For Banquet Room
BUNGE partition wall description
Movable partition wall, does not destroy the wall ground, removable mobile, security and stability, the main framework adopts aluminum magnesium alloy materials, solid and stable structure.Through electrostatic spraying and wood grain transfer printing technology makes the frame color and texture rich variety.Can be used as a whole plate, art glass and other materials to create different styles of decoration type multipurpose partition wall.
● Effective fire prevention: adopt efficient fire protection materials, fire prevention performance good;
● The beauty is generous: arbitrary surface decoration, and indoor decorative effect;
● Be flexible: clapboard and freely, promote flexible and one partition the whole process can be completed
● Stable Safety: solid and reliable after partition, easy swing;
● Environmental noise: the effect of noise, the maximum noise factor of up to 50dB
a wide range of applications, can be used in conference rooms, exhibition halls, restaurants, and other high-clean factories and office space
banquet room partition wall can flexible to separated large space into many small room,it is a modern equipment that have a good sound proofing effect ,thus partition wall can meet the need of diversification of architectural interior space function
Components of Sliding Partition Walls
Tracks: Made of good quality anodized aluminium 6063-T5 materials,hanging the movable partition walls with wheels.
Wheels/Rollers: It is the carrier for the movable partition walls ,let panels move more flexibly.Pulley bearing is more than 1600 KGS.
Connectors: Made of anodized aluminium 6063-T5 aluminum tracks,“L”, “T”, “＋”types are available.
Rubber/vinyl seal: Made of Nitrile Butadiene Rubber(NBR+PVC),durable and perfect for sound insulation,wear-resistant.
Rock Wool: Density of 60kg/m3,help us reduce the noise and heat.
Handle: Operate the retractable being up and down.
Retractable mechanism: Control the movement of the top and bottom seal to form a excellent sound insulation performance.
Magnetic Strip: Ferrite plastic magnetic material will be used in between aluminum profiles to enhance acoustic performance of the movable partition walls.
MDF board: 9 mm thickness,density of 760kg/m3,absorbent thickness expansion rate is less than 15%.Formaldehyde emission is 34mg/100g.
|Panel suspension||Top hung only||Top hung only||Top hung only|
|Panel width||500-1200 mm||500-1200 mm||500-1200 mm|
|Face material||9mm||9mm||12 mm|
|Passdoors||Single door or Double door|
|Sound insulation||28-38dB Rw||28-42dB Rw||32-50dB Rw|
|Finish Material||Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc.(Customized)|
