|Product Name:||Movable Partition Wall||Surface:||MDF|

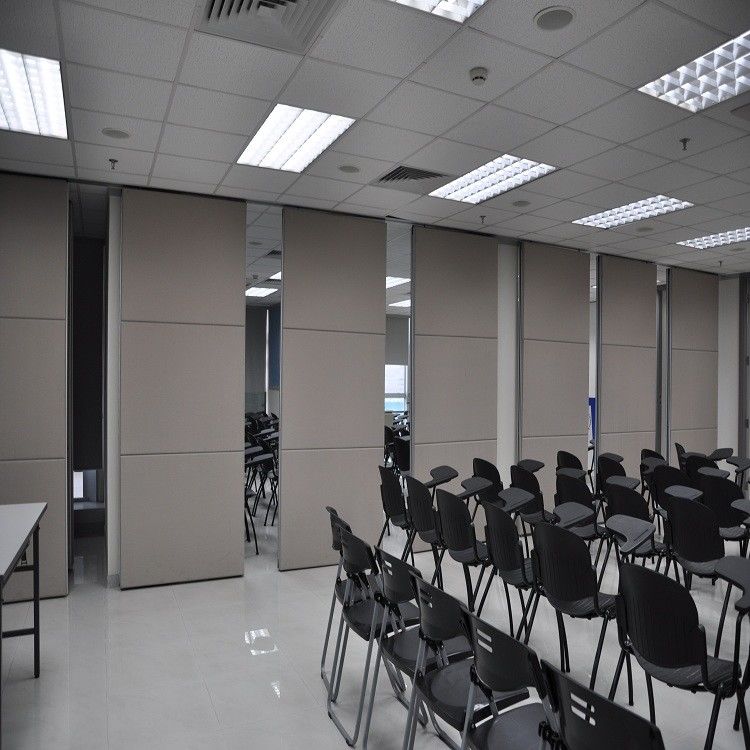

2019 New Modern Hotel Office Sound Proof Conference Meeting Show Room Movable Wall Partition
>>Panel suspension: Movable, top hung system without the need for a floor track
>>Panel width: Each panel 600mm to 1200mm
>>Roller on panel: Single roller or double roller
>>Soundproof rate: 32Db, 38dB,43dB,48dB,53dB Rw
>>Panel Frames: Heavy-duty steel-gusseted aluminum inner frames reinforced with full height
>>Track: Aluminum track or steel track
>>Top & bottom seals: Top and bottom pressure retractable seals ensure effortless moved and locked.
>>Panel stacking: Numerous panel stacking options for complete flexibility
>>Panel surface: MDF, Plywood, Wall paper, Fabric, Leather, Natural wood veneer, Melamine, Wood moldings, etc.
Partitions shall be top supported, manually operated panels stacked in an area nominated in the plans. When closed, the operable wall shall provide a complete sound retardant barrier. No floor track shall be used.
The tracks are made from extruded 6063 - T6 anodized aluminum. The track housing shall utilize grooves and interlocking steel pins for positive alignment of adjacent track sections, and shall be reinforced overhead by drop rod brackets. Aluminum track housing shall include an integral nut slot to accept a hardened square nut for attaching each drop rod bracket to the top of the track.
BUNGE Centre/ Side /Remote stacking system with a Two wheeled nylon trolley made with the base Material of POM 45 tempered steel shall be used as per approved stacking method.
Vinyl seal of butane rubber will be used as top and bottom and as well as closure seals for the operable wall system. Retractable seal drop will be 23mm.
Acoustic insulation Material: Rockwool sound absorption glass fiber shall be used.
Magnetic Strip: Ferrite plastic magnetic material will be used in between aluminum profiles to enhance acoustic performance of the wall.
The panels will be stacked as per the agreed method and in accordance with the architetural plan. Centre stacking arrangement will be utilized for the subject project.
1. Change the room space freely dividly.
2. Heavy Track loading capacity make sure the safety of Partition .
3. Precise welding between separate rail can eliminate repairing and maintenance rate .
4. Partition retract and push easily for one people to handle the operating work .
5. Wide application: can be used in Office place , commercial place , exhibition place , Hospital place .
|Panel suspension||Top hung only||Top hung only||Top hung only|
|Panel width||500-1200 mm||500-1200 mm||500-1200 mm|
|Face material||9mm||9mm||12 mm|
|Passdoors||Single door or Double door|
|Sound insulation||28-38dB Rw||28-42dB Rw||32-50dB Rw|
|Finish Material||Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc.(Customized)|
