Conference Room Sliding Partition Walls , Restaurant Movable Wooden Soundproof Partition Wall

China Conference Room Sliding Partition Walls , Restaurant Movable Wooden Soundproof Partition Wall supplier
Conference Room Sliding Partition Walls , Restaurant Movable Wooden Soundproof Partition Wall supplier Conference Room Sliding Partition Walls , Restaurant Movable Wooden Soundproof Partition Wall supplier Conference Room Sliding Partition Walls , Restaurant Movable Wooden Soundproof Partition Wall supplier

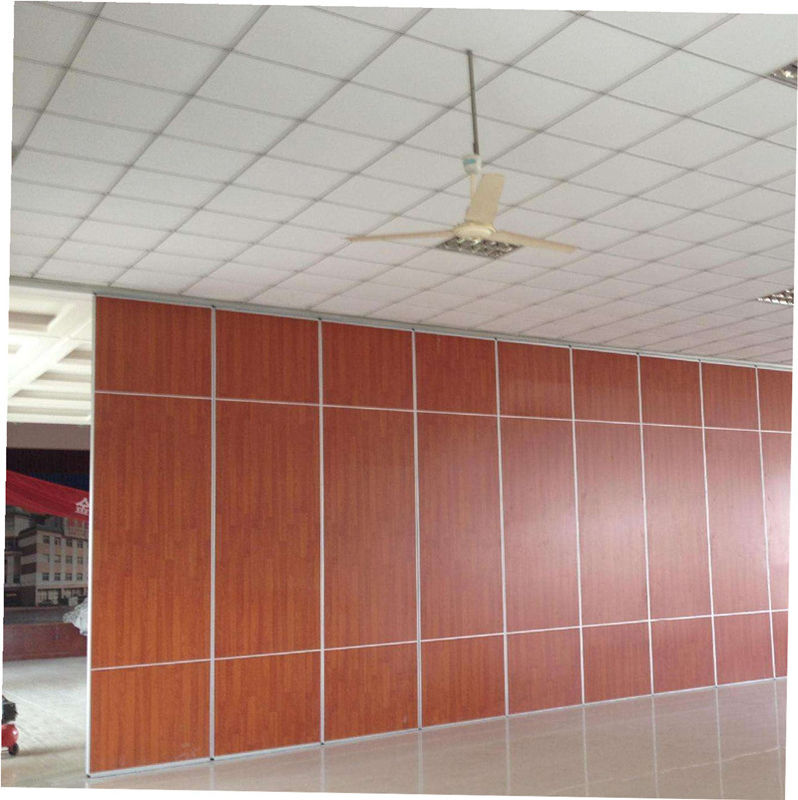

Large Image :  Conference Room Sliding Partition Walls , Restaurant Movable Wooden Soundproof Partition Wall

Product Details:

Place of Origin: Guangzhou, China
Brand Name: EBUNGE
Certification: ISO9001
Model Number: 85 mm sliding partition walls

Payment & Shipping Terms:

Minimum Order Quantity: No MOQ, small quantity welcomed
Price: US $79-105 per square meter
Packaging Details: Paper carton, outside with wooden boxes
Delivery Time: 12-20 days
Payment Terms: T/T, Western Union
Supply Ability: 50000 square meters per month
Contact Now
Detailed Product Description
Product Name: Sliding Partition Walls Feature: Soundproof Partitions
Application: Conference Room Partitions Operation: Top Hung Without Floor Track
Finish: Melamine Thickness: 85 Mm(2 9/16 Inch)

Restaurant Movable Wooden Soundproof Partition Walls Conference Room Sliding Partition Walls



Sliding partition walls operation



The continuously hinged panels are pulled from their parked position to 'close' (or extend) the wall and pushed back to the parked position to 'open' (or fold)the wall. Final flat alignment of wall panels is assisted pneumatically by a gas piston located in the top track. A lever or recess handle is fitted to the lead panel and this combined with a vertical rebated profile provides the system with its pass door. The door is available with or without a lock cylinder.



Sliding partition walls panel with double rollers can be stacked in a variety of positions.Panels with single roller may be parked to one or both sides of the opening.





Our easy lock-up set.

Retractable pressure seals on top and bottom are extended and retracted by a single 180°turn removable operating handle.



Retractable Pressure Seals.

Once the sliding partition walls panel is positioned, they are sealed in place with retractable pressure seals.



Telescopic sleeve panel.

Final closure of the sliding partition wall is achieved by extending a telescopic sleeve on the last panel. The sweep strip simultaneously extends the top and bottom. The rubber sealing strip on the side edge of telescopic panelcan seal the sliding partition wall tightly to reach acoustic integrity.





Sliding partition walls details



How to select the suitable sliding partition walls for your site?


We have 4 types of sliding partition walls,65type,80type,100type and 125 ultra-high type. You can choose the right sliding partition walls upon the Height and Soundproof requirement as following.


BG65-- Max height 3.5m, soundproof: 38dB to 43dB


BG85--Max height:5.5m,Soundproof: 43dB to 53dB



BG100--Max height:7m,Soundproof: 43dB to 58dB


Ultra-height Type---Max height:17m,Soundproof: 38dB to 48dB


What you should do on site?


A beam(truss) should built on site for track installation.The min distance leaving for track installation from false ceiling to top ceiling is 200mm.


How to install?


We will provide the installation manual and video guiding the installation job. We can also dispatch the installation engineer supervising the installation as request.


What is lead time?


The lead time is 7 days to 10 days.


How to transport?


Sea transport is a common mode of transportation. In an emergency, can be air freight.



How do the goods packing?


Corrugating paper packaging, MDF batten cover all around corner.


The sliding partition walls panel and track, fittings will be packed separately.


What is Procurement procedure?


Firstly, send us the shop drawings(if the shop drawings is not available, you can tell us the height from false ceiling to finished floor and width from wall to wall).


Secondly, we offer you the sliding partition walls layout drawings for your confirmation.


Thirdly, we quote the sliding partition walls in accordance with confirmed drawings.



What is finishing face?


The bottom panel is MDF or plywood, which is unfinished face. You can do decoration on site, such as wallpaper, paint, etc.


We can also provide the product with finished face, such as faux wood, Woven fabric and Leather.





Sliding partition walls technical details



Panel Suspension
Top hunge system without the need for a floor track.
Panel Width
Each panel 600mm-1200mm.
Track
Aluminum OR Steel Track
Roller on panel
Single or Double Roller
Panel Frames
Heavy-duty steel-gusseted aluminum inner frames reinforced with full height.
Top&bottm seals
Top and bottom pressure retractable seals ensure effortless moved and locked.
Module
700mm - 1200mm maximum.
Panel stacking
Numerous panel stacking options for complete flexibility.
Panel face
MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc.
Finishes
Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard.
