Payment & Shipping Terms:
|Finish:||Melamine ,fabric，MDF,Leather||Produce Name:||Hotel Partition Wall|
|Thickness:||65 Mm||Application:||Auditorium，banquet Hall,hotel|
|Style:||Soundproof Material||Service:||OEM ODM|

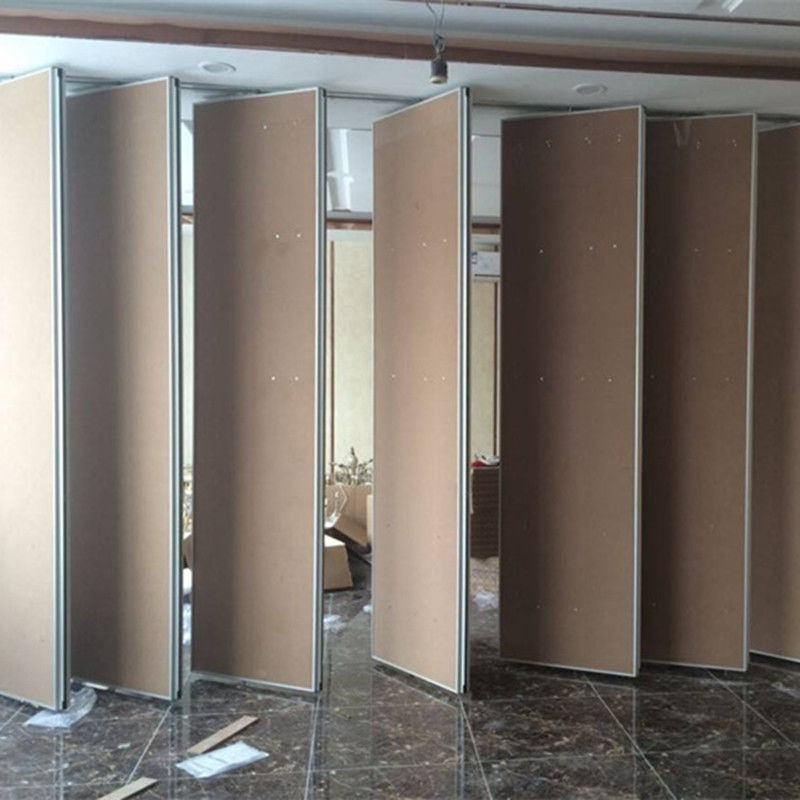

Office Wooden Wood Movable Cost Operable Partition Wall For Room Division
Guangzhou Bunge Building Decoration Engineering Co., Ltd is a professional company in manufacturing Movable Partitions. It also artistically designs and carefully does research and development (R&D). The company has adopted the advance partition technology of USA, Germany and Denmark. We have professional staff with more than 10 years of experience in design, production and installation.
Our products (Movable Partitions) are widely used in the hotel banquet halls, meeting rooms, exhibition halls, conference rooms, International Convention Centers, KTVs, upscale restaurants, office buildings, schools, hospitals and others.
Nowadays, the modern trend in buildings needs more flexibility and convenience to use the space of their rooms. Most of the building designers like to prepare open plan space, sound proof effect, and easy to operate. The solution of the designers need is the Movable Partition.
Bunge Movable Partition Products are as follow:
1. Ordinary Type: 65, 85; 100;
2. High Sound Proof Type: 85, 100;
3. Heavy Duty Type: 100, 125SH;
4. Glass Type: 65 (Glass Clip); 65 & 85(Aluminum Frame).
A full professional design service
Survey and installation guide
Using top quality materials and components
A fully experienced work team
Maintenance contracts to ensure your valuable asset remains in full work order.
|Series||BG 65||BG 85||BG100|
|Panel supension||Top hung only||Top hung only||Top hung only|
|Panel thickness||65 mm||85 mm||100 mm|
|Max height||400 mm||600 mm||800 mm|
|Panel width||600-1230 mm||600-1230 mm||600-1230 mm|
|Face material||9 mm||9 mm||9 mm|
|Pass doors||Single Door or Double Door|
|Sound insulation||20 – 32 db||28 – 36 db||32 – 50 db|
|Finish Material||Plywood / MDF /Laminate / Melamine / Gypsum|
|Board / Fabric / Insulation / Fireproof /Wall Paper /Vinyl /Painting /etc,(Customized)|
Components of Office Partition Walls
Tracks: Made of good quality anodized aluminium 6063-T5 materials,hanging the office partition walls with wheels.
Wheels/Rollers: It is the carrier for the office partition walls ,let panels move more flexibly.Pulley bearing is more than 1600 KGS.
Connectors: Made of anodized aluminium 6063-T5 aluminum tracks,“L”, “T”, “＋”types are available.
Rubber/vinyl seal: Made of Nitrile Butadiene Rubber(NBR+PVC),durable and perfect for sound insulation,wear-resistant.
Rock Wool: Density of 60kg/m3,help us reduce the noise and heat.
Handle: Operate the retractable being up and down.
Retractable mechanism: Control the movement of the top and bottom seal to form a excellent sound insulation performance.
Magnetic Strip: Ferrite plastic magnetic material will be used in between aluminum profiles to enhance acoustic performance of the office partition walls.
MDF board: 9 mm thickness,density of 760kg/m3,absorbent thickness expansion rate is less than 15%.Formaldehyde emission is 34mg/100g.
