|Product Name:||Folding Partition Walls||Style:||Sliding|
|Application:||Office Partition Walls||Size:||Movable Walls Customized|
|Color:||Accept Customized||Feature:||Sound Proofing|

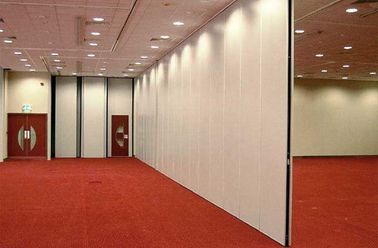

Accordion Office Fabric Sound Proof Sliding Movable Demountable Folding Partition Walls
Folding partition walls details
Folding partitions wall markets a wide range of space division solutions including Moveable Glass Walls, Operable Partitions, and Accordion Doors.Modernfold partitions help architects, interior designers, and building owners more efficiently utilize a space.
Our folding partition walls are used in a number of different applications to deliver greater functionality and sound control, including office buildings, gymnasiums, classrooms, hotels, hospitals, retail, banks, and conference and exhibition centers. Modernfold never loses sight of the fact that each project is unique and demands individualized attention to design, product selection, installation, and service.
The extension range under the folding partition wall is 20-25mm to ensure that the partition wall can be pushed and pulled without obstacles. When partition wall is pushed pull when proper position, need to rotate make a hand 180 degrees make fluctuation and telescopic mechanism is sealed with smallpox and ground respectively, in order to enhance the sound insulation effect of the product
After pushing and pulling of the last screen to proper position, because need is sealed fluctuation is pressed, make the telescopic position that has 150mm between last screen and wall, need is in at this moment telescopic board face rotates make a hand to make between screen and folding partition wall complete seal.
Folding partition walls features
1.Folding portable partition walls can separate the space speedy and conveniently.
2.Top hung system without the need for a floor track.
3.Folding partition wall is made from high density aluminum frame, special made rubber, excellent sound insulation cotton and finish surface, etc.
4.Around the panel, there is sound insulation rubber, it can help to insulate the sound entering.
5.The folding partition walls finished panel is hanging on the aluminum track, assembled with muti direction wheels.
|Modernized Soundproof Folding Partition Walls|
|1.Hanging on ceiling||The floor without a track, just put the rail mounted on the ceiling|
|2.Excellent Quality||Each pieces of folding partition walls can turn around 360 degree.|
|3.Stable and secure||After folding partition wall is stable and reliable, and is not easy to swing|
|4.Energy efficient||The large space divided into a small space, in order to reduce air conditioning power consumption;|
|5.Heatproof&fireproof||Good heat insulation performance, Adopt effective fire prevention materials|
|6.Elegant appearance||Surface any adornment, can unite with indoor adornment effect|
|7.Easy to collect||Can be hidden in the special coffer, does not affect the overall appearance|
|8.Various applications||Hotels, exhibition halls, restaurants, multi-functional rooms etc.|
Folding partition walls technical informations
|Series||BG65||BG80 / BG85||BG100 & BG125|
|Panel suspension||Top hung only||Top hung only||Top hung only|
|Track system||Single or twin point||Single or twin point||Single or twin point|
|Panel thickness||65mm||80mm / 85mm||100mm|
|Panel height||Up to 4000mm||Up to 6000mm||Up to 18000mm|
|Frame construction||Aluminum frame||Aluminum frame||Aluminum frame|
|Face material||9mm||9mm / 12mm||12mm|
|Fire safety||Optional Class I or O||Optional Class I or O||Optional Class I or O|
|Vertical profiles||Aluminum anodised with sealing profiles||Aluminum anodised with sealing profiles||Aluminum anodised with sealing profiles|
|Retractable seals||Aluminum black with
double rubber seals
|Aluminum black with double rubber seals||Aluminum black with double rubber seals|
|Operation of seals||Manual, with supplied
|Manual, with supplied operating handle||Manual, with supplied operating handle|
|Locking||Optional lock to pass doors||Optional lock to pass doors||Optional lock to pass doors|
|Pass doors||Single open in panel or
double open in two panel
|Single open in panel or double open in two panel||Single open in panel or double open in two panel|
|Sound insulation||20-32dB Rw||28-36dB Rw||32-50dB Rw|
|Weight||Approx 22-35kg/sq M||Approx 25-40kg/sq M||Approx30-48kg/sq M|
|Finish Material||Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized)|
