Acoustical Folding Partition Walls For Auditorium / Exhibition Hall

China Acoustical Folding Partition Walls For Auditorium / Exhibition Hall supplier
Acoustical Folding Partition Walls For Auditorium / Exhibition Hall supplier Acoustical Folding Partition Walls For Auditorium / Exhibition Hall supplier Acoustical Folding Partition Walls For Auditorium / Exhibition Hall supplier Acoustical Folding Partition Walls For Auditorium / Exhibition Hall supplier

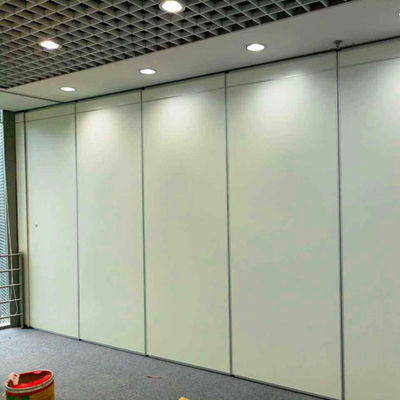

Large Image :  Acoustical Folding Partition Walls For Auditorium / Exhibition Hall

Product Details:

Place of Origin: China(mainland)
Brand Name: EBUNGE
Model Number: 100 SERIES Partitions wall

Payment & Shipping Terms:

Minimum Order Quantity: No MOQ
Price: USD 75-90 Square meters
Packaging Details: Partition board paper packaging, and finally packed in wooden carton
Delivery Time: 15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000 Square meters per month
Contact Now
Detailed Product Description
Produce Name: Movable Partitions Wall Finish: Melamine ,fabric,MDF
Thickness: 100 Mm Application: Office, Church,Auditorium,banquet Hall,hotel
Advantage: Soundproof,Sliding ,movable,folding Style: Soundproof Building Material

Popular Retractable Acoustical Sound Insulation Operable Movable Wall Partition Panel For Banquet Hall



BUNGE partition wall description

Sliding Partition Wall is aluminum framed wall, tongue-and-groove unitized wall panel system,used to cut the big space to small room for different function.Let us assist you get the best flexible solution for your place and turn the room you have into the space you love.Usually the sliding door is used in big area like multi-purpose hall,conference hall,stadium,exhibition hall and so on.



We offer:

A full professional design service
Pre-sale consulant
Using top grade materials and components
Survey and installation guide and supervision
A rich experienced work team
Maintenance contracts- to ensure your valuable asset remains in good condition


Application​

Conference rooms
Training rooms
Call Center
Reception areas
Hotel
Stadium
Exhibition Hall
Restaurant
Gymnastics



Features&Benefit

Strong aluminium frame construction for demanding environments.
Hinged paired panel or Mono panel meets your different requirement
Wide range of surface finishings for your choice.
Passdoor incorporated enabling access to adjoining rooms.
Parking one or both ends.
Top hung and floor with rubber seals achieving excellent barrier effect.





Specifications of partitions:



Technical Parameter
for Partition Panel
Panel Width 500 - 1230mm
Panel height 2000 - 6000mm
Sound proof 36 - 50 db
Operation Manual
Frame Aluminum
Vertical profile Anodised aluminum profiles with integrated magnetic
strip and sealing edges on the inside
Finish options Fabric , veneer , HPL melamine , vinyl , carpet , customers own material,
Bare finish
Base options Plywood , Gypsum , steel , MDF
Max width Unlimited
Panel weight 25 - 40 kg / sq
Pass door selection door Single or double door
Seals Top Manual
bottom Manual



Acoustical Folding Partition Walls For Auditorium / Exhibition Hall



Installation:



Preparing



1) Constructing location : keep dry , the temperature should be higher than 10'C , the widest humidity range should confined to 40% - 60% after construction 24 hours before constructing , the location should reach the standards as above.



2) Acoustic panels : for the acoustic panels accommodated to the circumstance of constructing , please place the panels in the constructing location for 48 hours , check up the type , specification and amount of the panels before constructing .



3) Keels : fix the keels on the wall flatly according to the plan , the keels should be flat , slick , no rust , no metamorphosis ; the wall must be construct according to the standards , the keels suitable install with acoustic panels , leave smaller than 500mm space between each wooden keel ( smaller than 600mm of light steel keel ) , install the keels vertically with acoustic panels .



Fixing



1) Size of wall : all panels should be installed in accordance with the manufacturers recommendations .



2) Cutting : all necessary hardware and accessories for a complete job installation are to be furnished by the contractor .



3) Install the acoustic panels : the installation of acoustic panels should be carried out in a sequence from the left to the right , from upside to downside , the panels are cut to fit on site , traditional woodworking tools are suitable for cutting the panels , if panels are cut using a fine tooth table saw the panels should be cut face up to avoid scratching and at a much slower speed to avoid any tearout or chipping .



4) Fix on keel:



a) Wooden keel fixing using nails , staples or screws into prefixed timber battens on the walls via the tongue and groove joint .



b) Also can fixing by : Light Steel Keel ( size : 18 * 26 * 3000 mm , use clip ( size : 45 * 38 mm ) to fix. ( needs 2.1 m of keel and 17 clips per m2 )





Acoustical Folding Partition Walls For Auditorium / Exhibition Hall



Acoustical Folding Partition Walls For Auditorium / Exhibition Hall
