Acoustic Movable Wooden Sliding Partition Walls Easy To Operate

China Acoustic Movable Wooden Sliding Partition Walls Easy To Operate supplier
Acoustic Movable Wooden Sliding Partition Walls Easy To Operate supplier Acoustic Movable Wooden Sliding Partition Walls Easy To Operate supplier Acoustic Movable Wooden Sliding Partition Walls Easy To Operate supplier Acoustic Movable Wooden Sliding Partition Walls Easy To Operate supplier

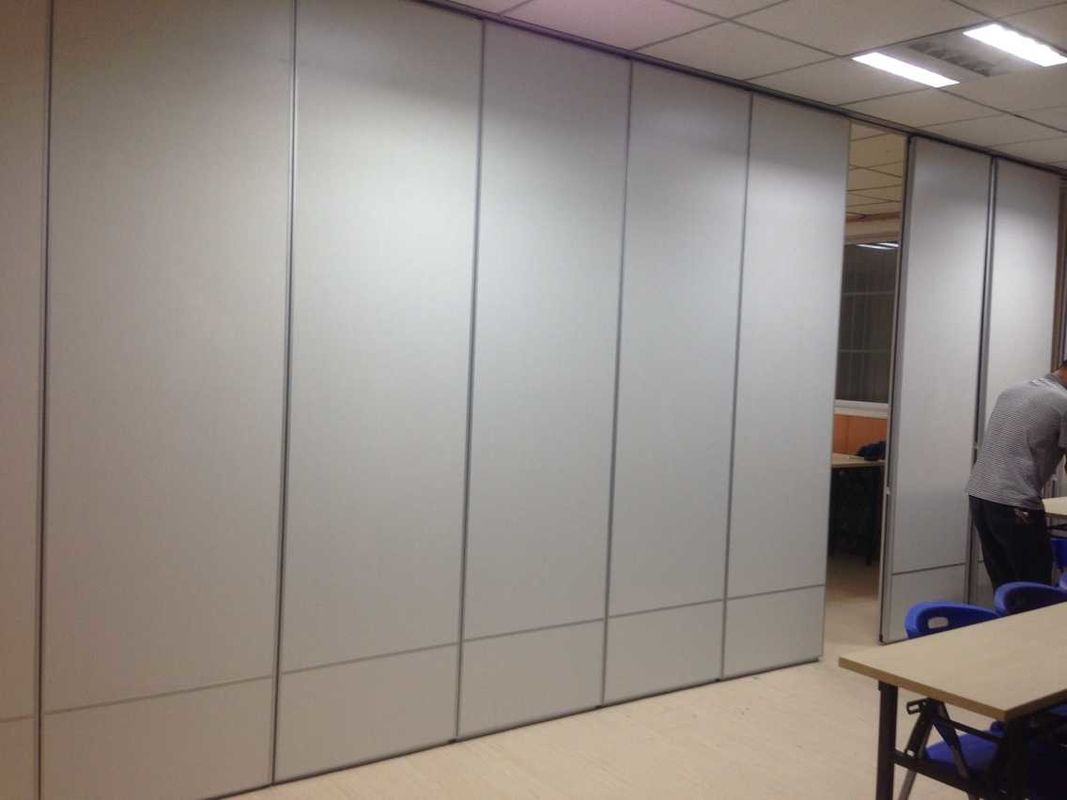

Large Image :  Acoustic Movable Wooden Sliding Partition Walls Easy To Operate

Product Details:

Place of Origin: Guangzhou, China
Brand Name: EBUNGE
Certification: ISO9001
Model Number: 65 mm sliding partition walls

Payment & Shipping Terms:

Minimum Order Quantity: No MOQ, small quantity welcomed
Price: US $68-82 per square meter
Packaging Details: Paper carton, outside with wooden boxes
Delivery Time: 12-20 days
Payment Terms: T/T, Western Union
Supply Ability: 50000 square meters per month
Contact Now
Detailed Product Description
Product Name: Sliding Partition Walls Application: Banquet Hall Partitions
Base Board: MDF Style: Sliding
Frame Material: Aluminum Thickness: 65 Mm(2 9/16 Inch)

Banquet Hall Acoustic Movable Wooden Soundproof Folding Sliding Room Partition Walls


Sliding partition walls features


1. High Soundproof and High Quality



The Rw for acoustic insulation (acoustic rating from 32dB to 55dB) is a fundamental aspect of sliding partition walls. Bunge products are manufactured in accordance with strict construction and testing criteria to give a high level of quality. (These characteristics also apply to our special products like access doors that are fitted within wall systems. Furthermore, each individual project is given special attention at the design stage so that the requested sound-insulation is always attained. )



2. Easy to Operate



Sliding partition walls systems have the characteristic of being very easy to maneuver and position. This is the result of the high quality, long-lasting components. The sliding partition walls panels have a tongue-and-grove profile designed to obtain a perfect visual, geometric and sound-insulation continuity solution. An extendable pressure seal element is located at the top and bottom of each panel that provide sealing and panel stability to the floor and ceiling. Access doors, which are available in different sizes, are inserted in the panels and do not exceed the thickness of the sliding partition wall system. Doors can be single of double leaf. The locking and releasing of the sliding partition wall panels is done in an easy and rapid manner by means of a removable handle that operates a mechanical system. Panels are also easily slid on the overhead guide and this is guaranteed by a reliable mono or bi-track device and also because all systems have no floor guide. Sliding partition walls panel storage is also extremely simple and can be designed to be hardly visible and various configurations are possible.



3. Design and Technology



Design and technology are the essentials of a successful alliance of partition. The transformation of a large hall into two or more sound-insulated areas which perfectly respond to the requirements of the designer and the needs of the final user without sacrificing style and functionality, can all be achieved by means of Bunge movable sound-insulated sliding partition walls. In view of the wide choice of finish available, Bunge movable sliding partition walls can be personalized according to the individual whim or requirement.



4. Widely application



The sliding partition walls series is used wherever room space needs to be fully utilized. Hotels, conference centers, multi-function rooms, banquet halls, offices, training areas, etc. can all benefit from the flexibility of Bunge movable sliding partition walls.

Acoustic Movable Wooden Sliding Partition Walls Easy To Operate



Sliding partition walls technical information



Item Banquet hall sliding partition walls
Size Customized (all size available)
Color All the cubicle color is available
Function Fireproof,Soundproof,Waterproof
Thickness 65mm,85mm,100mm
Design Accept OEM/ODM
Application Hotel, banquet hall, ballroom , conference room, classroom, function hall, auditorium
Warranty 5 Years
Accessories Nylon hardware(others: zinc alloy, aluminum alloy,series, plastic series)
Our advantage Good quality hardwares with stainless steel,aluminium alloy and nylon, etc.
The repeated utilization ratio of aluminum alloy profile could get to 90% above
Using PVC or rubber sealant to keep a compact work environment
All the machines and technology are from German

The special structure design does not only help to install easily and efficiently,
but conduce to disassemble conveniently and replace the profile (type material),

single or double glass

Shipping term DHL,UPS,FedEx,TNT,air and sea
Lead time To be negotiated

Acoustic Movable Wooden Sliding Partition Walls Easy To Operate



Sliding partition walls accessories system:



Track: The sliding partition walls tracks are made from extruded 6063 - T5 anodized aluminium. The sliding partition walls track housing shall utilize grooves and interlocking steel pins for positive alignment of adjacent track sections, and shall be reinforced overhead by drop rod brackets. Aluminum track housing shall include an integral nut slot to accept a hardened square nut for attaching each drop rod bracket to the top of the track.



Panels:The sliding partition wall panels will be made from 12mm MDF boards and shall be 100mm thick and 1230mm maximum width, made to the appropriate acoustic rating and structural backing and mounted in full perimeter extruded aluminium frames with interlocking corner construction .The sliding partition walls panel faces shall be finished with selected material.

Acoustic Movable Wooden Sliding Partition Walls Easy To Operate
