Sliding Aluminium Track Roller Movable Partition Walls Multi Color
Product Details:
| Place of Origin: | China,Guangzhou |
| Brand Name: | BUNGE |
| Certification: | ISO9001 |
| Model Number: | Series 85 mm movable partition wall |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 square meters |
|---|---|
| Price: | 85 / 136 dollar per square meter |
| Packaging Details: | Carton package, MDF batten on four section sides ,foam board on both front face. |
| Delivery Time: | Shipped in 10 days after payment, based on the quantity. |
| Payment Terms: | D/A, D/P, L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 square meters per month |
|
Detail Information |
|||
| Thickness: | 85 Mm | Height: | Less Than 6 M |
|---|---|---|---|
| Service: | OEM Service | Color: | Multi Color |
| Application: | Conference Room,classroom And Etc | Surface: | Mdf Melamine,leather,fabric |
| Product Name: | Movable Wall Partition | Panel Width: | 800-1300 Mm |
| High Light: | movable walls on wheels,acoustic movable walls |
||
Product Description

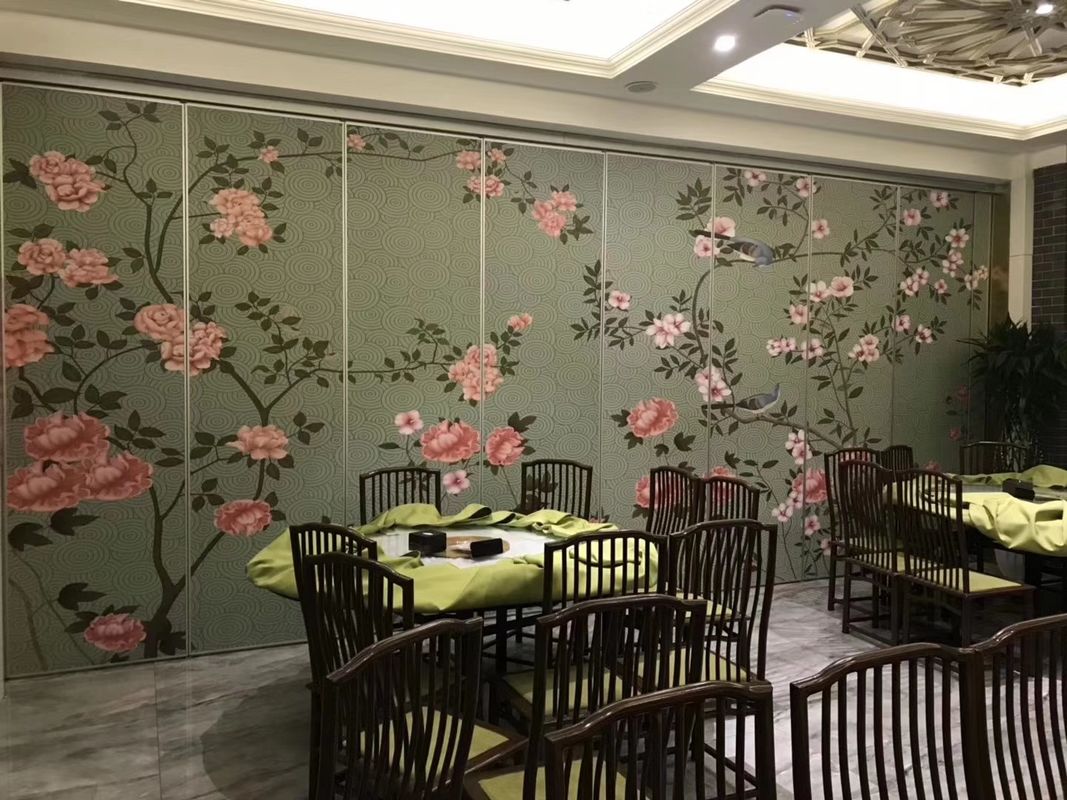

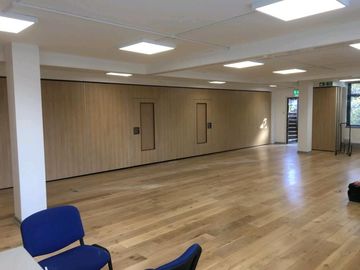

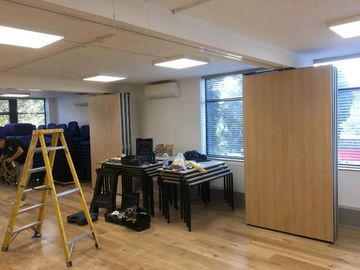

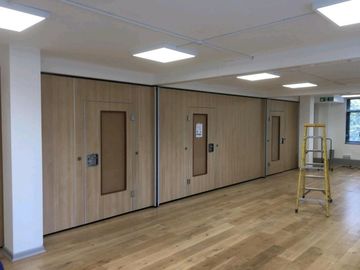

Sliding Aluminium Track Roller Operable Wall Panel Hotel Movable Wall Partition System
Description:
The movable partition wall is a set of soundproof walls composed of every single partition. Each piece is equipped with two horizontal hanging wheels. It depends on the horizontal hanging wheel to make the hanging travel along the track. It can make a 90 degree right angle turn and travel freely.
Feature:
Panel faces are suspended from a steel frame with just 2 points of contact. The edges of panel faces are slotted into aluminium profiles.
This method of cladding the steel frame allows the panel faces to be acoustically separated from each other and thereby minimize the transfer of sound waves through the system.
Each panel has an extruded aluminium male profile to one vertical edge and a female profile to the other.These profiles are fitted with magnetic membranes which ensure positive interlocking of the panels.
Once the wall panels have been adjusted for height and level the roller stems are locked with a fail-safe mechanism to ensure that the panels will align perfectly every time the wall is set up.
Pressure seals extend from the top and bottom of each panel exerting a closing pressure of 2kn providing panel stability and excellent acoustic sealing.
Technical information:
| Panel Suspension | Top hanging system without the need for a floor track. |
| Panel Width | Each panel 600mm-1200mm. |
| Track | Aluminum Or Steel Track |
| Roller on panel | Single or Double Roller |
| Panel Frames | Heavy-duty steel-gusseted aluminum inner frames reinforced with full height. |
| Top and bottom seals | Top and bottom pressure retractable seals ensure effortless moved and locked. |
| Module | 700mm - 1200mm maximum. |
| Panel stacking | Numerous panel stacking options for complete flexibility. |
| Panel Surface | MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc. |
| Finishes | Satin anodized or polyester powder coating to all exposed aluminium components available in a wide range of colour as standard. |
Advantage:
Movable wall partition is a kind of facility with very good sound insulation, because the number can indicate how good its sound insulation is, that is, its sound insulation coefficient can reach 53 dB. Not only that, but it also has very good environmental effects. We are now paying attention to environmental protection. Our environment needs everyone to protect it. Therefore, most people will choose and trust environmentally friendly products because they are not environmentally friendly. This is also very good for our body.
Acoustic performance:
Our Top Hung acoustic operable walls were designed specifically with the office refurbishment sector in mind. With sound attentions available from 37dB RW to 53 dB RW, there is no acoustic issue between rooms that the Top Hung Operable Wall cannot cater for.
Sound reduction dB ratings are often quoted from laboratory test results which are misleading in respect of final performance values. They are merely useful for initial specification purposes. Independent on-site tests as carried out by partners are recommended as in-situ results will differ from laboratory test certification and are therefore the only true guide to achievable sound attenuation.
Our service:
Supply you excellent design proposal.
Supply you prompt and competitive price.
Supply you strict quality-compliance and punctual delivery.
Organize the shipment for you.
Reliable after service: timely service and efficient response.
