Payment & Shipping Terms:
|Produce Name:||Partitions Wall||Finish:||Melamine|
|Thickness:||65mm||Height:||Max 8000 Mm|
|Application:||Office And School,banquet Hall And Hotel||Advantage:||Soundproof|

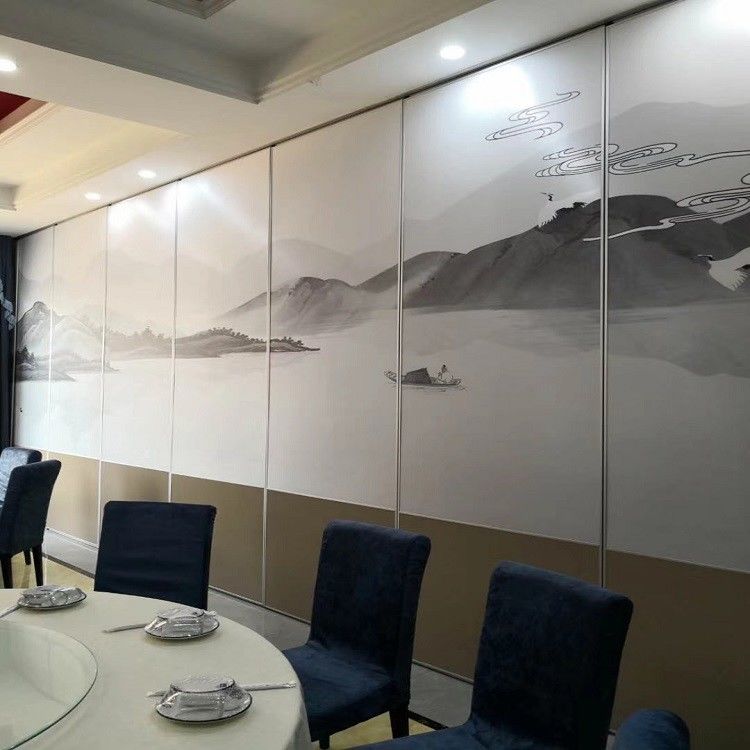

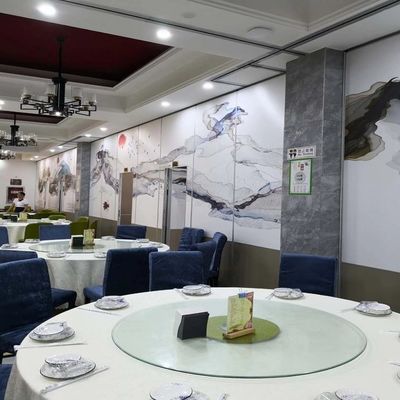

Office Separation Sliding Folding Soundproof Accordion Movable Partition Wall
To be general, BUNGE Factory has 10+ years experience in the line of sliding partition walls. The sliding partition walls we produced can divide the space speedy and conveniently. Due to their flexibility and cost effectiveness, now more and more clients need them to divide a large room. Also the sliding partition walls are widely used in office buildings, meeting room, hotel, banquet hall, conference and function halls, church, classroom and so on. Would you like to get a free design? Welcome to contact us at any time.
Components of Sliding Partition Walls
Tracks: Made of good quality anodized aluminium 6063-T5 materials,hanging the movable partition walls with wheels.
Wheels/Rollers: It is the carrier for the movable partition walls ,let panels move more flexibly.Pulley bearing is more than 1600 KGS.
Connectors: Made of anodized aluminium 6063-T5 aluminum tracks,“L”, “T”, “＋”types are available.
Rubber/vinyl seal: Made of Nitrile Butadiene Rubber(NBR+PVC),durable and perfect for sound insulation,wear-resistant.
Rock Wool: Density of 60kg/m3,help us reduce the noise and heat.
Handle: Operate the retractable being up and down.
Retractable mechanism: Control the movement of the top and bottom seal to form a excellent sound insulation performance.
Magnetic Strip: Ferrite plastic magnetic material will be used in between aluminum profiles to enhance acoustic performance of the movable partition walls.
MDF board: 9 mm thickness,density of 760kg/m3,absorbent thickness expansion rate is less than 15%.Formaldehyde emission is 34mg/100g.
|Series||BG 65||BG 85||BG100|
|Panel supension||Top hung only||Top hung only||Top hung only|
|Panel thickness||65 mm||85 mm||100 mm|
|Max height||400 mm||600 mm||800 mm|
|Panel width||600-1230 mm||600-1230 mm||600-1230 mm|
|Face material||9 mm||9 mm||9 mm|
|Pass doors||Single Door or Double Door|
|Sound insulation||20 – 32 db||28 – 36 db||32 – 50 db|
|Finish Material||Plywood / MDF /Laminate / Melamine / Gypsum|
|Board / Fabric / Insulation / Fireproof /Wall Paper /Vinyl /Painting /etc,(Customized)|
