Conference Room Movable Partition Walls / Soundproof Room Dividers
Product Details:
| Place of Origin: | Guangzhou, China |
| Brand Name: | BUNGE |
| Certification: | ISO9001 |
| Model Number: | 85 mm movable partition walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | No MOQ, small quantity welcomed |
|---|---|
| Price: | US $89-110 per square meter |
| Packaging Details: | Paper carton, outside with wooden boxes |
| Delivery Time: | 12-20 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50000 square meters per month |
|
Detail Information |
|||
| Product Name: | Movable Partition Walls | Frame Material: | Aluminum Alloy |
|---|---|---|---|
| Partition Thickness: | 85 Mm(3 1/4 Inch) | Width: | 1000-1200 Mm |
| Surface: | Melamine | Feature: | Sound Proofing |
| High Light: | movable walls on wheels,acoustic movable walls |
||
Product Description
Soundproof Room Divider Sliding Folding Movable Partition Walls for Hotel Conference Room

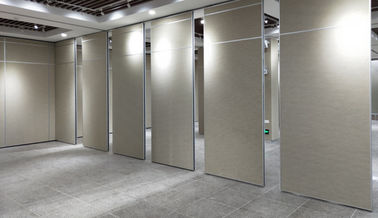

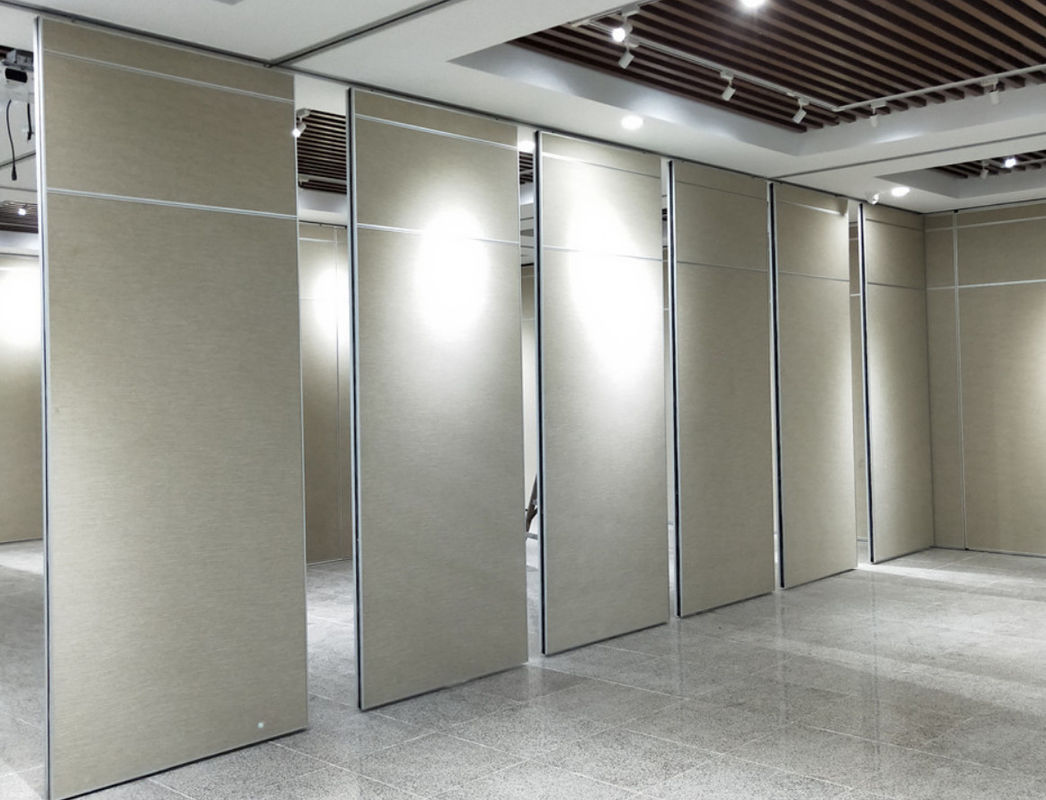

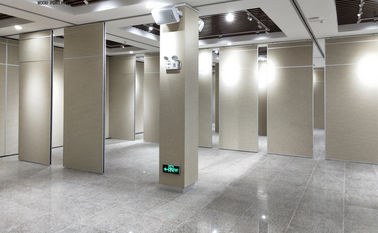

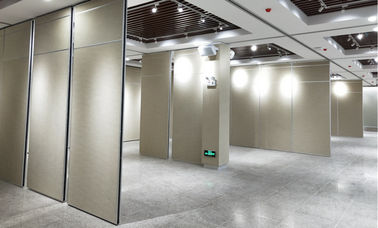

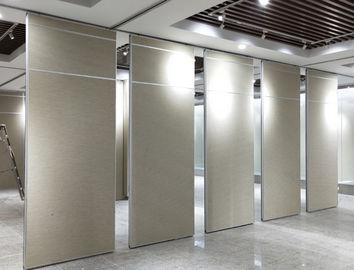

Finished project
On March 20th,2019, we received a nice feedback from a client who comes from Canada.
He is a contractor who is in charge of the project details, his engineer just installed the movable partition walls well and sent me some pictures about the project site.
Everything goes well and his client feel satisfied and happy about our partition walls.
 |
|
Movable partition walls technical information
| Model | Weight (kg/m) |
Fire Rating(min) | STC Performance | Specification | Carrier | |||||
| Thickness (mm) |
Width(mm) | Height(mm) | Top Seal(mm)/ Pressure(kg) | Bottom Seal(mm)/ Pressure(kg) | LCP stretch (mm) | |||||
| BG85-40 | 30 | 60 | 40db | 85 | 680-1212 | 2000-5500 | 22.5/35 | 22.5/35 | 140 | 60# 80# 100# |
| BG85-45 | 38 | 60 | 45db | 85 | 680-1212 | 2000-5500 | 22.5/35 | 22.5/35 | 140 | |
| BG85-48 | 47 | 60 | 48db | 85 | 680-1212 | 2000-5500 | 22.5/35 | 22.5/35 | 140 | |
Movable partition walls specifications
1)Soundproof partition movable walls interlocking male / female trapezoidal vertical aluminium profiles, for soundproof connection between elements.
2)Movable partition walls to ensure additional friction connection, shall be integrated with magnetic strip.
3)Folding partition movable walls is easy element adjustment after installation.
4)Movable partition walls track system shall be Extruded aluminium, maintenance free with heavy-duty ball bearing steel rollers.
