Sliding Screen Removable Movable Panel Soundproof Door Divider Partition Wall Hotel Hall Office
Product Details:
| Place of Origin: | China(mainland) |
| Brand Name: | EBUNGE |
| Model Number: | 85 Series Partitions wall |
Payment & Shipping Terms:
| Minimum Order Quantity: | No MOQ |
|---|---|
| Price: | USD 80-90 Square meters |
| Packaging Details: | Partition board paper packaging, and finally packed in wooden carton |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 5000 Square meters per month |
|
Detail Information |
|||
| Product Name: | 85 Series Partitions Wall | Material: | MDF With Melamine |
|---|---|---|---|
| Thickness: | 85 Mm | Usage: | Banquet Hall And Office |
| Track: | Aluminum | Style: | Modern |
| High Light: | movable partitions systems,acoustic movable walls |
||
Product Description

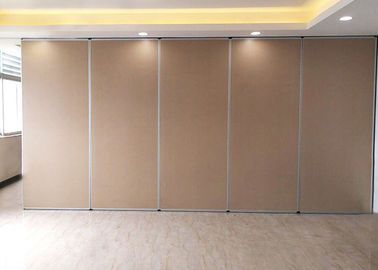

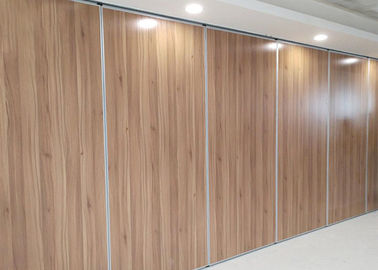

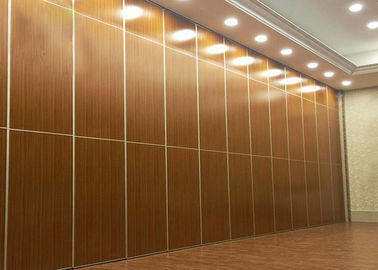

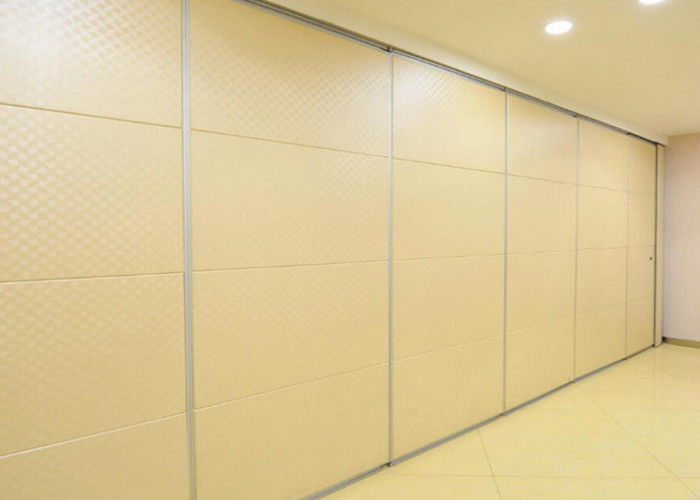

Sliding Screen Removable Movable Panel Soundproof Door Divider Partition Wall Hotel Hall Office
Soundproof partitions wall
The main advantage of these sound proof wall dividers is the ability to use ceiling rails to support the floor. This is the most common specification because it avoids the need for floor track structures. This is very important for existing buildings where you don’t want floor track to get in the way.
When not in use, the plates are hinged together or stacked at one or both ends. One end panel is usually an access door, which is very useful. The standard soundproof partition can provide up to Rw 45 dB sound reduction.
They are made up of single panels suspended from head rail, and the panels may be stacked at the ends of the partitions or remotely in the appropriate stacking area. Access doors are available. The sound reduction can be enhanced by moving the retractable top and bottom seals.
Soundproof partitios wall application
All the sound proof partitions are customized according to the size required, from the classroom, office to large stadium and conference center.
Sound proof partitions are usually used in schools, offices, hotels, universities, leisure centers, churches, etc., which provide a wide range of possibilities for more efficient use of available space. We will be happy to discuss your detailed requirements and advise on options.
| Series | BG 65 | BG 85 | BG100 |
| Panel supension | Top hung only | Top hung only | Top hung only |
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Max height | 400 mm | 600 mm | 800 mm |
| Panel width | 600-1230 mm | 600-1230 mm | 600-1230 mm |
| Face material | 9 mm | 9 mm | 9 mm |
| Pass doors | Single Door or Double Door | ||
| Sound insulation | 20 – 32 db | 28 – 36 db | 32 – 50 db |
| Finish Material | Plywood / MDF /Laminate / Melamine / Gypsum | ||
| Board / Fabric / Insulation / Fireproof /Wall Paper /Vinyl /Painting /etc,(Customized) | |||
