Acoustic Sliding Movable Walls Fold Floor To Ceiling Partition Wall For Conference Hall
Product Details:
Place of Origin: | China(mainland) |
Brand Name: | EBUNGE |
Model Number: | 65 Series Partitions wall |
Payment & Shipping Terms:
Minimum Order Quantity: | No MOQ |
---|---|
Price: | USD 80-90 Square meters |
Packaging Details: | Partition board paper packaging, and finally packed in wooden carton |
Delivery Time: | 15 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
Supply Ability: | 5000 Square meters per month |
Detail Information |
|||
Product Name: | 65 Series Partitions Wall | Material: | MDF With Melamine |
---|---|---|---|
Thickness: | 65 Mm | Usage: | Banquet Hall And Office |
Service: | OEM ODM | ||
High Light: | movable walls on wheels,acoustic movable walls |
Product Description

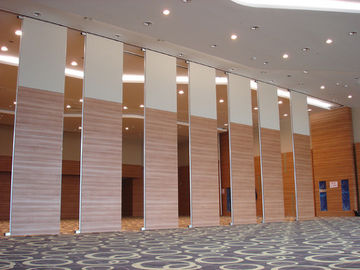

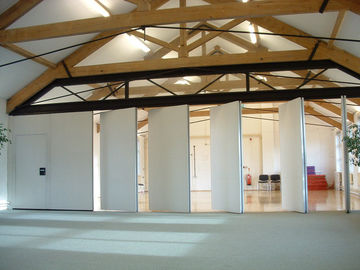

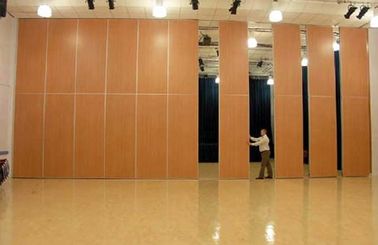

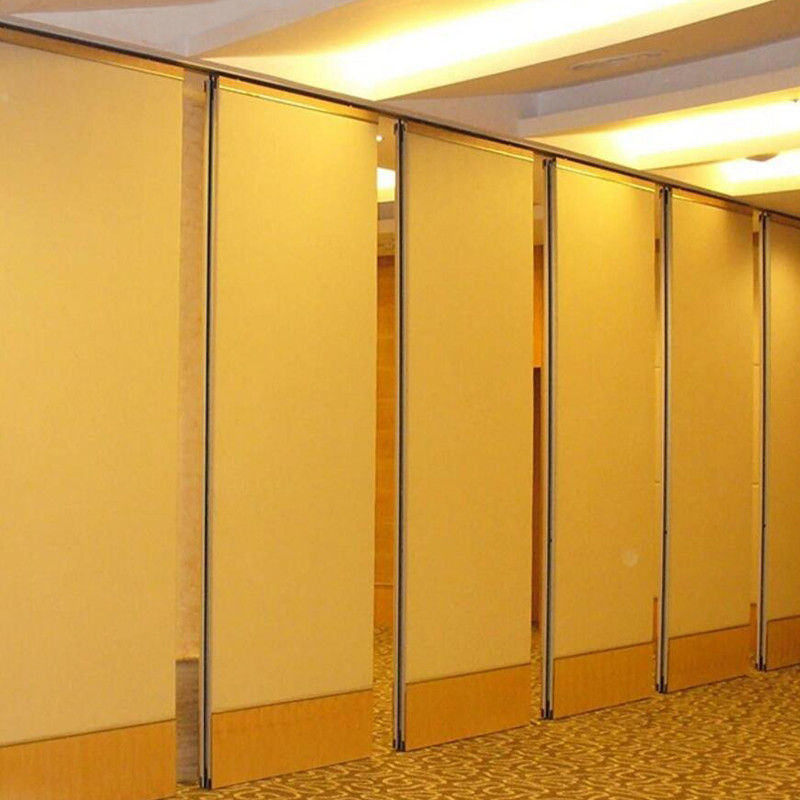

Acoustic Sliding Movable Walls Fold Floor To Ceiling Partition Wall For Conference Hall
Bunge partitions wall description
Movable sound-proof partition walls are characterized by modular elements having high acoustic insulation up to an Rw index of 50 dB certified by an accredited laboratory. They are easily stored and slide quietly along guide rails fixed only into the ceiling. Designed to harmonize with the existing architectural style they can reach any length and up to 15 m. in height with covering in a choice of materials and finish. High-level technology guarantees quality and reliability while offering the ideal solution for a rapid, physical and acoustic division of areas destined to host large events, meetings, workshops, videoconferences and training sessions.
Mobile partition has the following characteristics:
A. Sound insulation: each wallboard is fixed with A rocker and can be retractable up and down. The edge of the partition board is equipped with sound insulation cover rubber. The concave and convex coordination between wallboard and wallboard ensures the coherence of each wallboard after it is expanded, effectively prevents the transmission of sound waves, and achieves the effect of sound insulation and heat insulation.
B. Multi-orientation: the hoisting system adopts universal pulley (steel type, nylon mute type), which can facilitate the delivery of each piece of wallboard to any position, and provide the design scheme of track direction and storage space according to customer requirements.
C. Stability: internal steel structure, aluminum frame, with telescopic system, ensuring durability and stability.
D. Integrity: no track is set on the ground, ensuring the integrity of the decorative style.
Series | BG 65 | BG 85 | BG100 |
Panel supension | Top hung only | Top hung only | Top hung only |
Panel thickness | 65 mm | 85 mm | 100 mm |
Max height | 400 mm | 600 mm | 800 mm |
Panel width | 600-1230 mm | 600-1230 mm | 600-1230 mm |
Face material | 9 mm | 9 mm | 9 mm |
Pass doors | Single Door or Double Door | ||
Sound insulation | 20 – 32 db | 28 – 36 db | 32 – 50 db |
Finish Material | Plywood / MDF /Laminate / Melamine / Gypsum | ||
Board / Fabric / Insulation / Fireproof /Wall Paper /Vinyl /Painting /etc,(Customized) |
