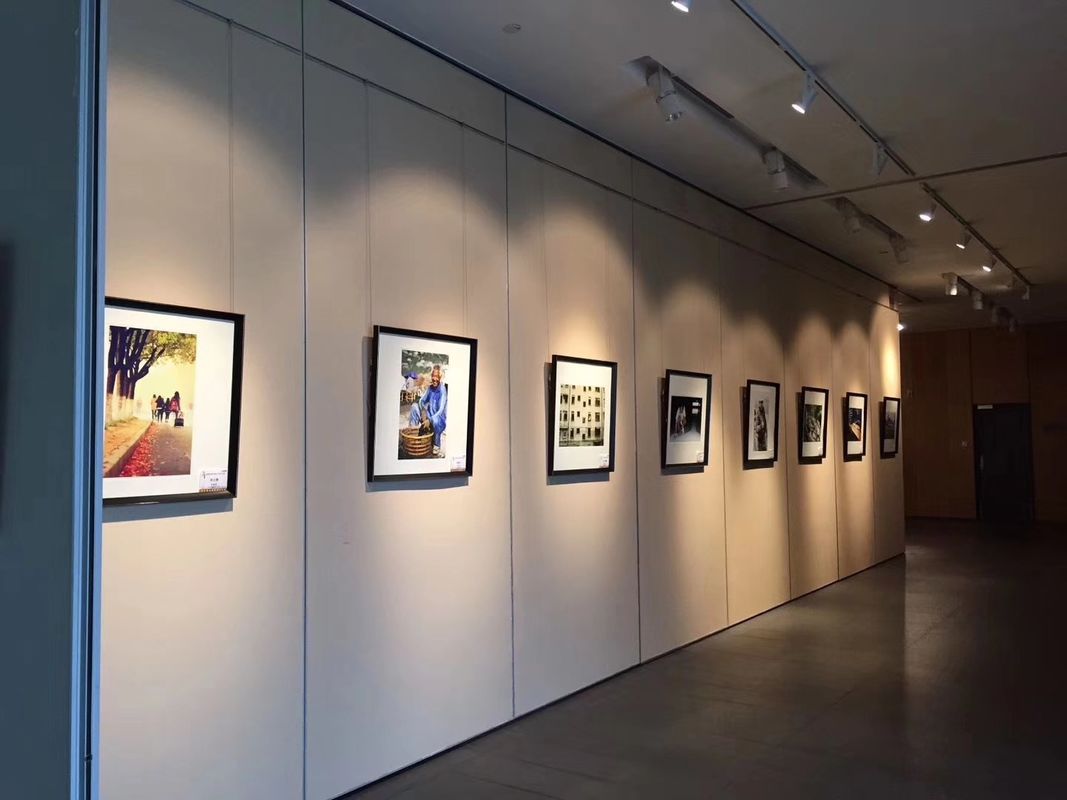

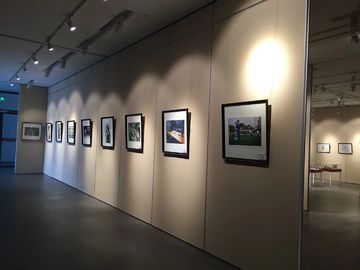

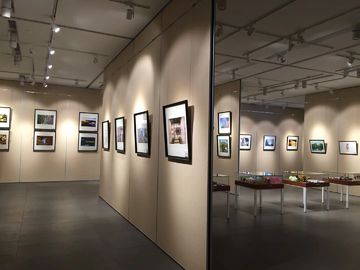

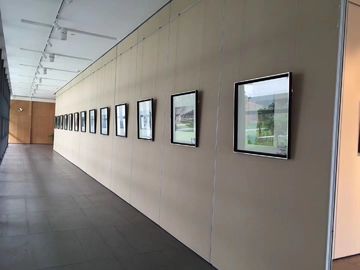

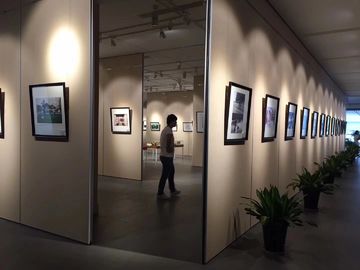

Wooden Sound Proof Partition Wall For Art Gallery / Functional Hall
Product Details:
| Place of Origin: | Guangzhou, China |
| Brand Name: | BUNGE |
| Certification: | ISO9001 |
| Model Number: | 65 mm acoustic partition walls |
Payment & Shipping Terms:
| Minimum Order Quantity: | No MOQ, small quantity welcomed |
|---|---|
| Price: | US $86-108 per square meter |
| Packaging Details: | Paper carton, outside with wooden boxes |
| Delivery Time: | 12-20 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 20000 square meters per month |
|
Detail Information |
|||
| Product Name: | Acoustic Partition Walls | Max Height: | 4 Meters(65 Mm) |
|---|---|---|---|
| Track Material: | Anodized Aluminum 6063-T5 | Surface: | Melamine |
| Coefficient: | 30-60 Db | Application: | Art Gallery, Functional Hall |
| High Light: | acoustic operable partitions,movable acoustic partition walls |
||
Product Description
Sound Proof Wooden Partition Walls Modern Acoustic Partition Walls for Art Gallery
Acoustic partition walls details
The acoustic partition wall is aluminum-framed operable partition is the most versatile operable wall constructed today. Acoustic partition walls are a series of flat panels, approximately range from 600mm(23") to 1200mm(47") wide. They have a wide array of features and options to meet most design and budget requirements. Models are acoustically rated, available in 65mm(2.6") ,80mm(3")or 100mm(4") thick models, and in single, pair hinged configurations.
Acoustic partition walls system are 2-1/4" tongue-and-groove unitized panel system. Acoustic partition walls panels are 24" wide, precision laminated, and pre-finished with vinyl, fabric or other specified finish. Panels are manufactured at various heights up to 59'. All vertical and horizontal structural members consist of extruded aluminum components, with a snap-on base made of extruded vinyl. Panels lift into floor and ceiling tracks to form a rigid, uniform wall system that provides excellent sound transmission resistance with a STC rating of 35 to 58dB.
The acoustic partition wall is a top quality moveable wall system that allows you to optimize the use of available space with speed and ease.
The continuously hinged panels are pulled from their parked position to 'close' (or extend) the wall and pushed back to the parked position to 'open' (or fold)the wall. Final flat alignment of acoustic partition wall panels is assisted pneumatically by a gas piston located in the top track. A lever or recess handle is fitted to the lead panel and this combined with a vertical rebated profile provides the system with its pass door. The door is available with or without a lock cylinder.
Acoustic partition walls panel with double rollers can be stacked in a variety of positions.Panels with single roller may be parked to one or both sides of the opening.
Technical data of acoustic partition walls:
| Model | Weight (kg/m) |
Fire Rating(min) | STC Performance | Specification | Carrier | |||||
| Thickness (mm) |
Width(mm) | Height(mm) | Top Seal(mm)/ Pressure(kg) | Bottom Seal(mm)/ Pressure(kg) | LCP stretch (mm) | |||||
| BG65-32 | 22 | 60 | 32db | 65 | 680-1212 | 2000-4500 | 22.5/35 | 22.5/35 | 140 | 60# 65# 80# |
| BG65-38 | 27 | 60 | 38db | 65 | 680-1212 | 2000-4500 | 22.5/35 | 22.5/35 | 140 | |
| BG65-45 | 35 | 60 | 45db | 65 | 680-1212 | 2000-4500 | 22.5/35 | 22.5/35 | 140 | |
Technical data of Type 85 acoustic partition walls :
| Model | Weight (kg/m) |
Fire Rating(min) | STC Performance | Specification | Carrier | |||||
| Thickness (mm) |
Width(mm) | Height(mm) | Top Seal(mm)/ Pressure(kg) | Bottom Seal(mm)/ Pressure(kg) | LCP stretch (mm) | |||||
| BG80-40 | 30 | 60 | 40db | 85 | 680-1212 | 2000-5500 | 22.5/35 | 22.5/35 | 140 | 60# 80# 100# |
| BG80-45 | 38 | 60 | 45db | 85 | 680-1212 | 2000-5500 | 22.5/35 | 22.5/35 | 140 | |
| BG80-48 | 47 | 60 | 48db | 85 | 680-1212 | 2000-5500 | 22.5/35 | 22.5/35 | 140 | |
Technical data of Type 100 acoustic partition walls :
| Model | Weight (kg/m) |
Fire Rating(min) | STC Performance | Specification | Carrier | |||||
| Thickness (mm) |
Width(mm) | Height(mm) | Top Seal(mm)/ Pressure(kg) | Bottom Seal(mm)/ Pressure(kg) | LCP stretch (mm) | |||||
| BG100-43 | 38 | 60 | 43db | 100 | 680-1219 | 2000-7500 | 30/40 | 30/40 | 140 | 60# 80# 100# |
| BG100-48 | 46 | 60 | 48db | 100 | 680-1219 | 2000-7500 | 30/40 | 30/40 | 140 | |
| BG100-53 | 55 | 60 | 53db | 100 | 680-1219 | 2000-7500 | 30/40 | 30/40 | 140 | |
Acoustic partition walls advantages
1.The acoustic partition wall is made from high density aluminum frame, special made rubber, excellent sound insulation cotton and finish surface, etc.
2.Around the acoustic partition walls panel, there is sound insulation rubber, it can help to insulate the sound entering.
3.The acoustic partition wall is hanging on the aluminum track, assembled with muti direction wheels.
4. We can add single or double doors on the acoustic partition walls panels for entering convenience.
5. The operation ways is much easier, it’s better than the old ways which was use spring before.
6. Acoustic partition wall is modernized decoration style. It can separate the space speedly and conveniently. And the acoustic room divider has sound insulation and heat insulation and fireproof function;
7. The acoustic partition walls doesn’t need track on the floor, we only hang the track on the ceilings and it can be at the same plane with the ceiling decoration. It won’t affect the whole decoration style;
