Commercial Decorative Retractable Movable Partition Panels / Sliding Wall Partitions
Product Details:
| Place of Origin: | China (mainland) |
| Brand Name: | EBUNGE |
| Model Number: | 65 mm soundproof partition wall |
Payment & Shipping Terms:
| Minimum Order Quantity: | NO MOQ |
|---|---|
| Price: | US$82-118 per square meter |
| Packaging Details: | Carton package, MDF batten on four section sides, foam board on both front face. |
| Delivery Time: | 10-20 days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 5000 Square meter per month |
|
Detail Information |
|||
| Product Name: | Soundproof Partition Wall | Material: | MDF |
|---|---|---|---|
| Color: | Customized | Size: | Customized |
| Thickness: | 65mm | Application: | Office,Restaurant,etc. |
| Height: | Max 4 Meter | Width: | 500-1220mm |
| Feature: | Space Saving,Water-proof&air-proof&sound Isolation&heat Isolation | Advantage: | Free Of Floor Track |
| Service: | OEM/ODM | ||
| High Light: | movable walls on wheels,acoustic movable walls |
||
Product Description

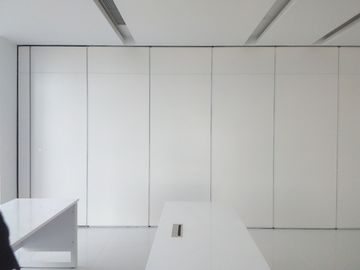

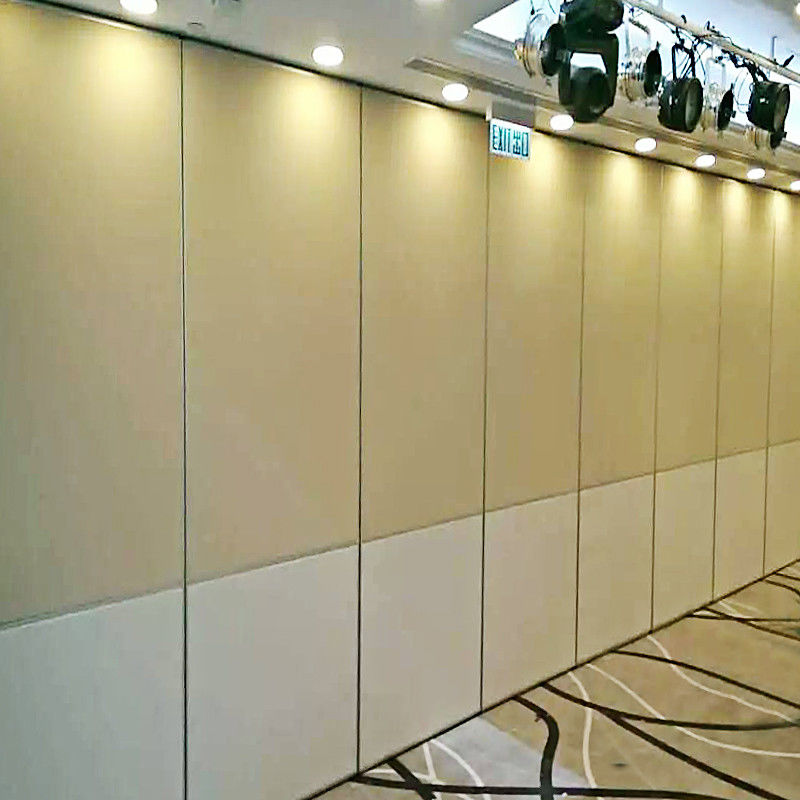

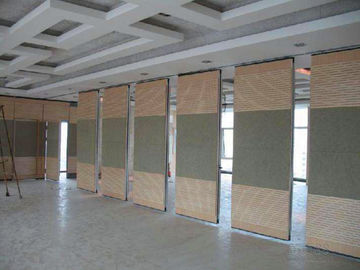

Commercial Decorative Retractable Sliding Movable Partition Panel
Product Description
The movable partitions consist of a series of concave/convex profile interlocking flat panels and the fast set retractable top and bottom seals ,its provide excellent acoustic insulation property of from STC-32 to 53 in laboratory setting.
Its high performance per dollar value and the easiest in-field operation makes it very suitable for hotel, banquet hall, conference room ,ballroom, muti-function hall, restaurant,classroom,office,religion,dance studio ,shopping arcades and many other place where seek for space divide with good soundproof performance.
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | ||
| Panel thickness | 65mm | 85mm | 100mm |
| Max height | 4000mm | 6000mm | 8000mm |
| Panel width | 600-1230mm | ||
| Face material | 9mm | 9mm | 12mm |
| Sound insulation | 20-32db RW | 30-38db RW | 35-45db RW |
| Weight | 20-30 kg/sq M | 22-35kg/sq M | 28-40kg/sq M |
| Track system | Single or two point | ||
| Frame construction | Aluminum frame | ||
| Finish materials | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) | ||
The advantages of the slidinig partition wall
1>Folding room partition is modernized decoration style. It can separate the space speedly and conveniently. And it has sound insulation and heat insulation and fireproof function.
2> The Partition Board is made from high density frame, special made rubber, excellent sound insulation cotton and finish board etc. the finish board is flat and hard.
3> The finish board is inserted in the aluminum track, assembled with multi direction wheels; the board can be stored in may different ways.
4> It doesn’t need track on the floor, we only hang the track on the ceilings and it can be at the same plane with the ceiling decoration. It won’t affect the whole decoration style.
5> Around the board ,there is sound insulation rubber, it can help to insulate the sound entering.
6> The operation ways is much easier, it’s better than the old ways which was use spring before.

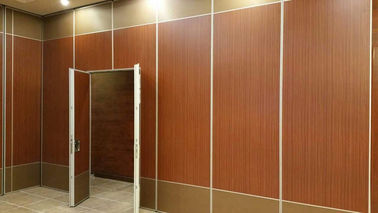

7> We can add single or double doors on the board for convenience.
8> We have many different finish to meet customer different requirement and get different decoration effect.
About the installation
It is not difficult to install our activity partitions. Our active partition is a hanging rail type moving wall that does not require any ground track. Therefore the hanging rail structure will be very important. We have very detailed drawings and videos showing how to install, so your employees need to follow them step by step to install them. We can also dispatch the installation engineer supervising the installation as request .

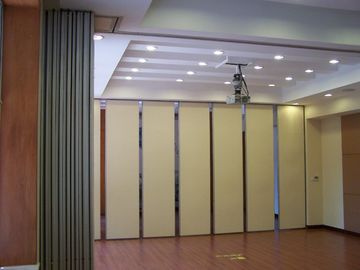

About stacking option
In their stacked position, the panel form compact package and can be accommodated in the smallest of spaces depending on the room situation. The low weight of the panel and the associated structural advantages are particularly noticeable here. The standard stack or parking
track systems offer convenient operability with a minimum of noise from the individual panels as they slide into position.
Panel with double rollers can be stacked in a variety of positions.Panels with single roller may be parked to one or both sides of the opening
