Movable Sound Insulation Vertical Operable Partition Wall For Restaurant
Product Details:
| Place of Origin: | China (mainland) |
| Brand Name: | EBUNGE |
| Model Number: | 65 mm movable partition wall |
Payment & Shipping Terms:
| Minimum Order Quantity: | NO MOQ |
|---|---|
| Price: | US$82-118 per square meter |
| Packaging Details: | Carton package, MDF batten on four section sides, foam board on both front face. |
| Delivery Time: | 10-20 days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 5000 Square meter per month |
|
Detail Information |
|||
| Product Name: | Movable Partition Wall | Material: | MDF |
|---|---|---|---|
| Color: | Customized | Size: | Customized |
| Thickness: | 85mm | Application: | Office,Restaurant,etc. |
| Height: | Max 6 Meter | Width: | 500-1220mm |
| Feature: | Space Saving,Water-proof&air-proof&sound Isolation&heat Isolation | Advantage: | Free Of Floor Track |
| Service: | OEM/ODM | ||
| High Light: | movable walls on wheels,movable partitions systems |
||
Product Description
Movable Sound Insulation Vertical Operable Partition Wall for Restaurants
Product Description

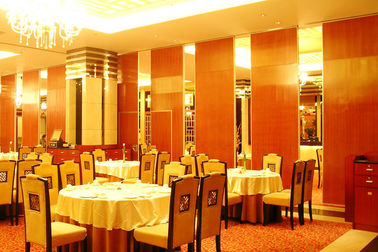

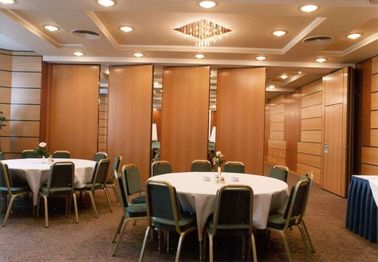

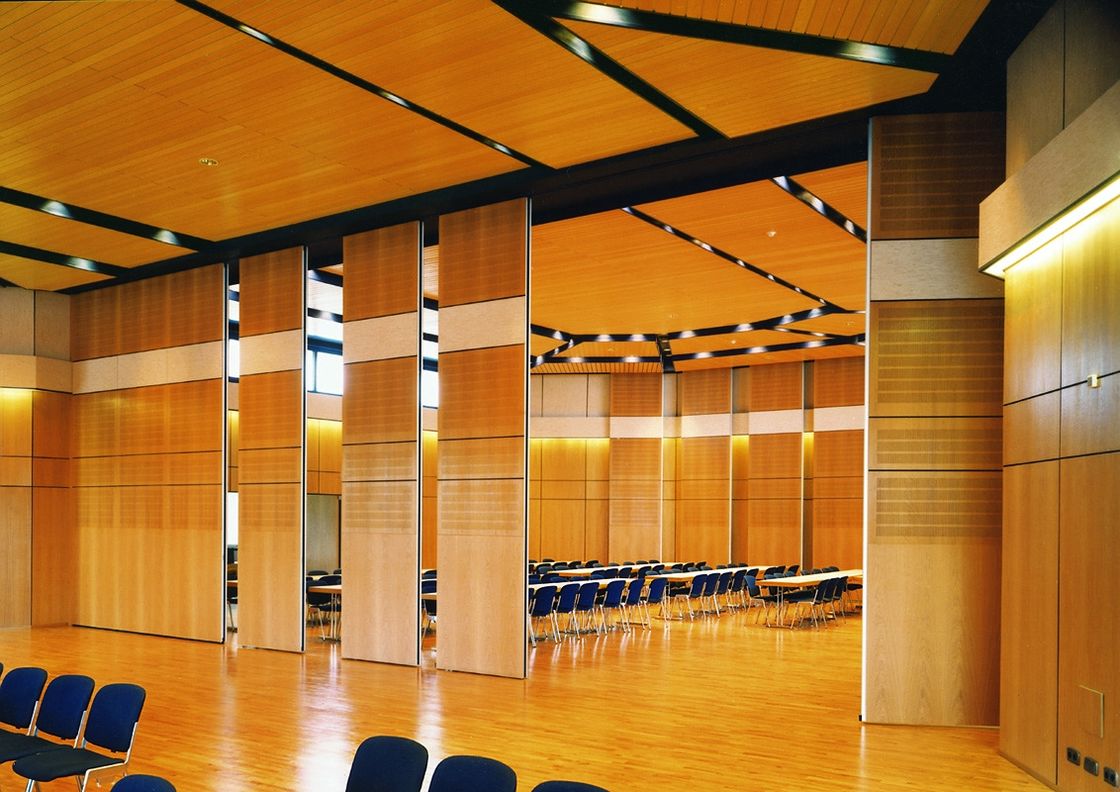

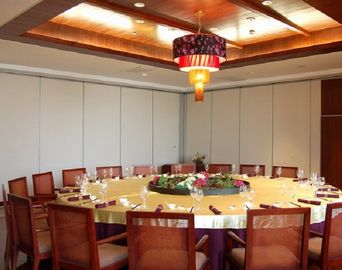

Bunge movable partition walls are very common in star-rated hotels and restaurants. In a whole space, use it to arrange the space neatly and regularly, change the layout of the area, and make the space patchy. There are private dining rooms in the interior, as well as public areas. The slewing partition wall combines the space of the restaurant and the hotel into a small number of different parts. The lightweight and convenient wall can move and change direction indoors. The clever separation method avoids the waste of space and the loss of energy, and increases the passenger flow. At the same time, it can save a lot of money. In the hotel, the operable partition wall is a powerful helper for the restaurant. The lack of space can be used to make up for it. The location of the area can also be converted by it. The sense of space can be reflected by it.
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | ||
| Panel thickness | 65mm | 85mm | 100mm |
| Max height | 4000mm | 6000mm | 8000mm |
| Panel width | 600-1230mm | ||
| Face material | 9mm | 9mm | 12mm |
| Sound insulation | 20-32db RW | 30-38db RW | 35-45db RW |
| Weight | 20-30 kg/sq M | 22-35kg/sq M | 28-40kg/sq M |
| Track system | Single or two point | ||
| Frame construction | Aluminum frame | ||
| Finish materials | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) | ||
Features
1. It can be disassembled, installed and moved according to requirements, and the operation is simple.
2. It does not affect the decoration structure of the house, does not damage the wall of the wall, and can be disassembled and moved, safe and stable.
3, movable partition wall quickly isolate space, sound insulation and sealing, flame retardant and other functions.
4, movable partition wall hidden handle operating mechanism, smooth wall line type, simple and reliable mechanical sealing device, so that its quality is prefect.
5, movable partition wall can be arbitrarily divided space along the track, smoothly through various corners, flexible use of space.
The activity partition is made up of four main parts, they are:
1.The main body. This part is usually the combination of high quality of wood material and aluminum alloy material.
2.The pulley. It is the important part of activity partition which promising the partition moves freely.
3.The track. This part is made for providing the railway for the movement of the pulley, without it, the free movement of this product can’t be realized.
4.The operating crank handle. You can use it to adjust the height as you love.
These sophisticated acoustic operable walls do not require a floor track and yet once positioned the interlocking panels form a rigid structure giving all the properties and appearance of a permanent wall. The BUNGE operable wall system comprises panels up to 1200mm wide. Actual panel widths are determined by the site aperture, there are no standard sized panels or 'make up' panel.
