Aluminum Frame Movable Partition Walls For Hotel Max 4 Meter Height ODM OEM
Product Details:
| Place of Origin: | China (mainland) |
| Brand Name: | EBUNGE |
| Model Number: | 65 mm movable partition wall |
Payment & Shipping Terms:
| Minimum Order Quantity: | NO MOQ |
|---|---|
| Price: | US$82-118 per square meter |
| Packaging Details: | Carton package, MDF batten on four section sides, foam board on both front face. |
| Delivery Time: | 10-20 days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 5000 Square meter per month |
|
Detail Information |
|||
| Product Name: | Movable Partition Wall | Material: | MDF |
|---|---|---|---|
| Color: | Customized | Size: | Customized |
| Thickness: | 65mm | Application: | Office,Restaurant,etc. |
| Height: | Max 4 Meter | Width: | 500-1220mm |
| Feature: | Space Saving,Water-proof&air-proof&sound Isolation&heat Isolation | Advantage: | Free Of Floor Track |
| Service: | OEM/ODM | ||
| High Light: | movable partitions systems,acoustic movable walls |
||
Product Description

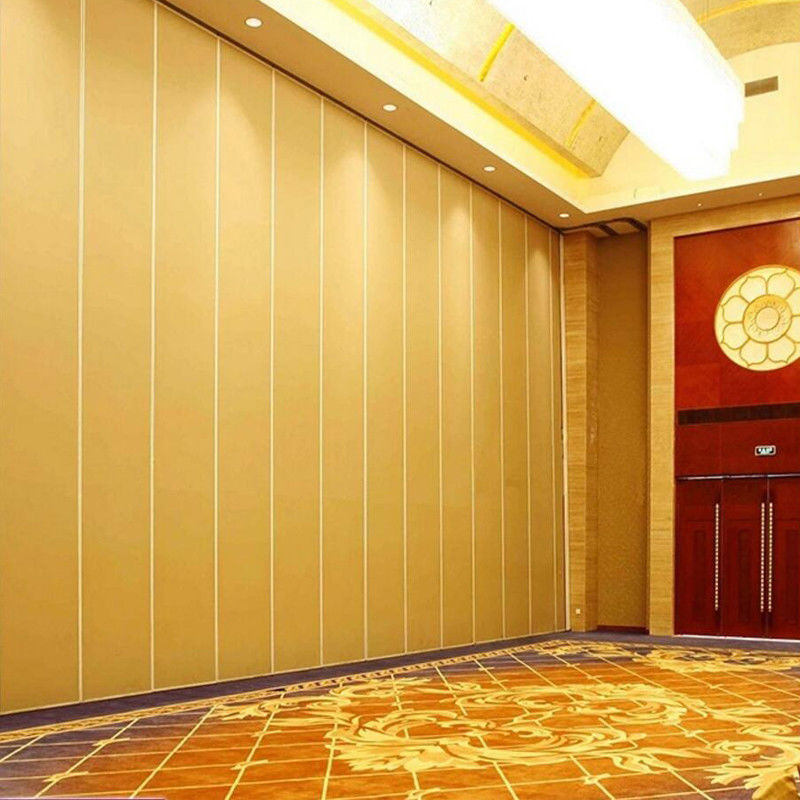

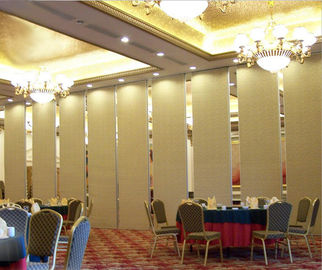

Aluminum Frame Accept ODM OEM Soundproof Movable Folding Partition Wall For Hotel
Product Description
EBUNGE dedicate the individual spaces to you. EBUNGE movable partition wall offer you a way to effortlessly divide spaces for utility use.
It creates the spaces that fit your life and work, and transform the spaces quickly and conveniently.
Advantages
EBUNGE movable partition walls provide:
1.no floor track and top hang system
2.sound insulation
3.various finish options
4.OEM, ODM services
5.flexibility to change your space quickly
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | ||
| Panel thickness | 65mm | 85mm | 100mm |
| Max height | 4000mm | 6000mm | 8000mm |
| Panel width | 600-1230mm | ||
| Face material | 9mm | 9mm | 12mm |
| Sound insulation | 20-32db RW | 30-38db RW | 35-45db RW |
| Weight | 20-30 kg/sq M | 22-35kg/sq M | 28-40kg/sq M |
| Track system | Single or two point | ||
| Frame construction | Aluminum frame | ||
| Finish materials | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) | ||
About the top hanging track system
There is no track on the floor, the top hanging track system is hidden between the ceiling and the false ceiling, so that overall appearance won't be ruined. The track system is made of aluminum, each track is 3m long, it can bearing 250kg-1080kg. There are four connectors("X" connector, "T" connector, "L" connector and "U" connector) for the tracks, so that you can guide the movable partition to make a turn smoothly and easily.
About the hanging rollers
two types: one for single roller installations and one for double rollers.
About the sealing system and the sound insulation
the sound control of the movable/operable partition wall is up to 45db. it depends on the finish option and the thickness of the partition wall you choose.
Three features to enhance the sound insulation
1.top and bottom seals. when you want to fix it, or move it, use the handle and rotate 180°
2.the "M" and "W" frame seal devices are in the left and right side of aluminum frame. They can match each other to enhance to airproof performance.
3.The rubber seals. The first panel have the rubber seal on the right or left side.
Three types of panels
three types of panels to compose the whole partition wall system,each panel all have up and bottom retractable system.
1.the first type panel has the resilient rubber on left or right side to against the wall for enhance the sound insulation
2.the second type panel is the basic panel,it has "M" and "W" match seals in the aluminum frame, they can provide the soundproof function.
3.the last type closure panel is telescopic panel,It can scale left and right to 140mm.
How to design the partition wall
1.you can design the finished surface of the partition wall.
2.you can design the pass room or window.
