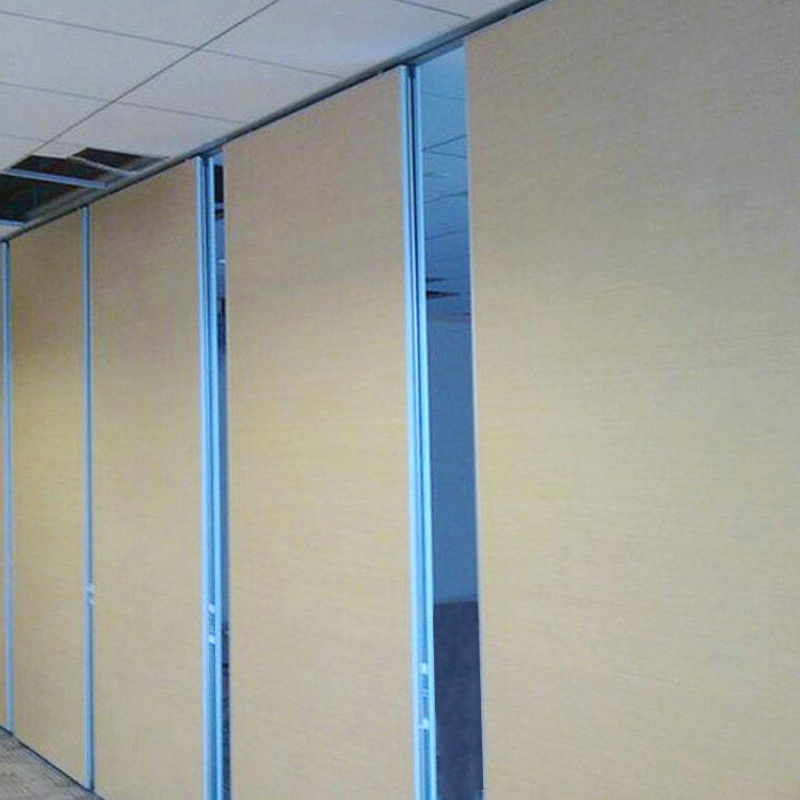

Customized Height 65 mm Interior Wood MDF Finished Sound Absorption Folding Partition Wall
Product Details:
| Place of Origin: | China,(mainland) |
| Brand Name: | EBUNGE |
| Model Number: | 65 series partitions wall |
Payment & Shipping Terms:
| Minimum Order Quantity: | No MOQ |
|---|---|
| Price: | USD 80-90 Square meters |
| Packaging Details: | Partition board paper packaging, and finally packed in wooden carton |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 5000 Square meters per month |
|
Detail Information |
|||
| Product Name: | Acoustic Partition Walls | Thickness: | 65 Mm |
|---|---|---|---|
| Height: | Max 4000 Mm | Width: | 750 Mm-1200mm |
| Feature: | Conference Room Divider,soundproof | Advantage: | Free Of Floor Track,Soundproof |
| Function: | Office Partition Wall,soundproof | Finishing Option: | Melamine,fabric,leather,wall Paper |
| Frame Material: | Aluminium | Color: | Customized |
| High Light: | movable walls on wheels,acoustic movable walls |
||
Product Description
Customized Height 65 mm Interior Wood MDF Finished Sound Absorption Folding Partition Wall
| Series | BG 65 | BG 85 | BG100 |
| Panel supension | Top hung only | Top hung only | Top hung only |
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Max height | 400 mm | 600 mm | 800 mm |
| Panel width | 600-1230 mm | 600-1230 mm | 600-1230 mm |
| Face material | 9 mm | 9 mm | 9 mm |
| Pass doors | Single Door or Double Door | ||
| Sound insulation | 20 – 32 db | 28 – 36 db | 32 – 50 db |
| Finish Material | Plywood / MDF /Laminate / Melamine / Gypsum | ||
| Board / Fabric / Insulation / Fireproof /Wall Paper /Vinyl /Painting /etc,(Customized) | |||
Mobile partition has the following characteristics
A. Sound insulation: each wallboard is fixed with A rocker and can be retractable up and down. The edge of the partition board is equipped with special sound insulation cover rubber.The concave and convex coordination between wallboard and wallboard ensures the coherence of each wallboard after it is expanded, effectively prevents the transmission of sound waves, and achieves the effect of sound insulation and heat insulation.
B. Multi-orientation: the hoisting system adopts universal pulley (steel type, nylon mute type), which can facilitate the delivery of each piece of wallboard to any position, and provide the design scheme of track direction and storage space according to customer requirements.
C. Stability: internal steel structure, aluminum frame, with telescopic system, ensuring durability and stability.
D. Integrity: no track is set on the ground, which ensures the integrity of the decorative style.
Finish
We can supply any surface material according to customer's requirement, including melamine board, decorative panel, MDF (density board) plywood, wallpaper, fabric, leather, fireproof board and decorative paint, etc
The production process of partition wallboard
1: Aluminum, double round pipe, double transmission rod and other hardware parts assembled together, forming a basic frame of the door, the frame is the foundation, the most important process of the entire partition wall board
2: Soundproof cotton is filled in the door panel, so that the partition wallboard has a more three-dimensional feeling, the sound of knocking the door panel is smaller, while playing an effective sound insulation effect
3: Each wallboard shall be packaged on the second floor, with bubble film inside, effectively protecting the partition wallboard and outsourcing paper to prevent it from being scraped. From the production to the packaging of more than 100 to the working procedure, each layer shall be checked to make every detail perfect
FAQ
1:What you should you do on site?
A beam (truss)should built on site for track installation.The minimum distance leaving for track installation from false ceiling to top ceiling is 180mm.
2:How to install?
We will provide the installation manual and video guiding the installation job.We can also dispatch the installation engineer supervising the installation as request.
3:What is lead time ?
The lead time is 7 days to 10days.
4:How to transport?
Sea transport is a common mode of transportation.In an emergency,can be air freight .
5:How do the goods packing?
Carton paper package ,MDF batten cover all around cotner.
6:What is procurement procedure?
Firstly, seng us the shop drawing (if the shop drawings is not available ,you can tell us the height from false ceiling to finfshed floor and width from wall to wall)
Secondly, we offer you the movable wall layout drawings for your confirmation.
Thirdly, we quote the movable wall in acordance with confirmed drawings.
