|Product Name:||Folding Partition Wall||Thickness:||85 Mm|
|Height:||Max 6000 Mm||Width:||750~~1200mm|
|Advantage:||Free Of Floor Track,Soundproof||Function:||Soundproof,Executive Room|
|Surface Treatment:||Melamine,leather||Frame Material:||Aluminium|

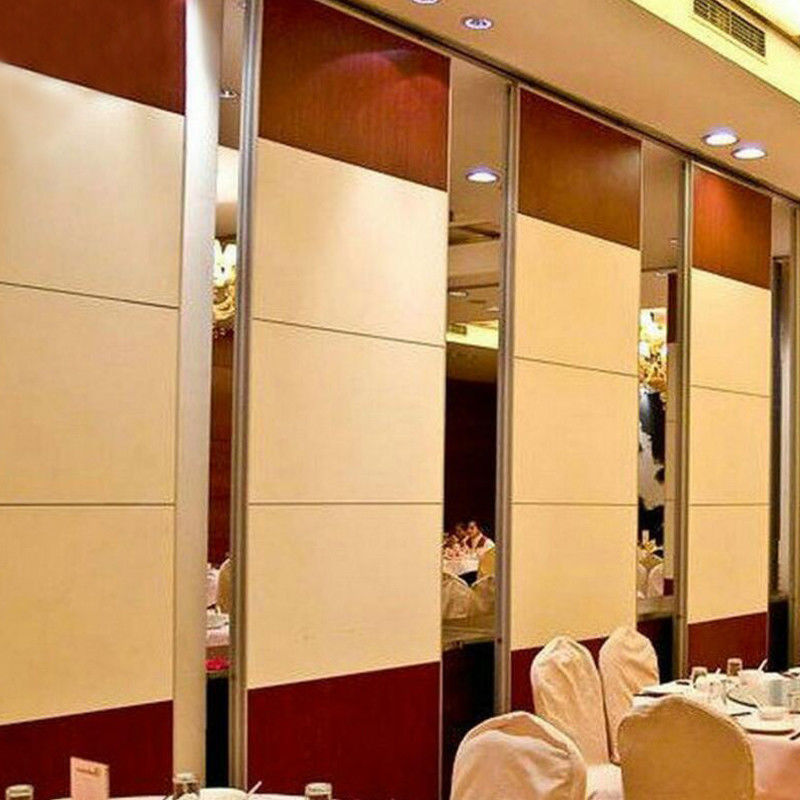

Collapsing Movable MDF Finish Folding Acoustic Partition Walls For Banquet Hall Hotel
|Series||BG 65||BG 85||BG100|
|Panel supension||Top hung only||Top hung only||Top hung only|
|Panel thickness||65 mm||85 mm||100 mm|
|Max height||400 mm||600 mm||800 mm|
|Panel width||600-1230 mm||600-1230 mm||600-1230 mm|
|Face material||9 mm||9 mm||9 mm|
|Pass doors||Single Door or Double Door|
|Sound insulation||20 – 32 db||28 – 36 db||32 – 50 db|
|Finish Material||Plywood / MDF /Laminate / Melamine / Gypsum|
|Board / Fabric / Insulation / Fireproof /Wall Paper /Vinyl /Painting /etc,(Customized)|
Proditions wall description
Sound insulation movable wall is hanging on ceiling , able to right-angle turn 90 degrees freedom to travel, can flexibly to promote to other collection space, can need according to different space use, the interval of the multiple independent small space. he vertical contact of each single partition is connected by concave and convex positions, embedded with sealing tape, and the upper and lower top are equipped with a telescopic sound insulation sealing mechanism. he sound transmission is well considered, which greatly improves the sound insulation seal of the partition.
Partition model has 65 (65mm thick), 85 (85mm thick), 100 (100mm thick), ultra high type, partition datum material has gypsum board, medium fiber board, glass magnesium board, color steel plate, sound-absorbing board, melamine board and other panels to choose from, its structure and frame using 6063-t6 reinforced aluminum alloy production.
Advantages of mobile partition wall
1. Trackless suspension: the floor has no track, just install the track on the ceiling.
2. Stable and safe: the partition is stable and reliable, not easy to swing.
3. Sound insulation environmental protection: sound insulation effect is good, the maximum sound insulation coefficient can reach 53dB.
4. Heat insulation and energy saving: excellent heat insulation performance, divide large space into small space to reduce the power consumption of air conditioning.
5. Efficient fire prevention: made of efficient fireproof materials, with good fireproof performance.
6. Beautiful and generous: the surface can be decorated at will, and the interior decoration effect can be unified.
7 flexible: partition freely, promote flexible, a person can complete the whole process of partition.
8. Convenient collection: when collecting the board, the partition board can be hidden in the special storage cabinet without affecting the overall appearance.
9. Wide application: it can be used in conference hall, exhibition hall, hotel, banquet hall, office and other places.
Professional drawing design
Professional production and installation team
High quality materials and accessories
It offers a three-five year warranty
