Wooden Operable Demountable Movable Partition Walls Max 4 Meter Height ODM
Product Details:
Place of Origin: | China (mainland) |
Brand Name: | EBUNGE |
Model Number: | 65 mm movable partition wall |
Payment & Shipping Terms:
Minimum Order Quantity: | NO MOQ |
---|---|
Price: | US$82-118 per square meter |
Packaging Details: | Carton package, MDF batten on four section sides, foam board on both front face. |
Delivery Time: | 10-20 days |
Payment Terms: | T/T, L/C, D/A, D/P |
Supply Ability: | 5000 Square meter per month |
Detail Information |
|||
Product Nace: | Movable Partition Wall | General Use: | Commercial Furniture |
---|---|---|---|
Color: | Customized | Thickness: | 65mm |
Application: | Office,Commercial Building And Residential House | Height: | Max 4 Meter |
Feature: | Space Saving,Conference Room Divider,soundproof | Advantage: | Free Of Floor Track |
Service: | OEM/ODM | Material: | MDF |
High Light: | movable partitions systems,acoustic movable walls |
Product Description
Accept ODM OEM Soundproof Wooden Sliding Operable Demountable Movable Partition Wall
Product Description
1. The panel structure of double side soundproof panel.
2. Movable Partition Wall thickness: 65mm/85mm/100mm/125mm
3 Profile is 6063-T5 aluminum alloy frame
4. Good efficiency and more convenient in install and after-service
5. With self-guiding device, and can fine-tuning the orbital.
Features & Benefits
Movable, top hung system without the need for a floor track
Retractable top and bottom seals ensure effortless movement of panels
Combines elegance with robust construction
Concealed or exposed panel edge profiles
Numerous panel stacking options for complete flexibility
Sealed for life roller assemblies provide smooth and silent movement
Various color and finish options

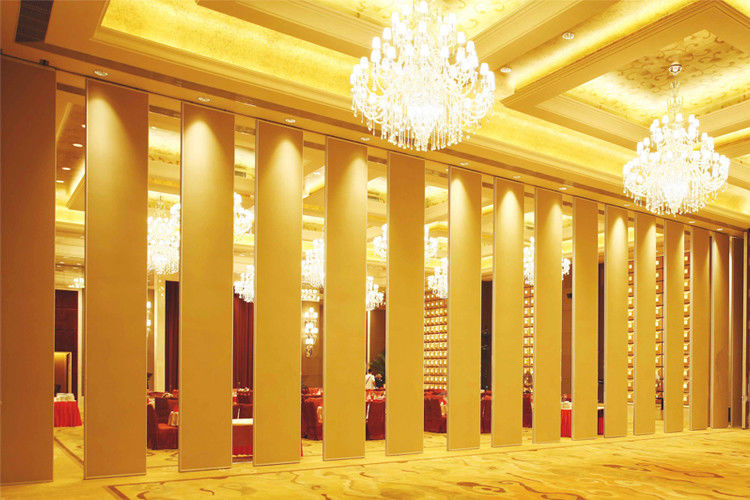

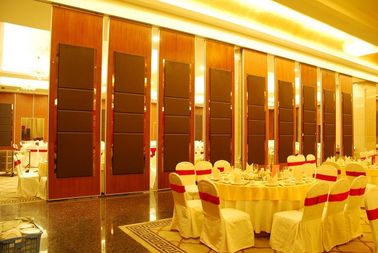

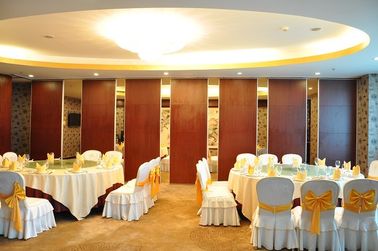

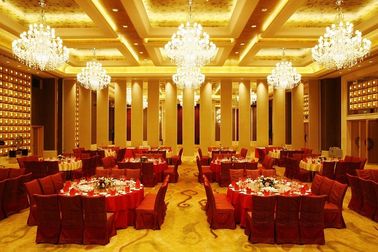

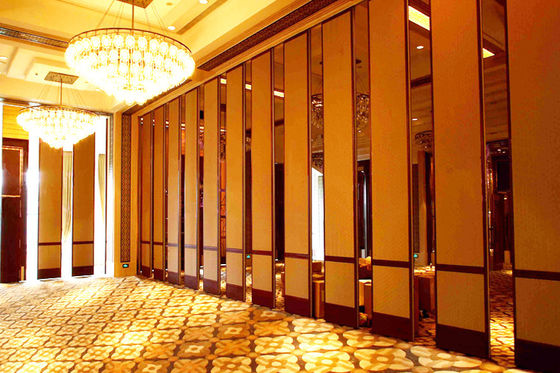

Movable Partition Wall are mainly used in the hotel, banquet hall, meeting room, exhibition hall, conference room, office building, school, hospitals and so on.
Technical Parameter for Partition Panel | Panel Width | 500~1230mm |
Panel height | 2000~4000mm | |
Sound proof | 32~38db | |
Operation | Manual | |
Frame | Aluminum | |
Vertical profile | Anodised aluminum profiles with integrated magnetic strip and sealing edges on the inside | |
Finish options | Fabric, veneer, HPL melamine, vinyl, carpet, customers own material, Bare finish | |
Base options | Plywood, Gypsum, steel, MDF | |
Max width | Unlimited | |
Panel weight | 25-40kg/sq | |
Pass door selection | door | Single or double door |
Seals | Top | Manual |
bottom | Manual |
About the type of movable partition wall
We have 4 types of movable wall , 65type , 85type , 100type and 125 ultra-high type . You can choose the right movable wall upon the Height and Soundproof requirement as following,
65 type— Max height 4m, soundproof: 20dB to 32dB
85 type— Max height:5.5m,Soundproof:30dB to 38dB
100 type— Max height:7m,Soundproof: 35dB to 45dB
125ultra-height — Max height:15m,Soundproof : 35dB to 45dB
About transportation
Sea transport is a common mode of transportation. In an emergency, can be air freight.
About packing
Corrugating paper packaging, MDF batten cover all around corner .The movable wall panel and track, fittings will be packed separately .
