Modern Top Hanging System Sliding Folding Wall / Banquet Hall Partitions

Modern Top Hanging System Sliding Folding Wall / Banquet Hall Partitions

Product Details:

Place of Origin: Guangdong,China
Brand Name: BUNGE
Certification: ISO9001
Model Number: 85 mm acoustic partition walls

Payment & Shipping Terms:

Minimum Order Quantity: 10 square meters
Price: 82 / 135 dollar per square meter
Packaging Details: Carton package, MDF batten on four section sides ,foam board on both front face.
Delivery Time: Shipped in 10 days after payment, based on the quantity.
Payment Terms: D/A, D/P, T/T, L/C, Western Union, MoneyGram
Supply Ability: 5000 square meters per month
Get Best Price Contact Now

Detail Information

Thickness: 85 Mm Material: MDF Board+Aluminium Frame
Height: Less Than 6 M Service: OEM Service
Application: Banquet Hall,hotel,restaurant Panel Style: Modern Style
Open Style: Sliding Surface: Melamine,pu Leather,fabric
High Light:

acoustic operable wall

,

movable acoustic partition walls

Product Description

Modern Top Hanging System Sliding Folding Wall / Banquet Hall Partitions

Aluminium Frame Sliding Folding Wall Acoustic Banquet Hall Partitions



Specification:


Acoustic partition begin each new project by considering the customer's needs. Whatever your requirement we can help to resolve your space management issues. We can assist architects, interior designers, and end users in the innovative use of movable walls to maximise use of space, whether it be conferencing, leisure, educational, healthcare, religious institutions, commercial or domestic situations.



In commercial applications the use of sliding partitions, folding partitions or movable walls can maximise your potential for increased revenue by increasing your available space in a fully flexible way. Our products are designed to make the best possible use of the space you have.


Advantage:


Top hung with no floor track.


Scissor-jack operating mechanism.


Available with virtually any surface finish.


Ideal for conference centres, hotels, offices & schools.


Angled, glazed, corner or junction panels for maximum flexibility.


Single or double point suspension for versatile stacking options.


Panels with hinged pass door, single or double leaf inset pass door panels for access through.


Full maintenance contracts available.

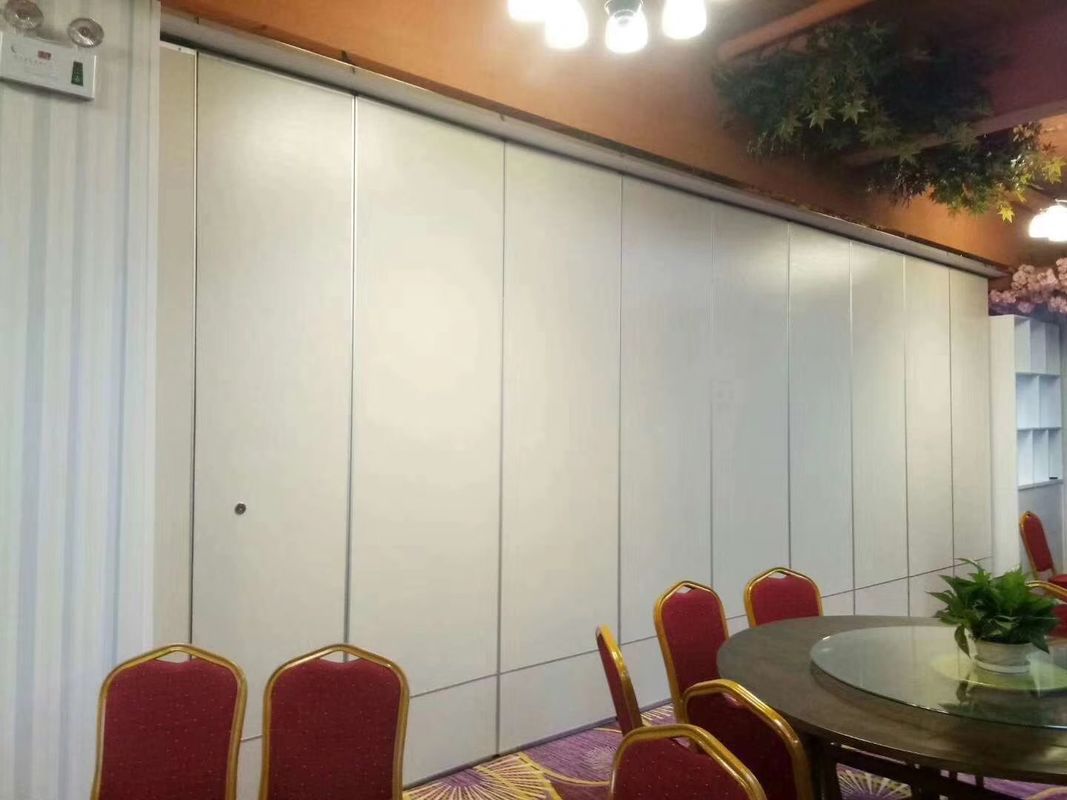

Modern Top Hanging System Sliding Folding Wall / Banquet Hall Partitions 0



Feature:



1. Efficient fire prevention: the material of the movable partition is made of fireproof material and has good fireproof performance;



2.Heat insulation: according to different occupancy rates, the space can be divided into small spaces, and good thermal insulation performance;



3.Sound insulation and environmental protection: its sound insulation coefficient can reach 53dB, sound insulation effect is good;



4.Stable and safe: stable and reliable, not easy to swing, shake;



5.No rail suspension: no need to install the ground rail on the floor, its track is installed on the ceiling.


Installing:



1. Remember that the track should be loose enough above all the brackets to ensure that the track is paused;



2. After the track of the movable partition is laid, tighten the connection of all the tracks and adjust the horizontal level of the track correctly. The direction of the track installation must also be horizontal and straight;



3. When the track facility is installed, the sound insulation and mineral wool are the necessary plates for installation;



4. Before closing the movable partition, the height of the carrier must be adjusted, and the straight angle of the track should be checked to make the track partition work well;



5. Check all active partitions, whether they are all vertical, if there is no damage, you can enter the edge of the aluminum frame of the rubber seal vertically and not bend;



If the orbital direction is horizontal, but the active partition is suspended, then the carrier height must be adjusted.

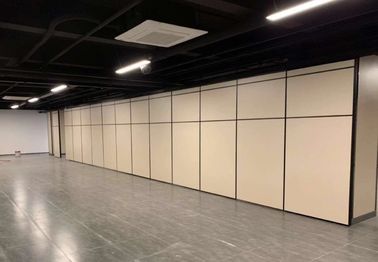

Modern Top Hanging System Sliding Folding Wall / Banquet Hall Partitions 1



Introduction:



The acoustic partition wall is our individual panel partition system offering an acoustic insulation rating of up to 53 dB.
Ideally suited for high specification applications due to the sheer flexibility, numerous stacking arrangements available and the impressive acoustic qualities this system offers.



The panels are operated by means of an internal scissor-jack mechanism and move effortlessly along an aluminium head track, when closed they form a secure fixed wall.



Technical Information:



Series BG65 BG85 BG100
Panel suspension Top hung only Top hung only Top hung only
Panel thickness 65 mm 85 mm 100 mm
Max height 4000 mm 6000 mm 18000 mm
Panel width 500-1200 mm 500-1200 mm 500-1200 mm
Face material 9 mm 9 mm 12 mm
Pass doors Single door or Double door
Sound insulation 20-32dB Rw 28-36dB Rw 32-50dB Rw
Finish Material Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc.


Our service:


1. Profession--We have professional sales staff. Any questions will be replied within 24 hours.


2. Price--Because we are factory , so we can provide higher quality and lower price products.


3 . Service--Easy and convenient to transport,we promise timely delivery date, and good after-sale service.


4. Team--We have our own engineering department, according to your request for your tailor-made for your product.
