Banquet Hall Acoustic Wooden Collapsible Partition Walls With Double Pass Door

Banquet Hall Acoustic Wooden Collapsible Partition Walls With Double Pass Door

Product Details:

Place of Origin: Guangdong,China
Brand Name: BUNGE
Model Number: 85 Series

Payment & Shipping Terms:

Minimum Order Quantity: No MOQ
Price: USD 80-90 Square meters
Packaging Details: Partition board paper packaging, and finally packed in wooden carton
Delivery Time: 15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000 Square meters per month
Get Best Price Contact Now

Detail Information

Product Name: Banquet Hall Partitions Wall Material: Aluminum Frame
Finish: Melamine Style: Morden
Color: Customized Application: Banquet Hall
Advantage: Soundproof Usage: Divider Room
Thickness: 85 Mm Height: Max 6000 Mm
Width: 1200 Mm
High Light:

soundproof folding partition

,

folding room partitions

Product Description

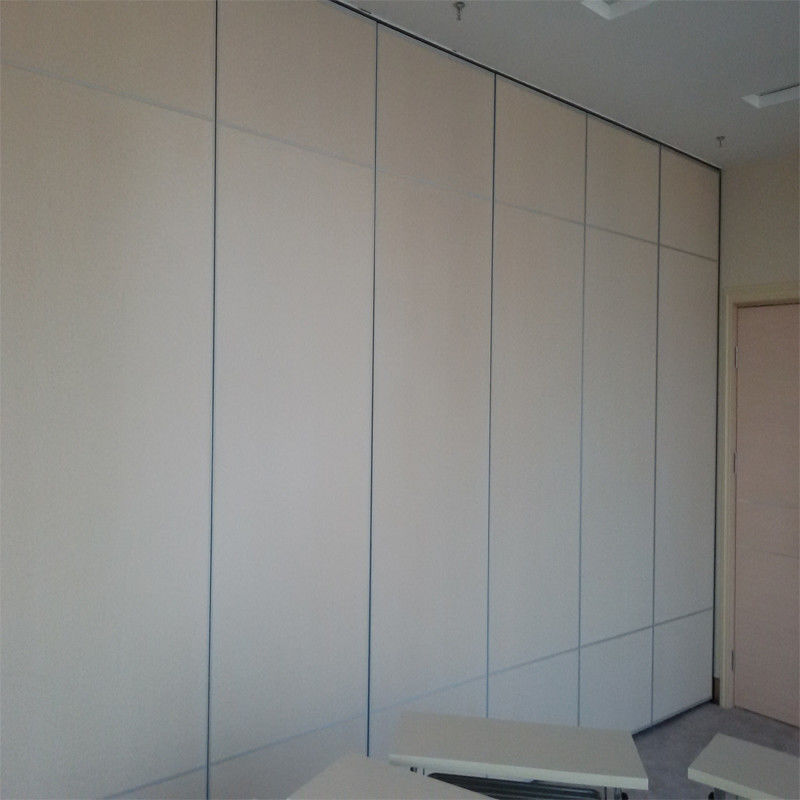

Banquet Hall Acoustic Movable Wooden Collapsible Partition Walls With Double Pass Door

Modernized Soundproof Movable partition
1.Hanging on ceiling The floor without a track, just put the rail mounted on the ceiling
2.Excellent Quality Each pieces of partition can turn around 360 degree.
3.Stable and secure After partition is stable and reliable, and is not easy to swing
4.Energy efficient The large space divided into a small space, in order to reduce air conditioning power consumption;
5.Heatproof&fireproof Good heat insulation performance, Adopt effective fire prevention materials
6.Elegant appearance Surface any adornment, can unite with indoor adornment effect
7.Easy to collect Can be hidden in the special coffer, does not affect the overall appearance
8.Various applications Hotels, exhibition halls, restaurants, multi-functional rooms etc.



Banquet Hall Acoustic Wooden Collapsible Partition Walls With Double Pass Door 0



Partition detail analysis

1: Anti-skid groove is added in the single-wheel track, so that the lifting wheel can still slide smoothly under the condition of side deviation

2: Double wheel bearing 300KG

3: Rail multi-angle bevel cutting surface, no cracking using German imports inch industrial grade aluminum cutting machine cutting.45 90 180 bevel section, seamless joint using low-frequency modulation pulse MIG welding technology, no cracking.

4: Imported bearing, high speed, stable and smooth



Banquet Hall Acoustic Wooden Collapsible Partition Walls With Double Pass Door 1



Installation site of partition wall

1: Installation track

Track is the base, is the priority among priorities of all links, through percussion drilling expansion screws, welding Angle iron and other steel materials fixed up.

2: Insert the door panel

The moving door panels are suspended in the rails without any support on the ground.

3: Installation and debugging

Free and flexible, move the door panels according to whatever you need to change the layout

4: Close against the wall

Convenient collection, save space



Banquet Hall Acoustic Wooden Collapsible Partition Walls With Double Pass Door 2



Finish

We can supply any surface material according to customer's requirement, including melamine board, decorative panel, MDF (density board) plywood, wallpaper, fabric, leather, fireproof board and decorative paint, etc



Banquet Hall Acoustic Wooden Collapsible Partition Walls With Double Pass Door 3



Our services

Professional drawing design

Professional production and installation team

High quality materials and accessories

It offers a three-year warranty



Banquet Hall Acoustic Wooden Collapsible Partition Walls With Double Pass Door 4



Mobile partition has the following characteristics

A. Sound insulation: each wallboard is fixed with A rocker and can be retractable up and down. The edge of the partition board is equipped with special sound insulation cover rubber.The concave and convex coordination between wallboard and wallboard ensures the coherence of each wallboard after it is expanded, effectively prevents the transmission of sound waves, and achieves the effect of sound insulation and heat insulation.

B. Multi-orientation: the hoisting system adopts universal pulley (steel type, nylon mute type), which can facilitate the delivery of each piece of wallboard to any position, and provide the design scheme of track direction and storage space according to customer requirements.

C. Stability: internal steel structure, aluminum frame, with telescopic system, ensuring durability and stability.

D. Integrity: no track is set on the ground, which ensures the integrity of the decorative style.
