Decorative Sound Proof Movable Partition Walls No Floor Track Multi Color
Product Details:
| Place of Origin: | China (mainland) |
| Brand Name: | BUNGE |
| Model Number: | 65 mm movable partition wall |
Payment & Shipping Terms:
| Minimum Order Quantity: | NO MOQ |
|---|---|
| Price: | US$82-118 per square meter |
| Packaging Details: | Carton package, MDF batten on four section sides, foam board on both front face. |
| Delivery Time: | 10-20 days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 5000 |
|
Detail Information |
|||
| General Use: | Commercial Furniture | Material: | MDF |
|---|---|---|---|
| Color: | Customized | Thickness: | 65mm |
| Application: | Office,Commercial Building And Residential House | Height: | Max 4 Meter |
| Feature: | Space Saving,Conference Room Divider,soundproof | Advantage: | Free Of Floor Track |
| Service: | OEM/ODM | ||
| High Light: | movable walls on wheels,movable partitions systems |
||
Product Description

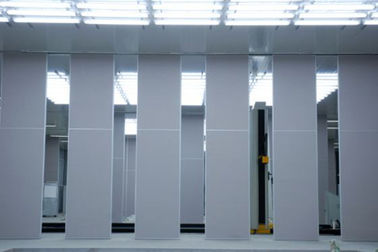

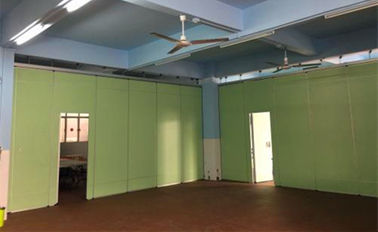

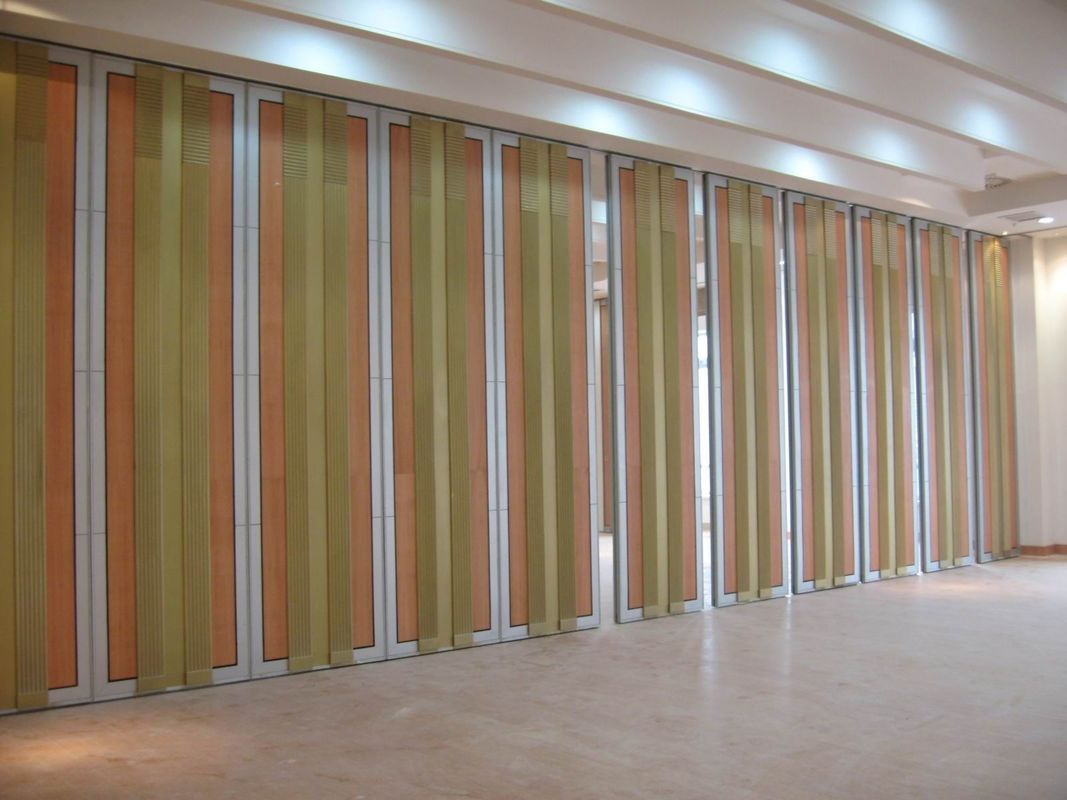

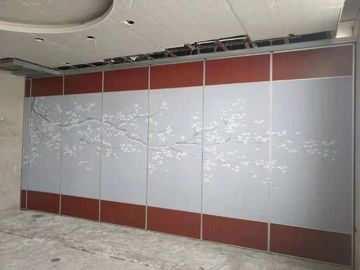

No floor track design multi color decorative soundproof movable partition wall
Product Description
Bunge movable wall partition is made of high quality Anodized Aluminum frame with composite materials.
the panel has a standard thickness of 65mm/85mm/100mm and a width up to 1200mm.Maximum height
can reach 12000mm ( type 100) tall. its vertical seal. together with the horizontal top and bottom retractable
seals provide excellent acoustic insulation property of maximum STC-(32~55) in laboratory setting. Its excellent
acoustic insulation property and maximum reach allow it to be used in demanding locations such as function
rooms in starred hotels and convention centers.The panels move on a ceiling track with no requirement of floor
guides or rails.The movable partitions consist of a series of interlocking flat panels and the fast set retractable top
and bottom seals provide the easiest in-field operation - a simple half-turn of the waist high removable handle
extends or retracts the sound seals.
Features ＆ Benefits
Top hung supported
Wide range of surface finishes
Individual panels that can be stored away for maximum space usage
Robust aluminum frame construction for demanding environments
Hinged pair panels for quick operation
Operable top and bottom seals for effortless operation
| Technical Parameter for Partition Panel | Panel Width | 500~1230mm |
| Panel height | 2000~4000mm | |
| Sound proof | 32~38db | |
| Operation | Manual | |
| Frame | Aluminum | |
| Vertical profile | Anodised aluminum profiles with integrated magnetic strip and sealing edges on the inside | |
| Finish options | Fabric, veneer, HPL melamine, vinyl, carpet, customers own material, Bare finish | |
| Base options | Plywood, Gypsum, steel, MDF | |
| Max width | Unlimited | |
| Panel weight | 25-40kg/sq | |
| Pass door selection | door | Single or double door |
| Seals | Top | Manual |
| bottom | Manual |
Operation:
Partitions shall be top supported, manually operated panels stacked in an area nominated in the plans.
When closed, the operable wall shall provide a complete sound retardant barrier. No floor track shall be used.
Track:
The tracks are made from extruded 6063 – T6 anodized aluminum. The track housing shall utilize grooves
and interlocking steel pins for positive alignment of adjacent track sections, and shall be reinforced overhead
by drop rod brackets. Aluminum track housing shall include an integral nut slot to accept a hardened square
nut for attaching each drop rod bracket to the top of the track.
Trolley:
BUNGE Centre/ Side /Remote stacking system with a Two wheeled nylon trolley made with the base Material
of POM 45 tempered steel shall be used as per approved stacking method.
The movable partitions consist of a series of concave/convex profile interlocking flat panels and the
fast set retractable top and bottom seals ,its provide excellent acoustic insulation property of from
STC-32 to 53 in laboratory setting . Its high performance per dollar value and the easiest in-field
operation makes it very suitable for restaurant , schools , office , religion , hospitals , shopping arcades
and many other indoor applications product.
