|General Use:||Soundproof Partition Walls Are Used For Interior Decoration||Material:||MDF|
|Height:||Max 6 Meter||Width:||500-1228mm|
|Feature:||Space Saving,soundproof||Advantage:||Free Of Floor Track|

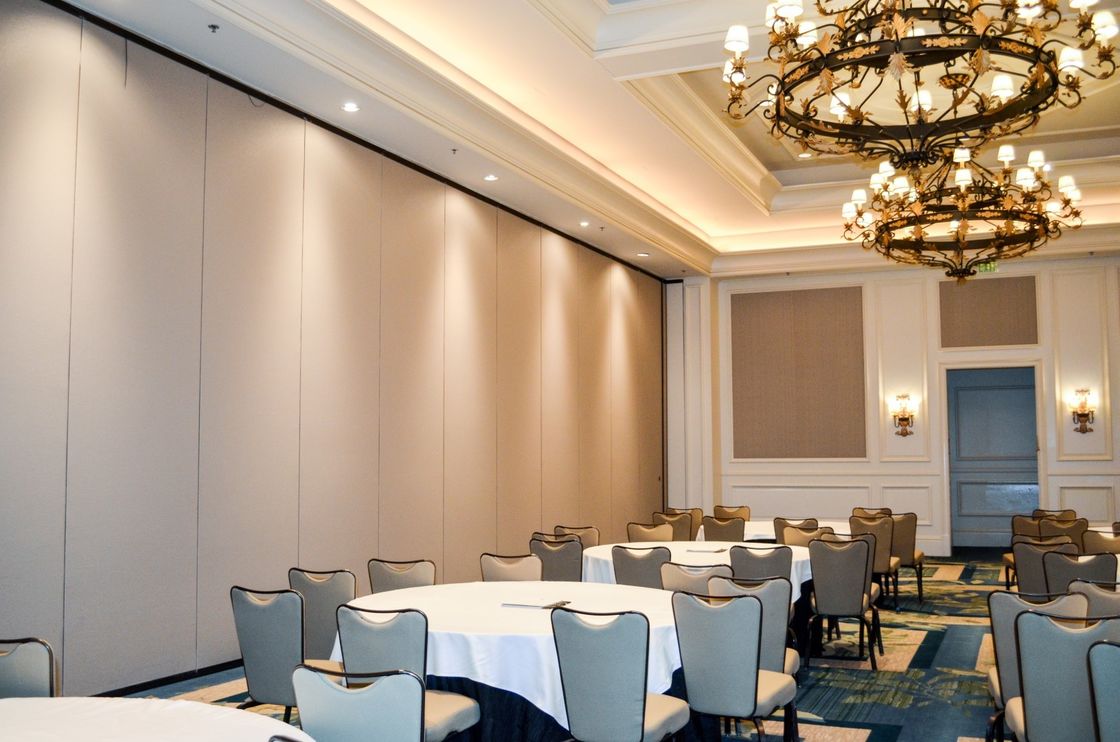

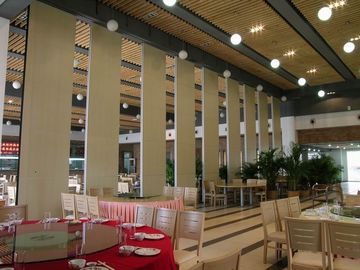

Bunge 85mm movable partition wall divide your space flexibly with high sound insulation performance.no need floor track,top hung system.. Its magnetic strips are set on the adjacent panels edges ,they will attracted by each other automaticly when they are close enough,have good seal and acoustic performance,each panel limit weight is 450KG,top and bottom telescopic range are 22.5MM.
|Panel suspension||Top hung only|
|Sound insulation||20-32db RW||30-38db RW||35-45db RW|
|Weight||20-30 kg/sq M||22-35kg/sq M||28-40kg/sq M|
|Track system||Single or two point|
|Frame construction||Aluminum frame|
|Finish materials||Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized)|
1, movable partitions can be moved, folded, fixed, and rotated, space can be flexibly divided
2, the ground has no track, so that it don’t destroy the overall decoration effect
3, each partition can be fixed independently, so that it will not swing
4, can choose fireproof material production, it has good fire performance
5, when collecting, the partition can be hidden in the special storage room
A professional design service
Survey and installation guide
Using top quality materials and components
A fully experienced work team
Maintenance contracts to ensure your valuable asset remains in full work order.
Operation:Partitions shall be top supported, manually operated panels stacked in an area nominated in the plans. When closed, the operable wall shall provide a complete sound retardant barrier. No floor track shall be used.
Track: The tracks are made from extruded 6063 – T6 anodized aluminum. The track housing shall utilize grooves and interlocking steel pins for positive alignment of adjacent track sections, and shall be reinforced overhead by drop rod brackets. Aluminum track housing shall include an integral nut slot to accept a hardened square nut for attaching each drop rod bracket to the top of the track.
Trolley: BUNGE Centre/ Side /Remote stacking system with a Two wheeled nylon trolley made with the base Material of POM 45 tempered steel shall be used as per approved stacking method.
Aluminum trim: The panel trims will be standard series with exposed Aluminum trims of 15mm thickness finished in 6063 – T6 Anodized Aluminum shall be used.
The Panels will be made from 9mm MDF boards and shall be 65mm thick and 1230mm maximum width, made to the appropriate acoustic rating and structural backing and mounted in full perimeter extruded aluminum frames with interlocking corner construction . The panel faces shall be finished with selected material.
Basic Panels shall be equal in module.
Approx. Weight kg/ square meter : 25 kg
Maximum height : 4000mm.
